Stop Light: Notes

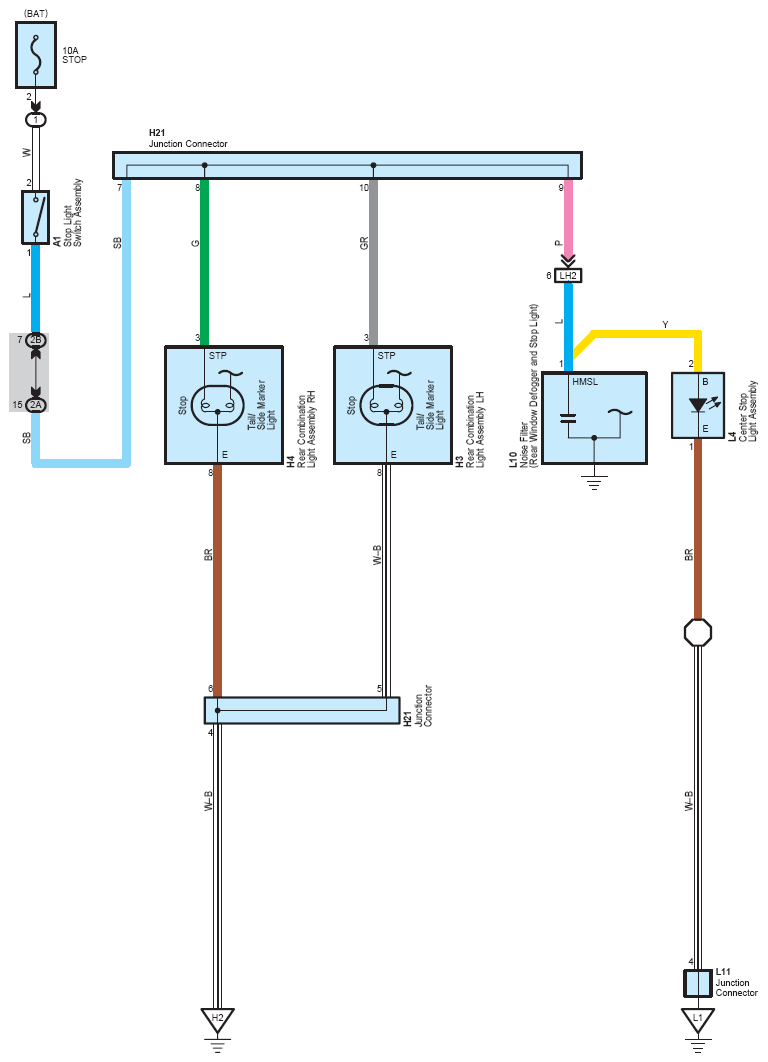

Fig 1: Stop Light - Wiring Diagram

G08775100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
