Parts Location: Illustration

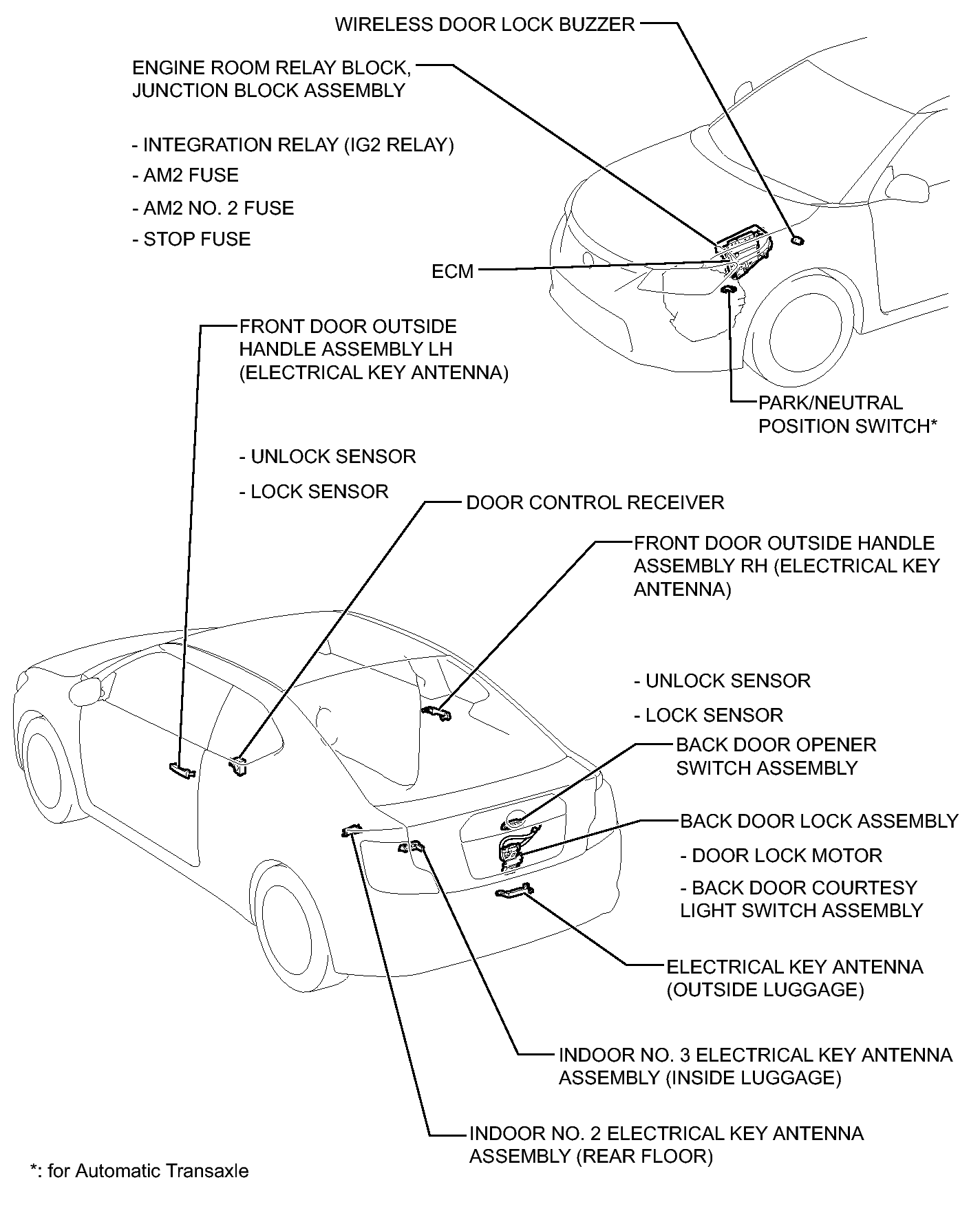

Fig 1: Identifying Smart Key System Components Location (For Start Function) (1 Of 3)
GTY390534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

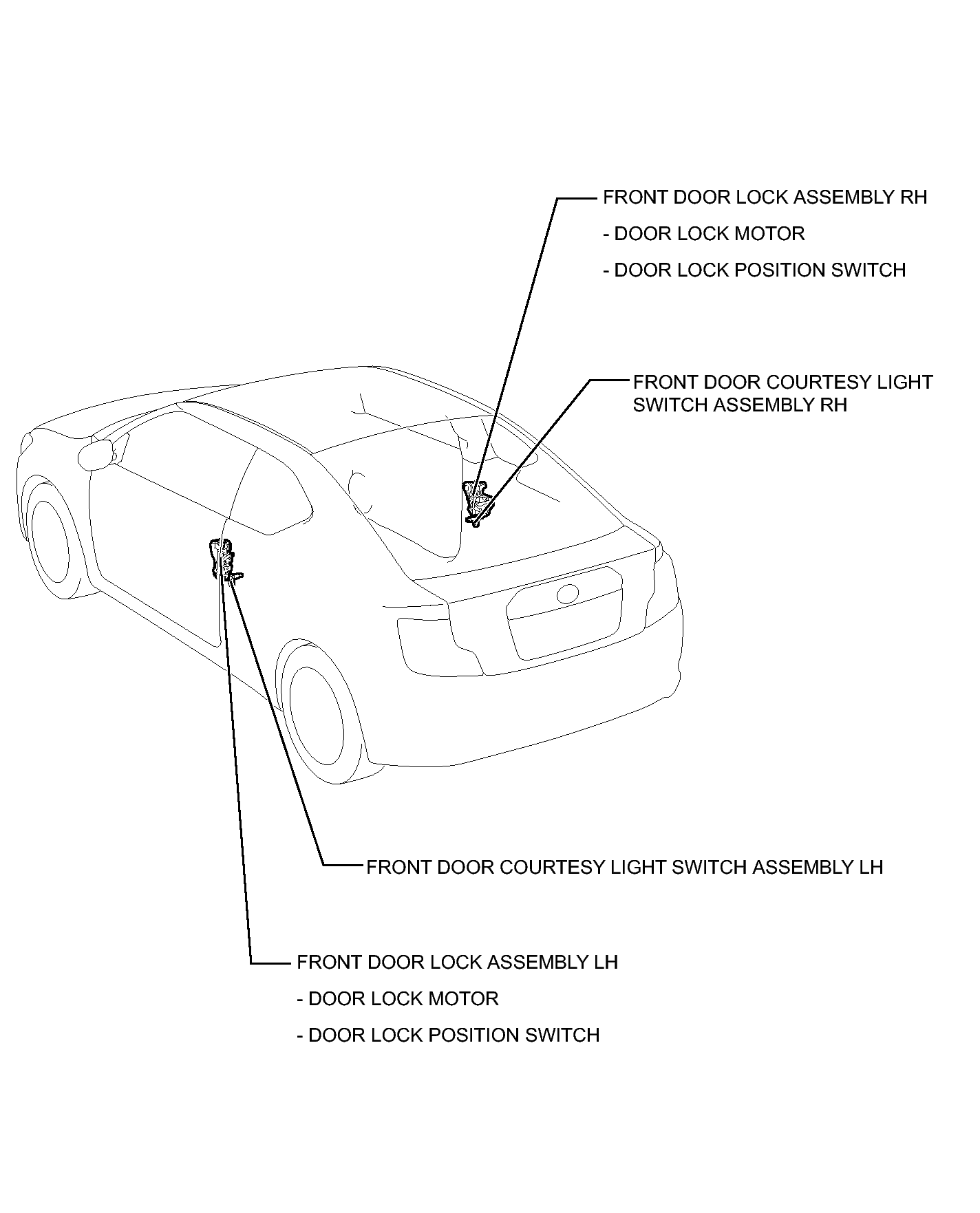

Fig 1: Identifying Smart Key System Components Location (For Start Function) (2 Of 3)
GTY313371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

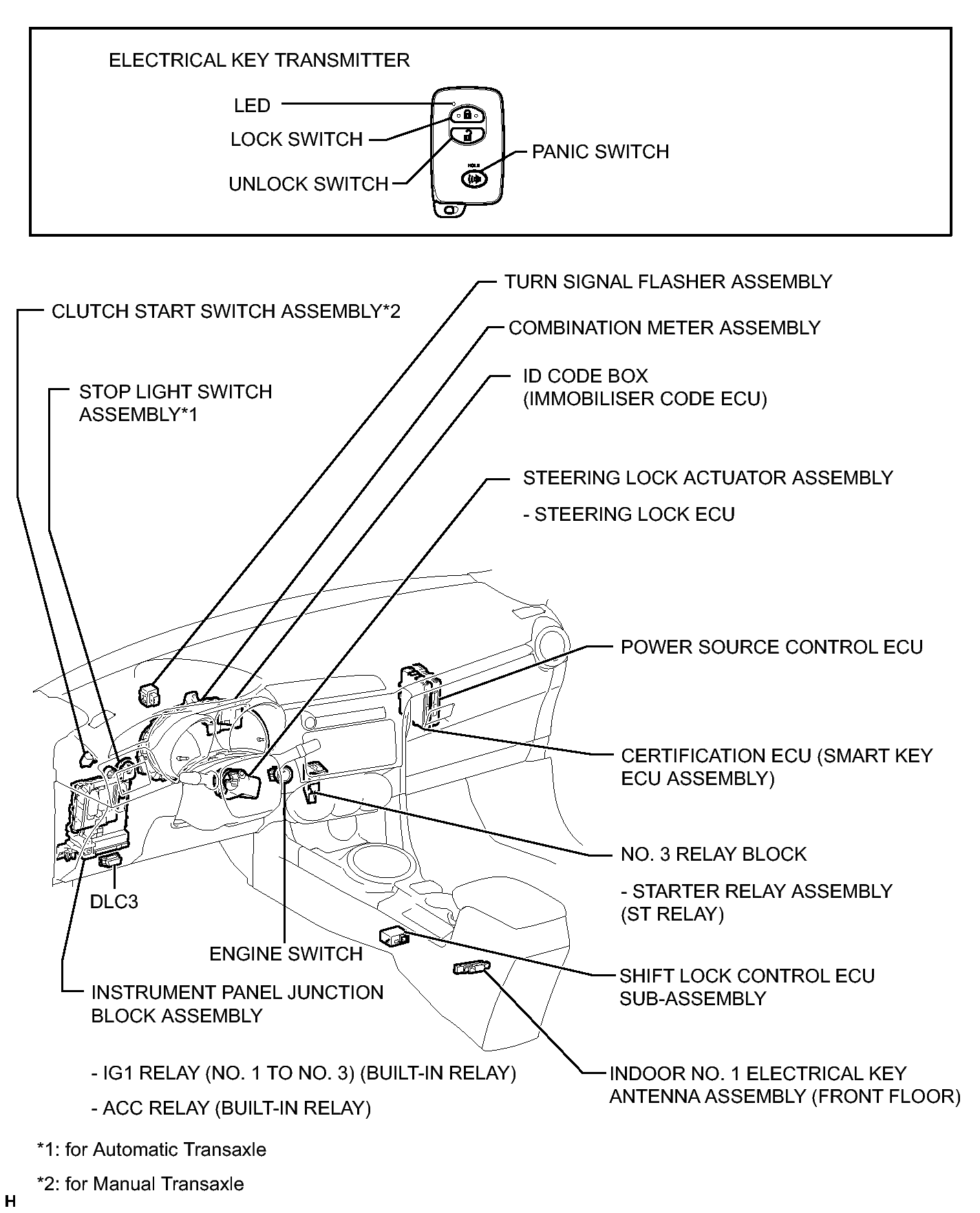

Fig 1: Identifying Smart Key System Components Location (For Start Function) (3 Of 3)
GTY310117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
