System Diagram

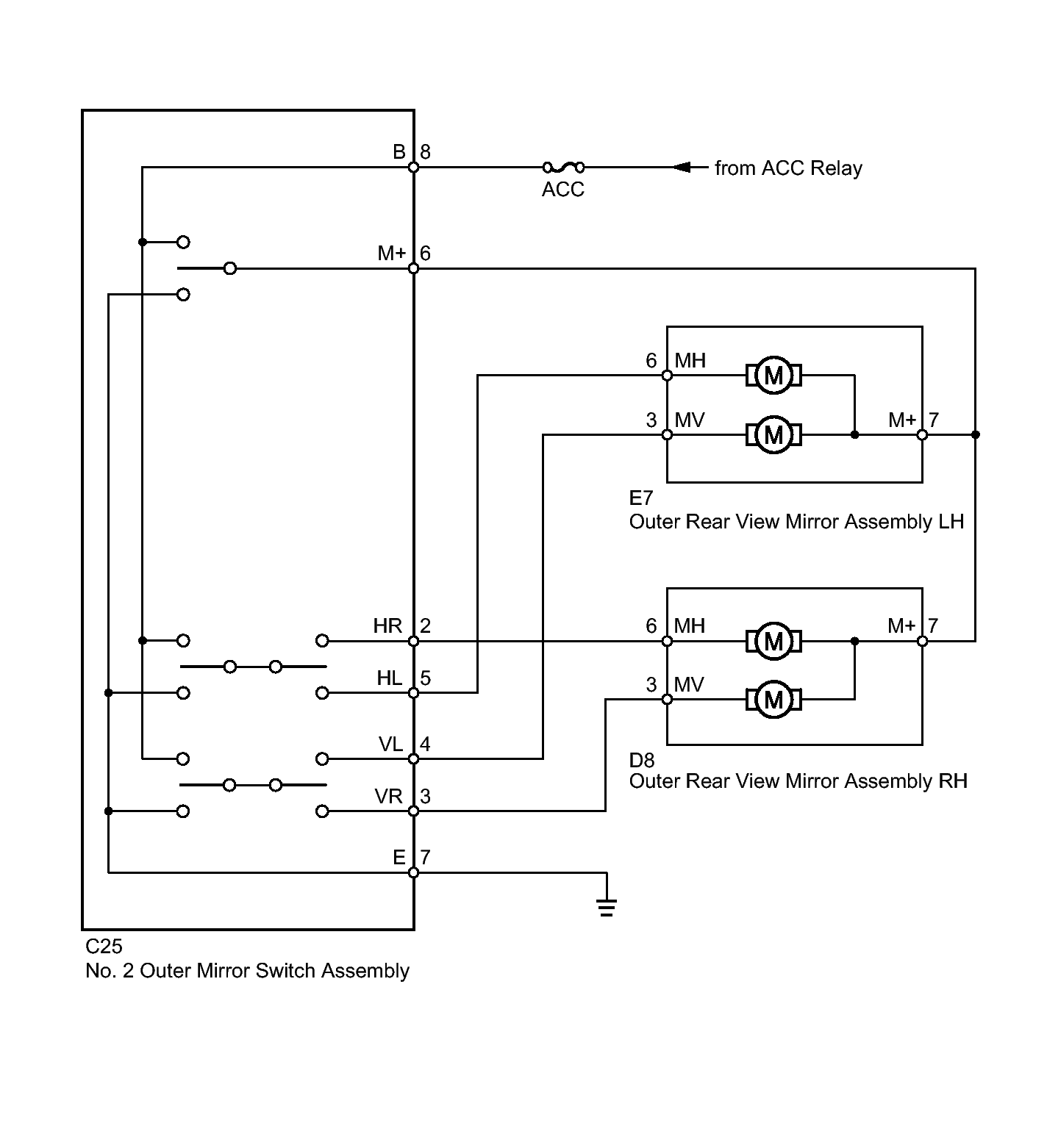

Fig 1: Power Mirror System Wiring Diagram
GTY312618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

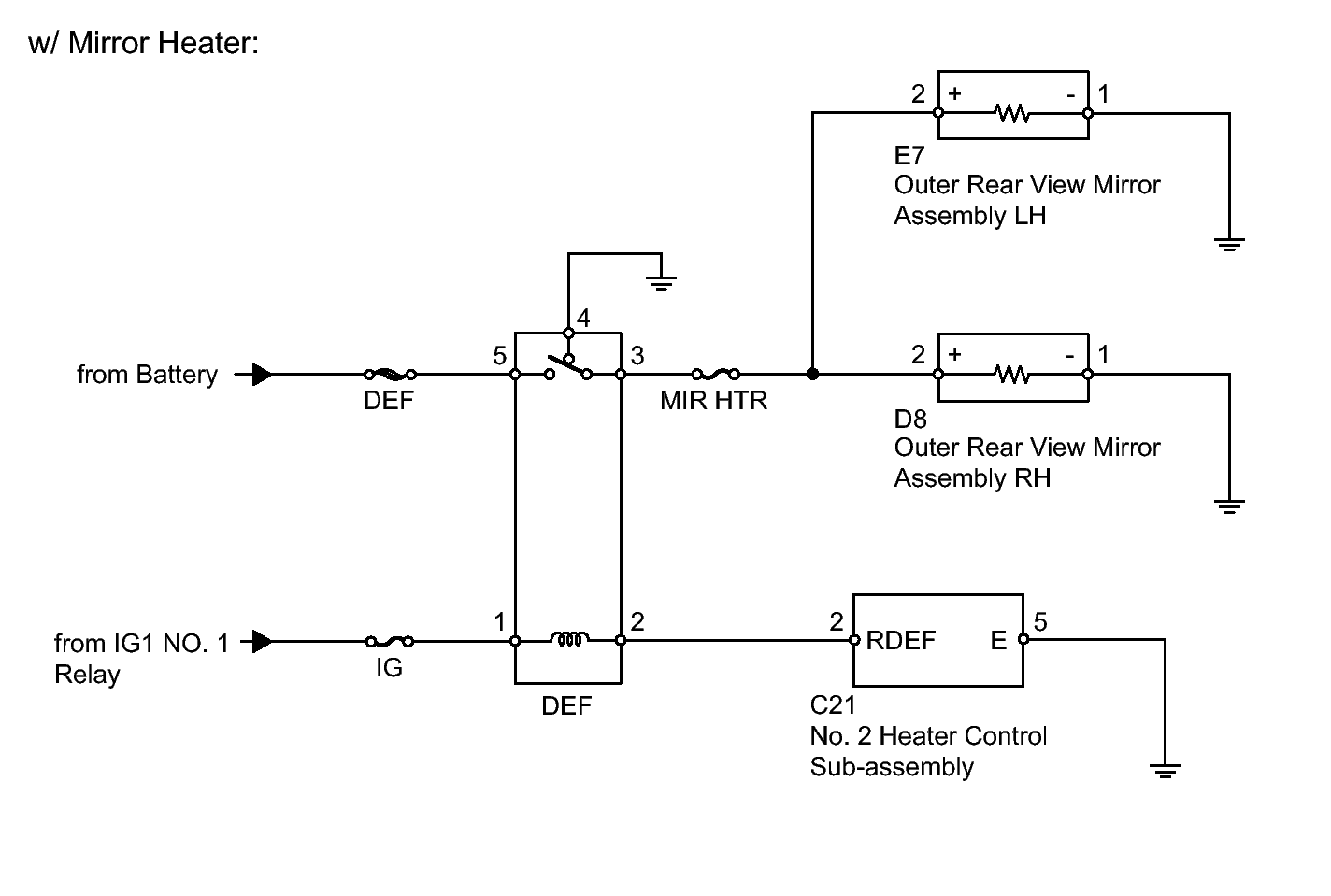

Fig 2: Power Mirror System Wiring Diagram W/Mirror Heater
GTY313258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
