Windshield Glass: Installation: Installation

  1. INSTALL NO. 2 WINDSHIELD GLASS STOPPER (for 2-piece Type)
    1. Using a brush or sponge, coat the application area of the No. 2 windshield glass stoppers with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area that is not specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install 2 new No. 2 windshield glass stoppers to the windshield glass as shown in the illustration.
      Fig 1: Installing No. 2 Windshield Glass Stoppers To The Windshield Glass
      GTY311604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Ceramic Notch - -
      *a Backside - -

      Standard Dimension

      Area Dimension
      a 40.0 mm (1.57 in.)
      b 7.7 mm (0.303 in.)

      HINT:

      Only 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.

  2. INSTALL NO. 1 WINDSHIELD GLASS STOPPER (for 2-piece Type)
    1. Install 2 new No. 1 windshield glass stoppers to the vehicle body.

      HINT:

      Only 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.

  3. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Using a brush or sponge, coat the application area of a new windshield glass adhesive dam with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.
      • Install the new adhesive dam along the ceramic notches.

      HINT:

      If an area that is not specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install the adhesive dam to the windshield glass as shown in the illustration.

      HINT:

      Position one end of the adhesive dam in place as shown in the illustration, install the dam to the glass, and then cut it so that it is the appropriate size.

      Fig 2: Installing Adhesive Dam To The Glass
      GTY310506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Ceramic Notch - -
      *a Backside - -

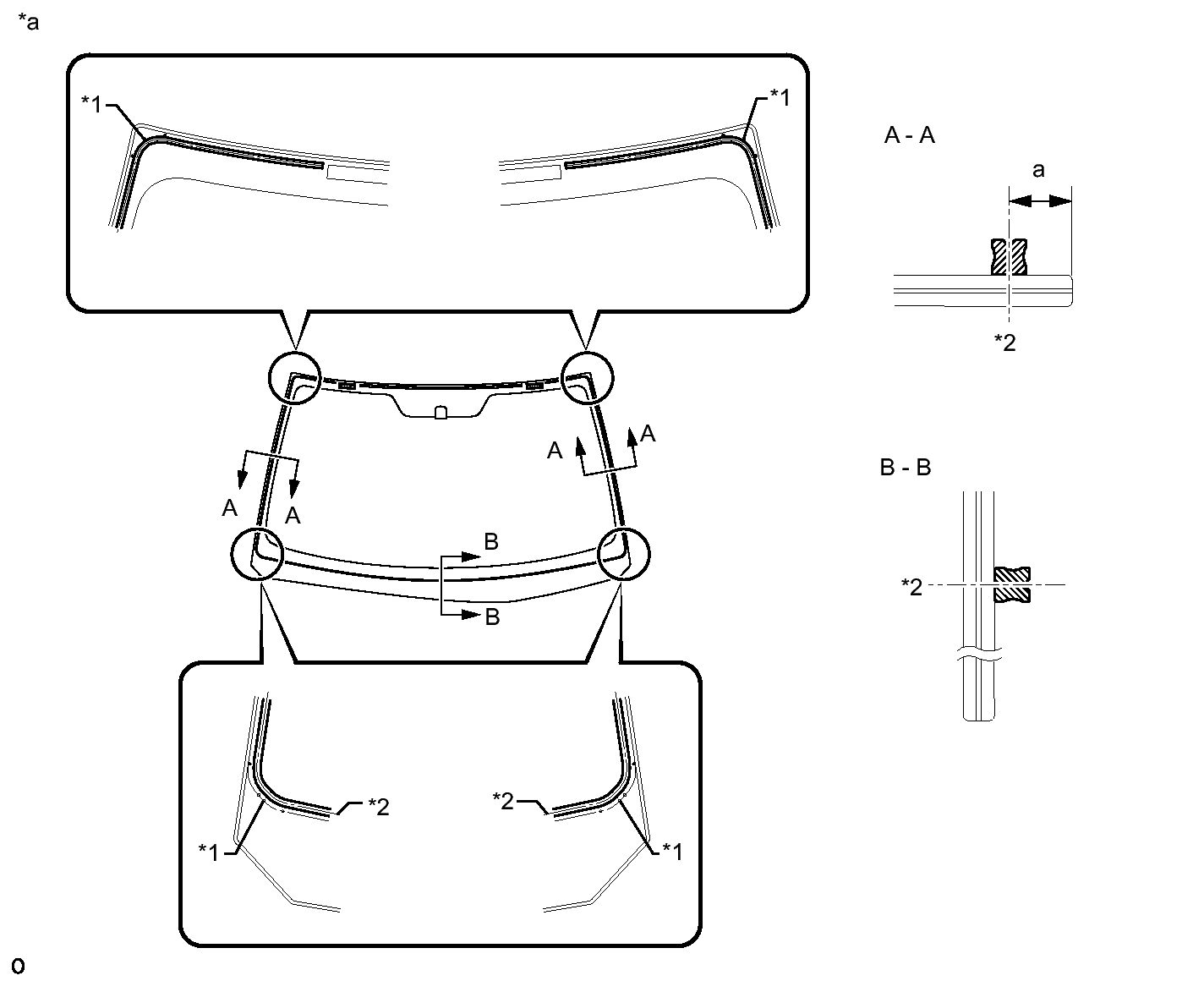

      Fig 3: Identifying Adhesive Dam Position
      GTY310252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Ceramic Notch *2 Dam Center Line
      *a Backside - -

      Standard Dimension

      Area Dimension
      a 9.6 mm (0.378 in.)
      NOTE:

      Install the new adhesive dam along the dam reference line.

  4. INSTALL WINDSHIELD GLASS
    1. Position the glass.
      Fig 4: Identifying Matchmarks
      GTY312435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Matchmark
      1. Using suction cups, place the glass in the correct position.
      2. Check that the whole contact surface of the glass rim is perfectly even.
      3. Place reference marks between the glass and vehicle body.
        NOTE:

        Check that the stoppers are attached to the vehicle body correctly.

        HINT:

        When reusing the glass, check and correct the reference mark positions.

      4. Remove the glass.
    2. Using a brush, coat the exposed part of the vehicle body with Primer M.
      Fig 5: Applying Primer M To Vehicle Body
      GTY310699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Brush
      *2 Primer M
      *3 Adhesive
      *a CORRECT
      *b INCORRECT
      NOTE:
      • Do not coat the adhesive with Primer M.
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer M for later use.

      HINT:

      If an area that is not specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    3. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      Fig 6: Applying Primer G Position
      GTY310397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adhesive Center Line *2 Primer G
      *a Backside - -

      Standard Dimension

      Area Dimension
      a 3.0 mm (0.118 in.)
      b 8.0 mm (0.315 in.)
      c 7.0 mm (0.276 in.)
      d 4.0 mm (0.157 in.)
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      • Apply Primer G to the ceramic notches.
      • If an area that is not specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.
    4. Apply adhesive to the glass.

      Adhesive

      Toyota Genuine Windshield Glass Adhesive or equivalent

      1. Cut off the tip of a cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time described in the table below.

        Usage Time Frame

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour and 40 minutes
        5°C (41°F) 8 hours
      2. Load a sealer gun with the cartridge.
      3. Coat the glass with adhesive as shown in the illustration.

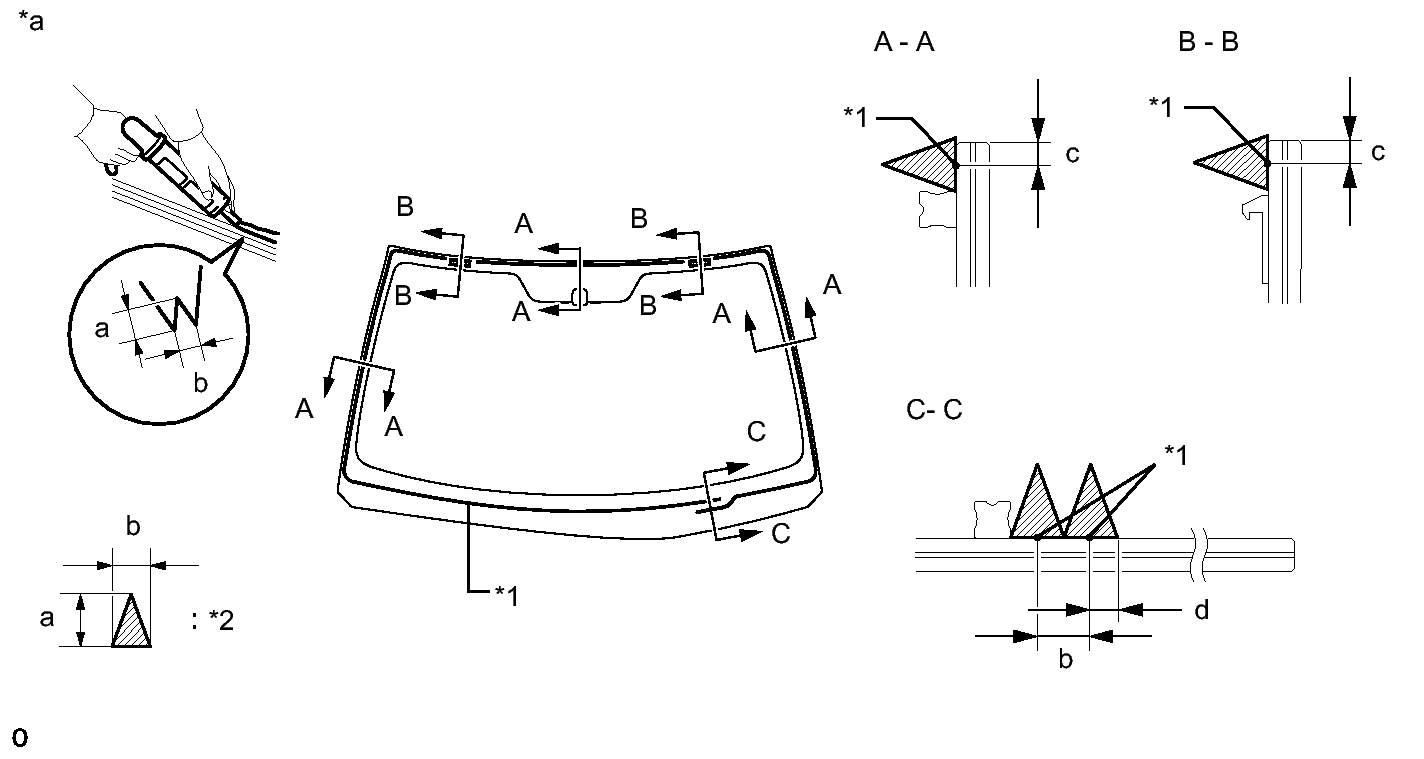

        Fig 7: Applying Adhesive to Glass
        GTY314100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Adhesive Center Line *2 Adhesive
        *a Backside - -

        Standard Dimension

        Area Dimension
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)
        c 3.0 mm (0.118 in.)
        d 4.0 mm (0.157 in.)
    5. Install the glass.
      1. Using suction cups, position the glass so that the reference marks are aligned and press it in gently along the rim.
        Fig 8: Installing Windshield Glass
        GTY311845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Matchmark
        NOTE:
        • Allow the primer coating to dry for 3 minutes or more.
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and glass.
      2. Lightly press the front surface of the glass to ensure a close fit.

        HINT:

        Press the glass with a force of 98 N (10 kgf, 22 lbf) or more.

      3. Apply non-residue solvent to a clean cloth and wipe off any excess or protruding adhesive.
        Fig 9: View Of Removing Any Excess Or Protruding Adhesive
        GTY285455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Apply adhesive to any areas where the amount of adhesive is inadequate.

        TEXT IN ILLUSTRATION

        *1 Windshield
        *2 Dam
        *3 Adhesive
  5. INSTALL WINDSHIELD OUTSIDE MOULDING
    1. Using a brush or sponge, coat the application area of a new windshield outside moulding with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area that is not specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new windshield outside moulding as shown in the illustration.
      1. w/ Sliding Roof:
        Fig 10: Removing/Installing Windshield Moulding W/ Sliding Roof
        GTY311563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *A w/ Sliding Roof
        *1 Windshield Glass
        *2 Moulding
        *3 Body
        *4 Sun Roof Glass
        *5 Sun Roof Housing Panel
      2. w/o Sliding Roof:

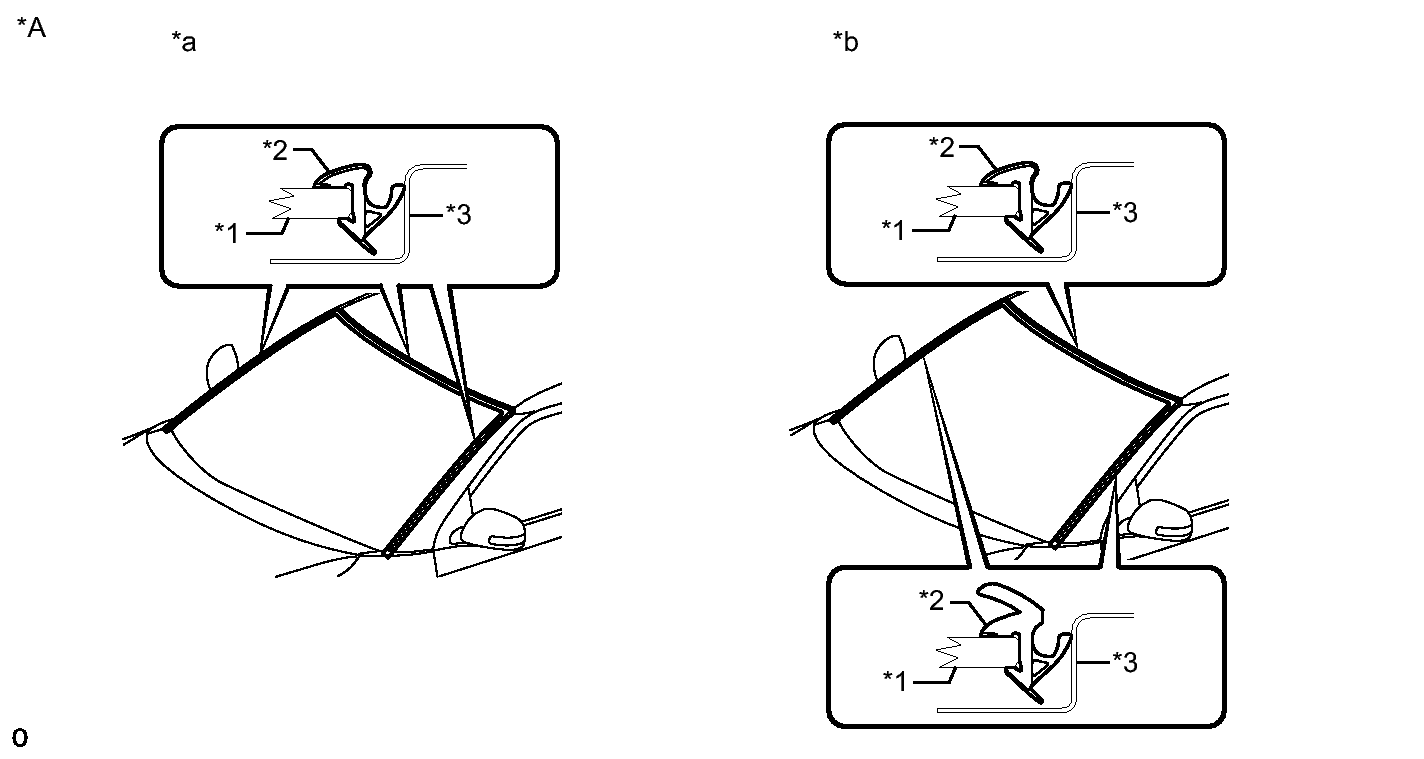

        Fig 11: Removing/Installing Windshield Moulding W/O Sliding Roof
        GTY311217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *A w/o Sliding Roof - -
        *1 Windshield Glass *2 Moulding
        *3 Body - -
        *a for Type A *b for Type B
        NOTE:

        Do not drive the vehicle for the time described in the table below.

        Minimum Time

        Temperature Minimum Time prior to Driving Vehicle
        35°C (95°F) 1 hour and 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
  6. INSPECT FOR LEAK AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with a sealer gun.
  7. INSTALL ROOF HEADLINING ASSEMBLY  . Refer to INSTALLATION - Step 9
  8. INSTALL INNER REAR VIEW MIRROR ASSEMBLY
    1. Install the inner rear view mirror. Refer to INSTALLATION .
  9. INSTALL MAP LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 14
  10. INSTALL ASSIST GRIP ASSEMBLY  . Refer to INSTALLATION - Step 17
  11. INSTALL VISOR HOLDER  . Refer to INSTALLATION - Step 18
  12. INSTALL VISOR ASSEMBLY LH  . Refer to INSTALLATION - Step 19
  13. INSTALL VISOR ASSEMBLY RH  . Refer to INSTALLATION - Step 20
  14. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 34
  15. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 35
  16. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION - Step 38
  17. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION - Step 39
  18. INSTALL NO. 1 ROOF DRIP SIDE FINISH MOULDING CLIP  . Refer to INSTALLATION - Step 1
  19. INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING LH  . Refer to INSTALLATION - Step 2
  20. INSTALL CENTER ROOF DRIP SIDE FINISH MOULDING RH

    HINT:

    Use the same procedure described for the LH side.

  21. INSTALL NO. 2 UPPER COWL REINFORCEMENT COVER LH
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new cover.
      1. Using a heat light, heat the vehicle body and cover.
      2. Remove the peeling paper from the face of the moulding.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Fig 12: Removing/Installing No. 2 Upper Cowl Reinforcement Cover LH
        GTY312414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Move the cover in the direction shown in the illustration to attach the claw.
      5. Attach the claw and 3 clips to install the cover.
  22. INSTALL NO. 2 UPPER COWL REINFORCEMENT COVER RH

    HINT:

    Use the same procedure described for the LH side.

  23. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 4
  24. INSTALL COWL TOP VENTILATOR LOUVER LH  . Refer to INSTALLATION - Step 5
  25. INSTALL HOOD TO COWL TOP SEAL  . Refer to INSTALLATION - Step 6
  26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  27. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 8
  28. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 9
  29. INSTALL WINDSHIELD WIPER ARM COVER  . Refer to INSTALLATION - Step 10
