Combination Meter: Notes

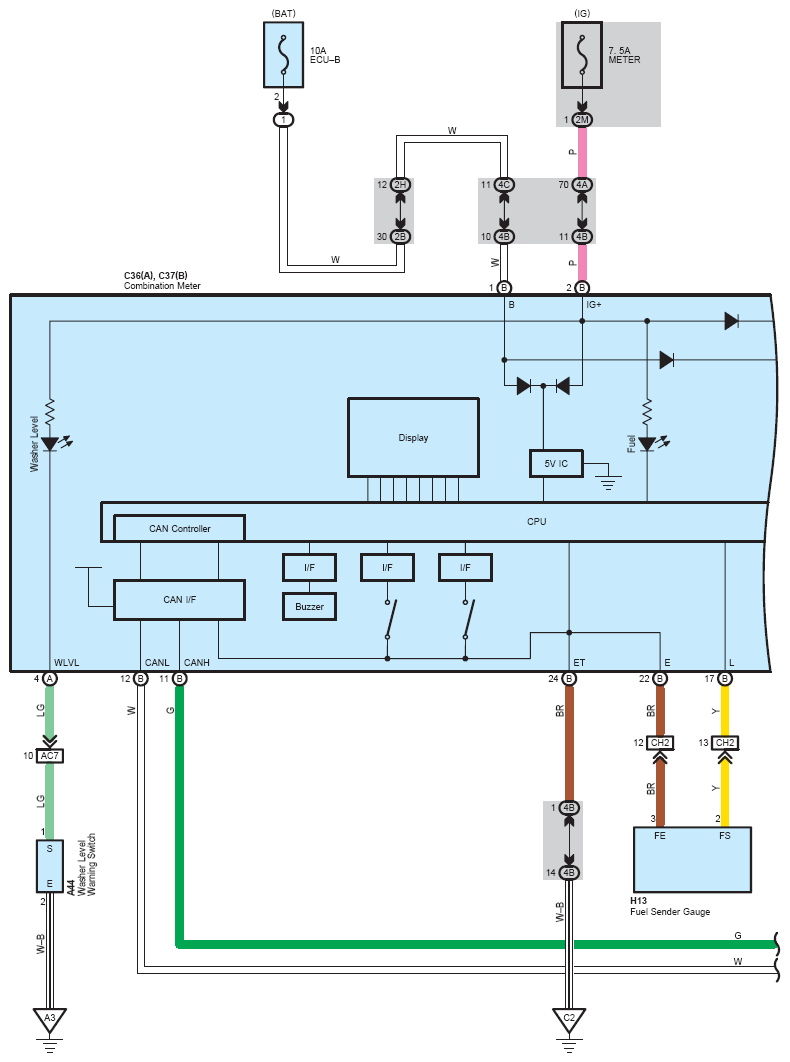

Fig 1: Combination Meter - Wiring Diagram (1 Of 5)
G08776929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

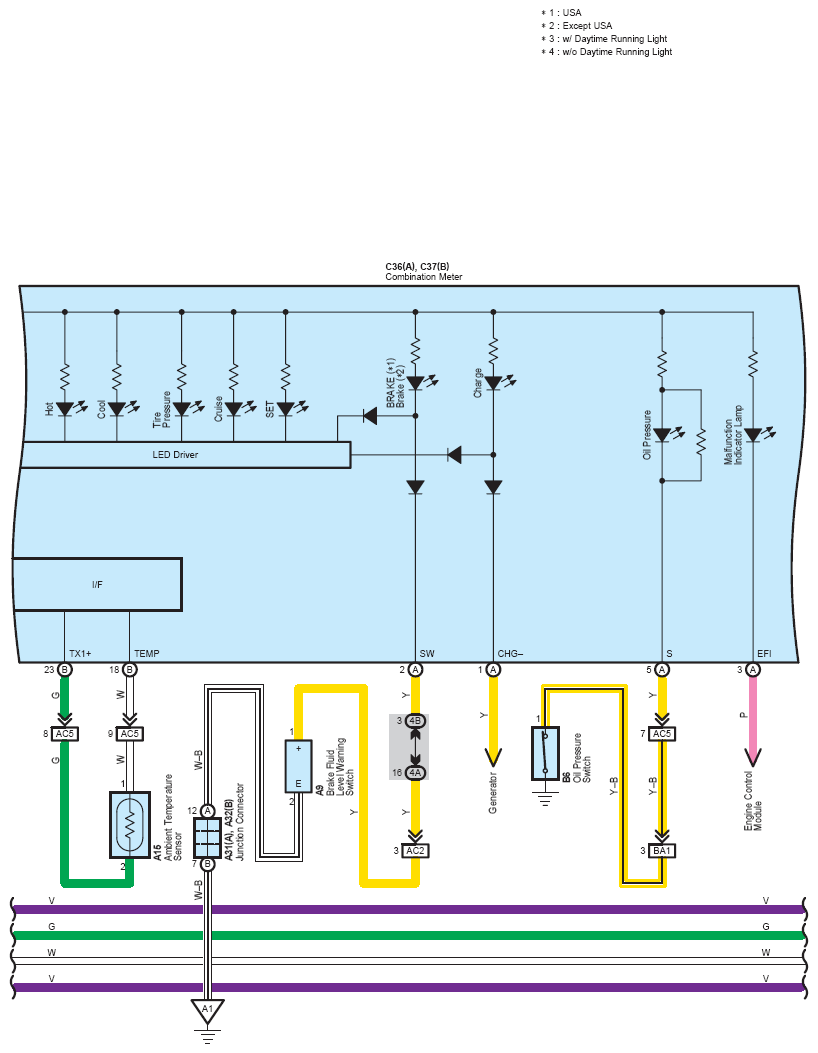

Fig 2: Combination Meter - Wiring Diagram (2 Of 5)
G08776930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

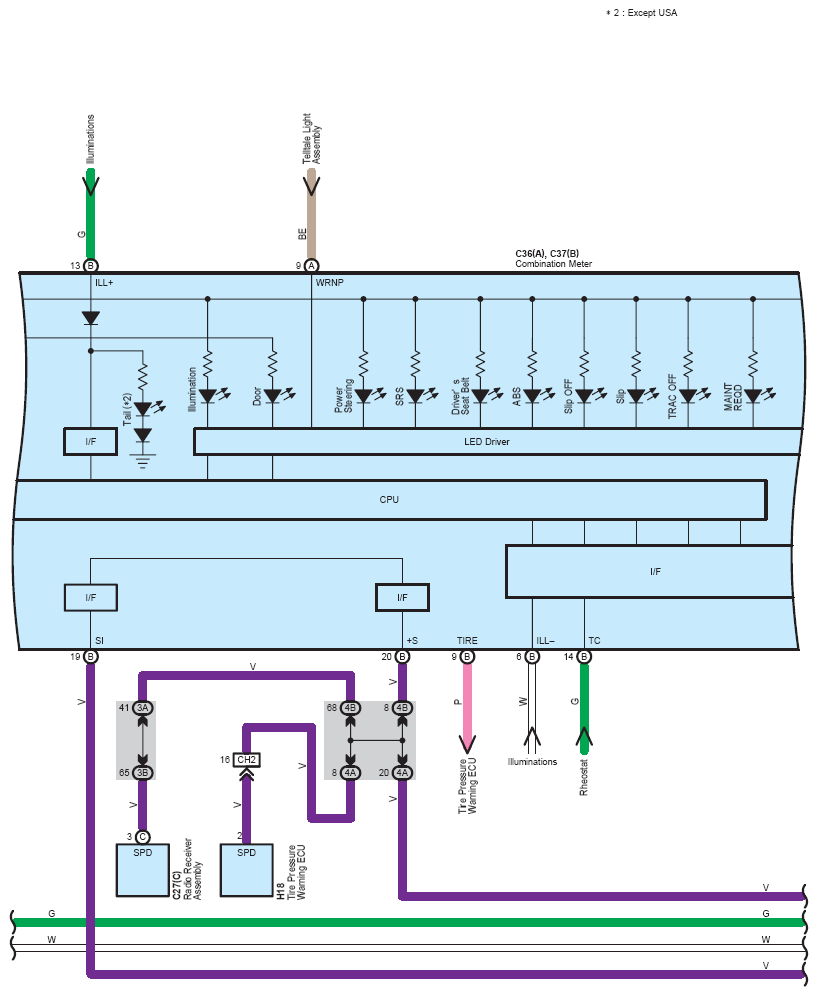

Fig 3: Combination Meter - Wiring Diagram (3 Of 5)
G08776931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

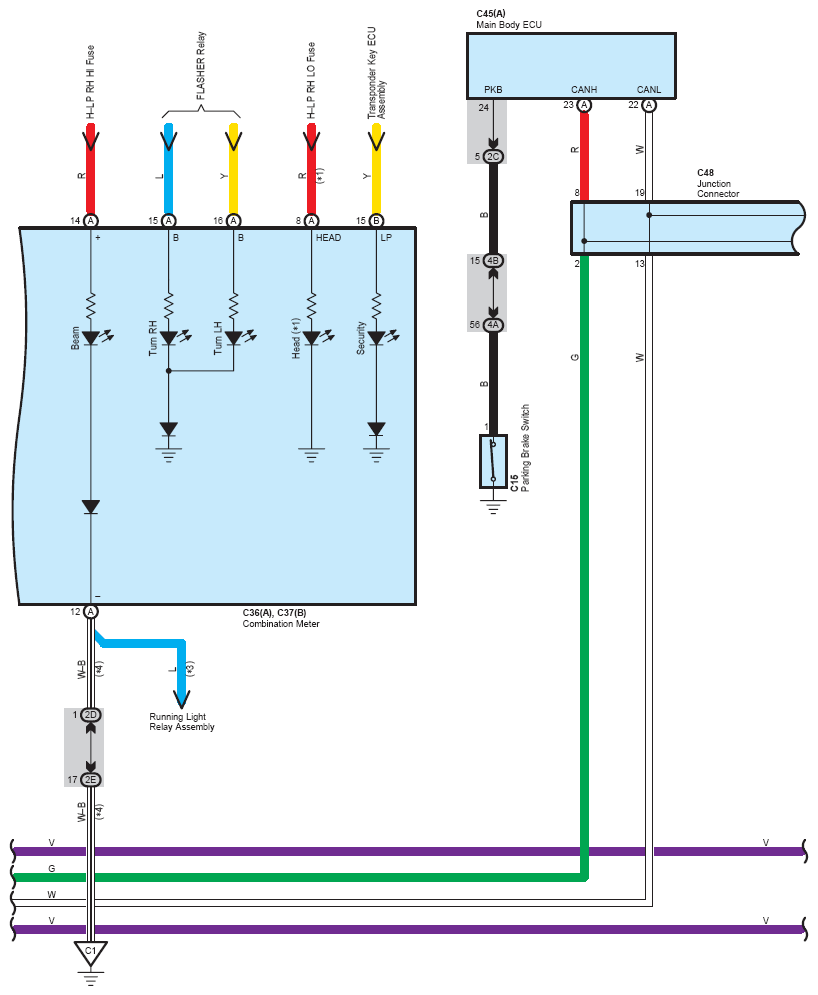

Fig 4: Combination Meter - Wiring Diagram (4 Of 5)
G08776932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

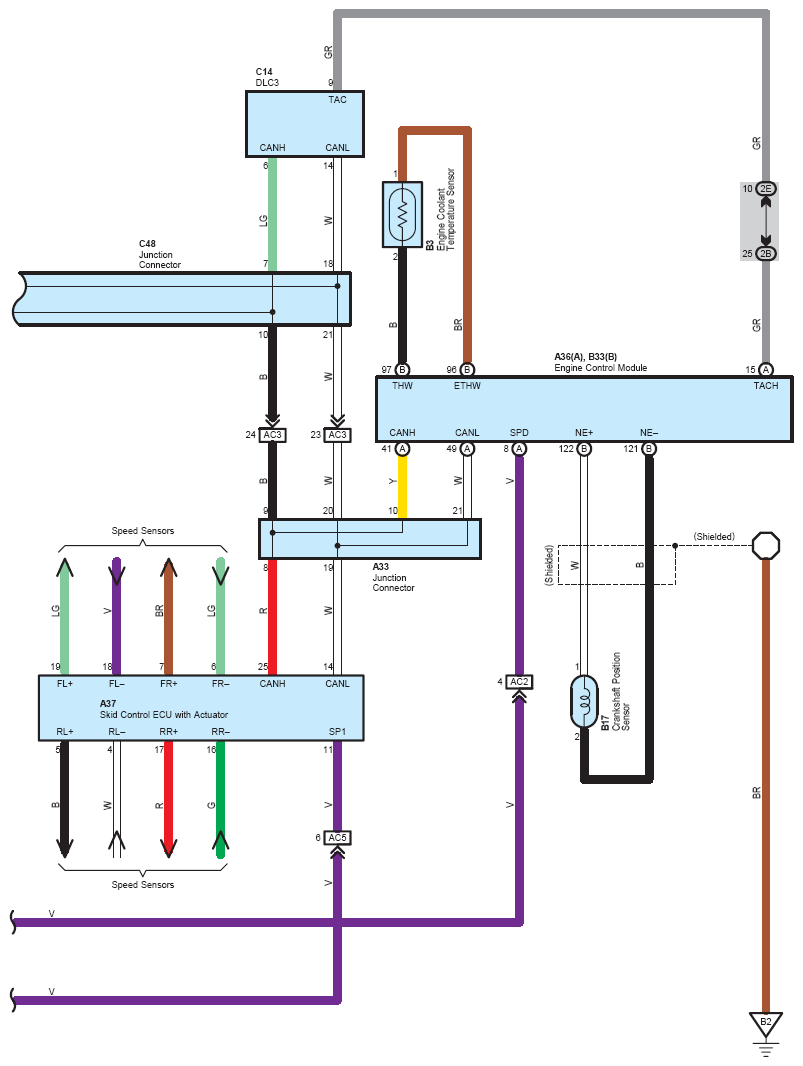

Fig 5: Combination Meter - Wiring Diagram (5 Of 5)
G08776933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
