Engine Immobilizer System
›
Notes
Engine Immobilizer System: Notes

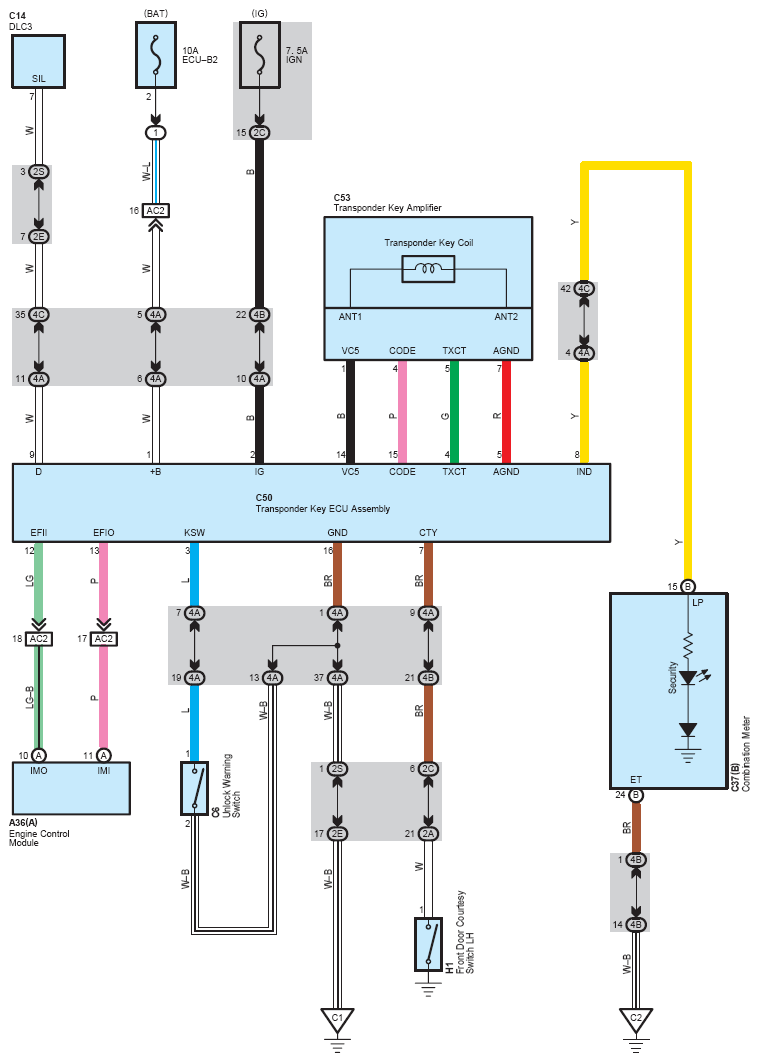

Fig 1: Engine Immobilizer System - Wiring Diagram
