Automatic Transaxle (Service Information)
›
UNDERDRIVE Clutch
›
Components
›
Illustration
UNDERDRIVE Clutch: Components: Illustration

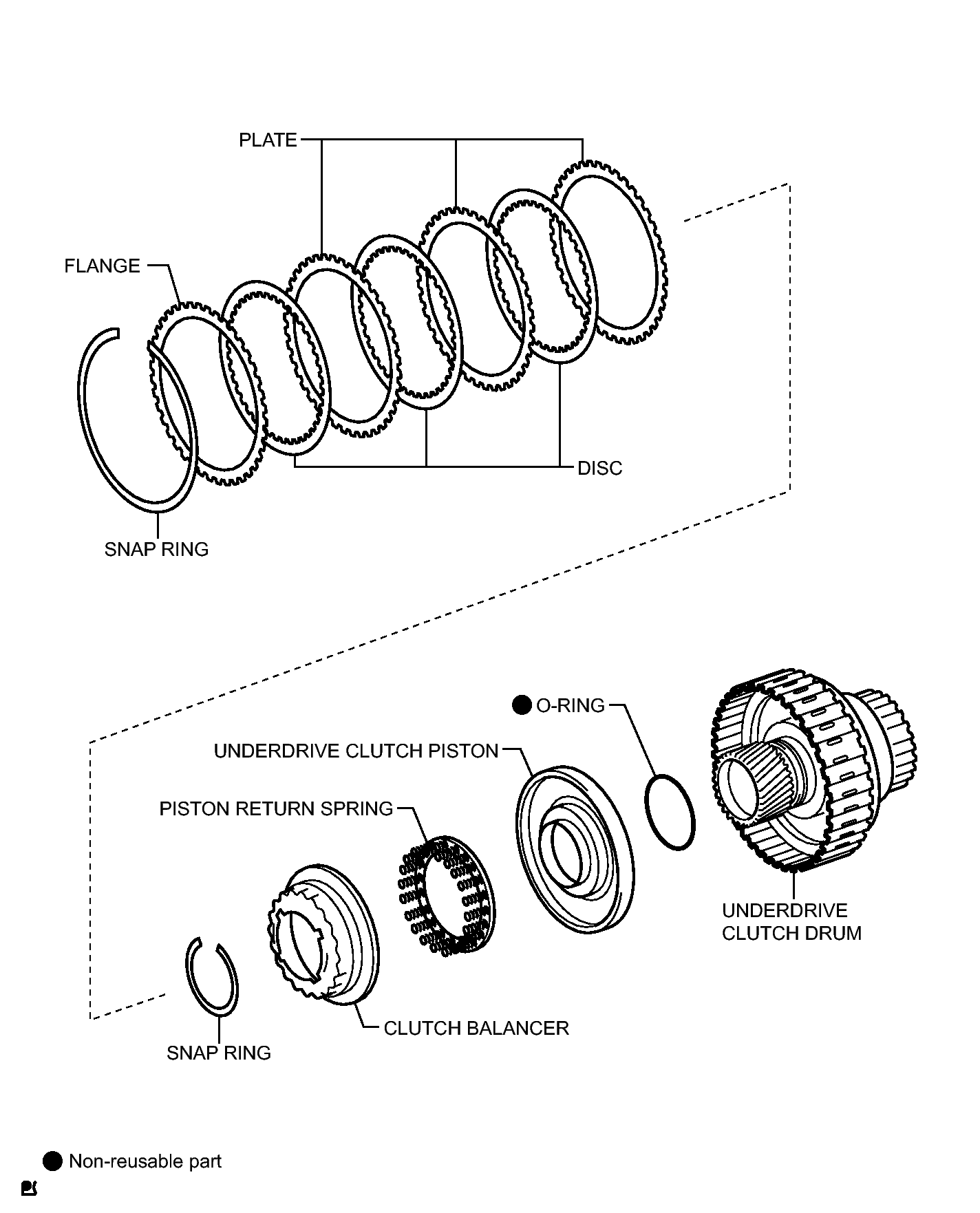

Fig 1: Identifying Underdrive Clutch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
