OEM System Circuits: Charging: Notes

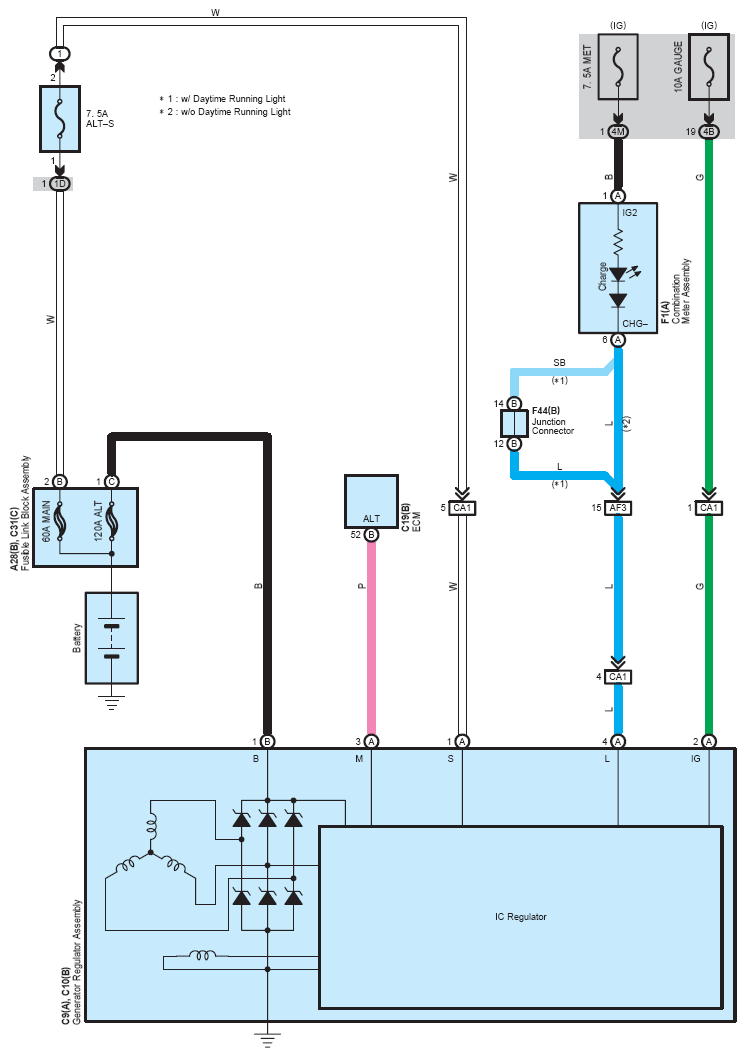

Fig 1: Charging - Circuit Diagram
G08777278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
