OEM System Circuits: Clock: Notes

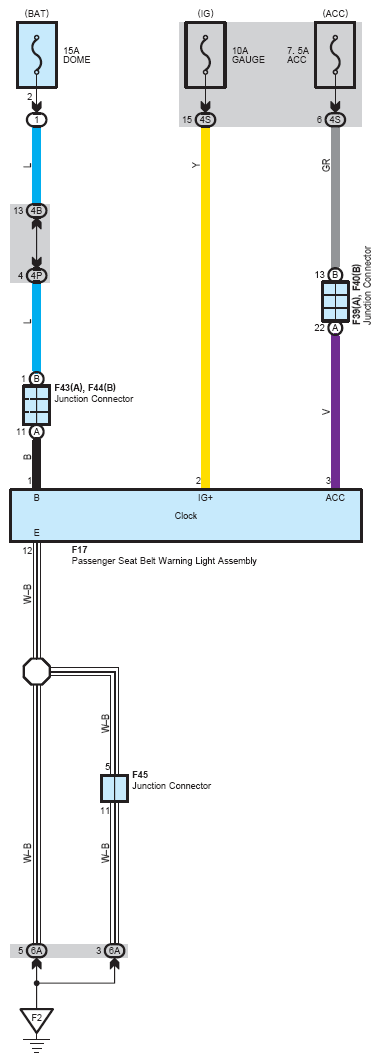

Fig 1: Clock - Circuit Diagram
G08777316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
