OEM System Circuits
›
Engine Immobilizer System
›
Notes
Engine Immobilizer System: Notes

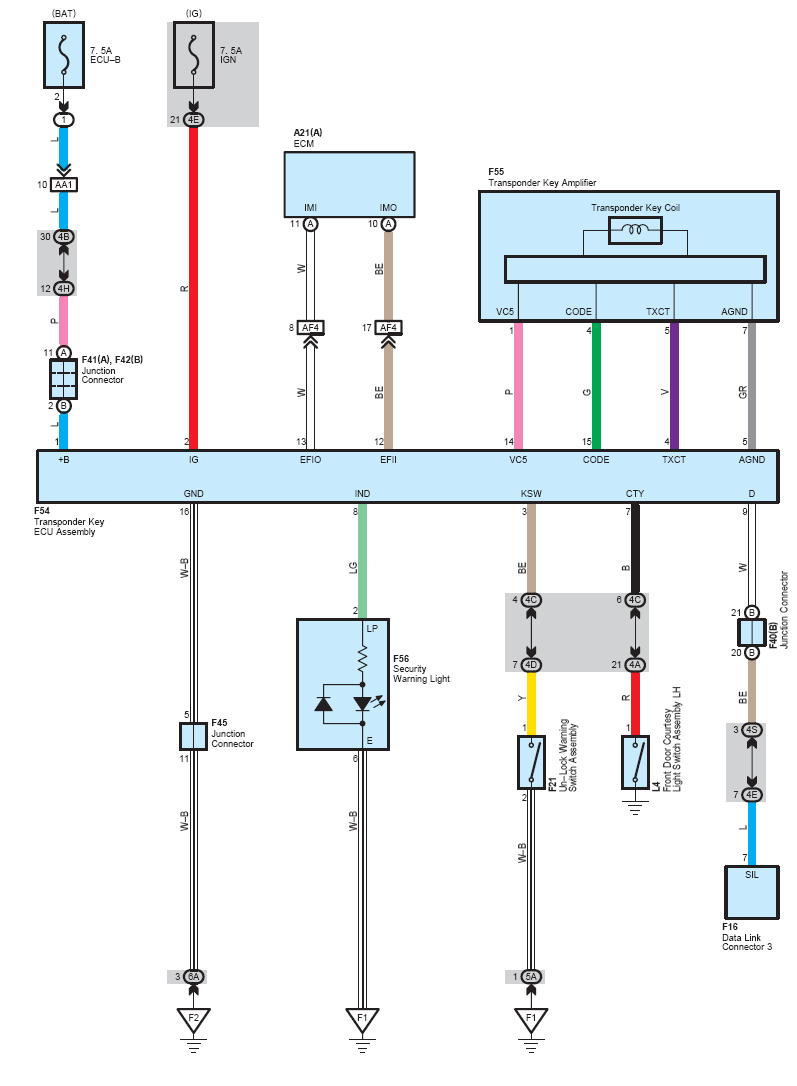

Fig 1: Engine Immobilizer System - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
