Power Window Control System (Diagnostics - Introduction)
›
Power Window Control System
›
Components Location [05/2014 - ]
›
Illustration
Components Location [05/2014 - ]: Illustration

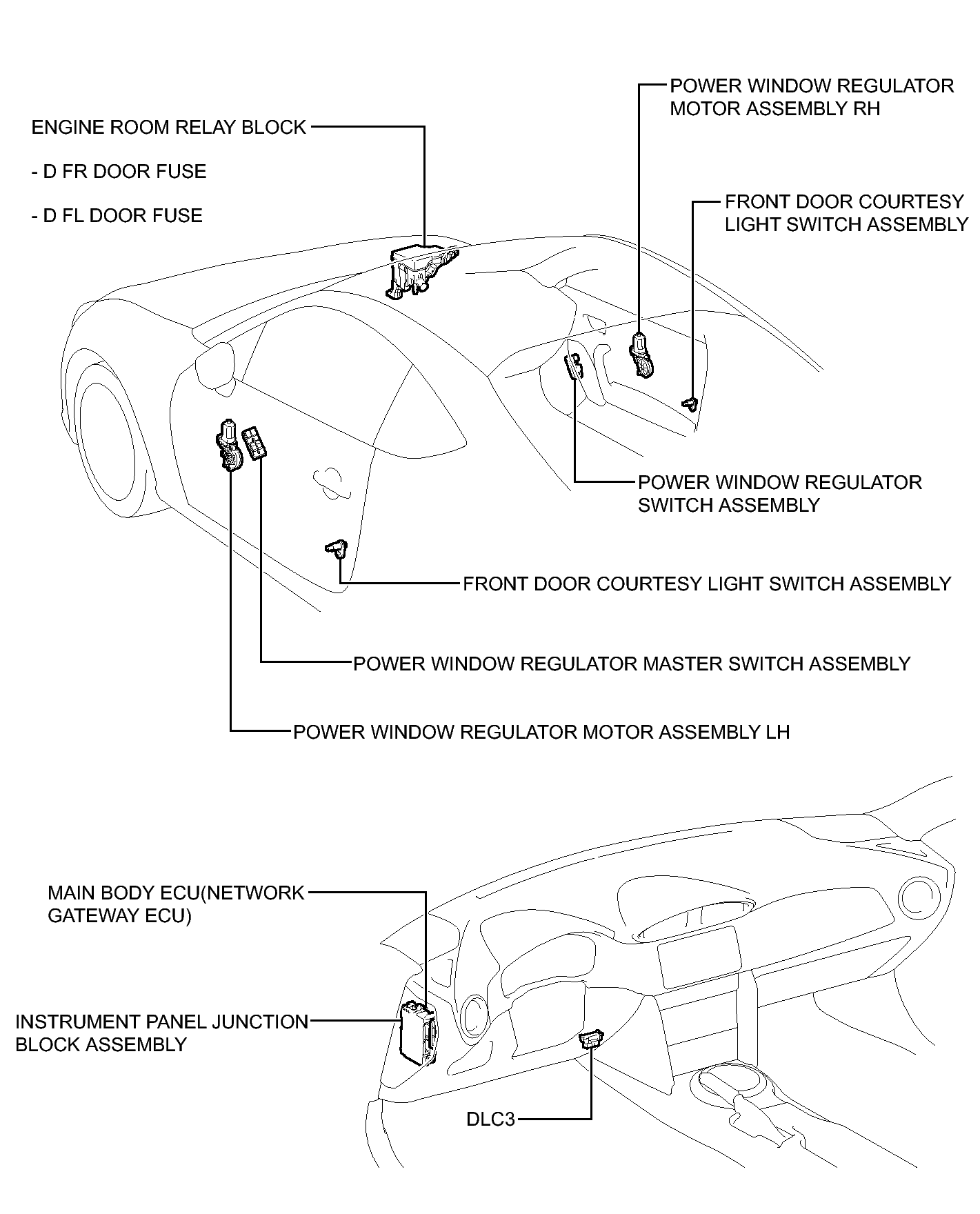

Fig 1: Identifying Power Window Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
