Components [05/2014 - ]: Illustration

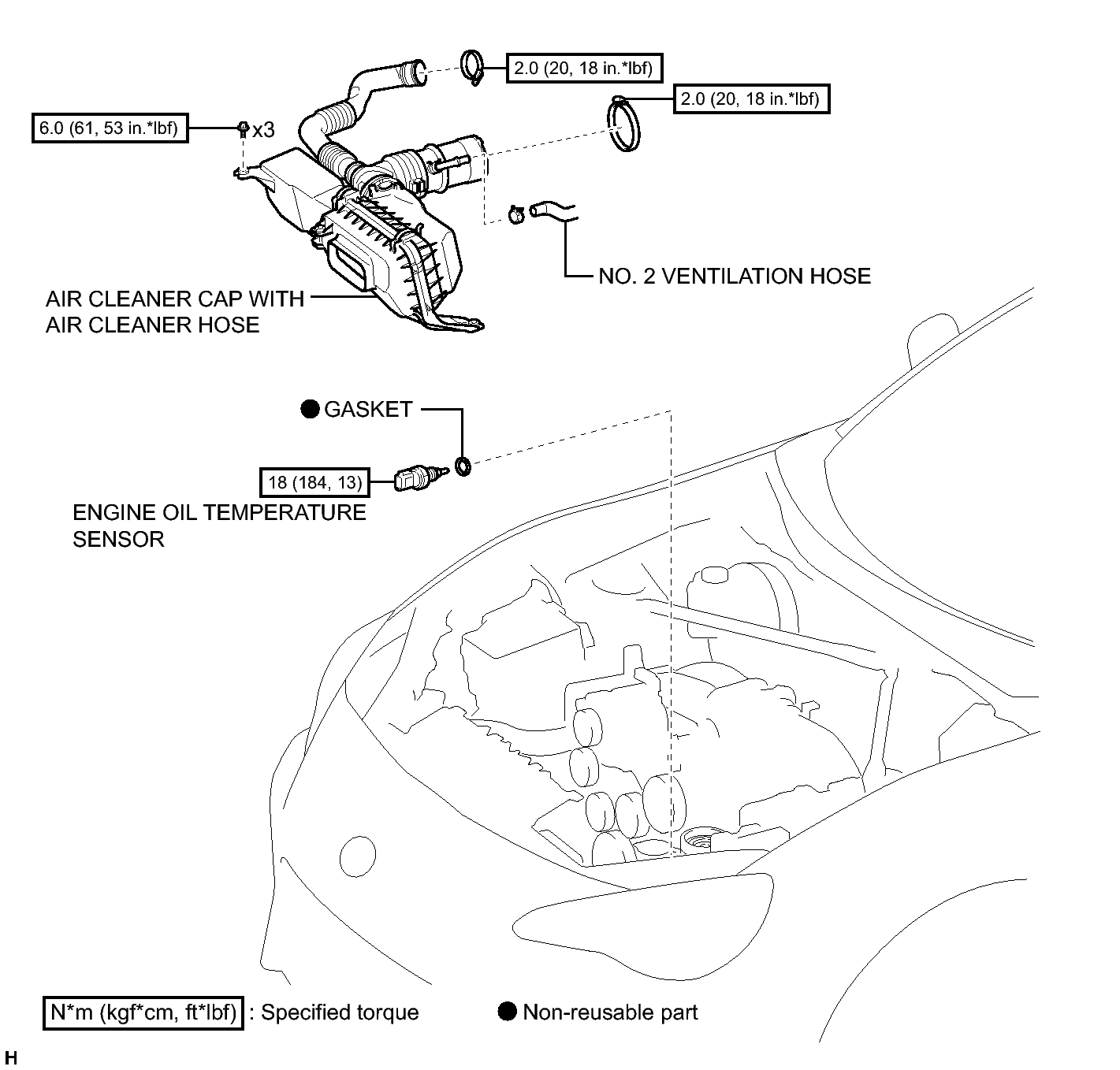

Fig 1: Identifying Engine Oil Temperature Sensor Replacement Components With Torque Specifications
GTY393019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
