Components [05/2014 - ]: Illustration

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

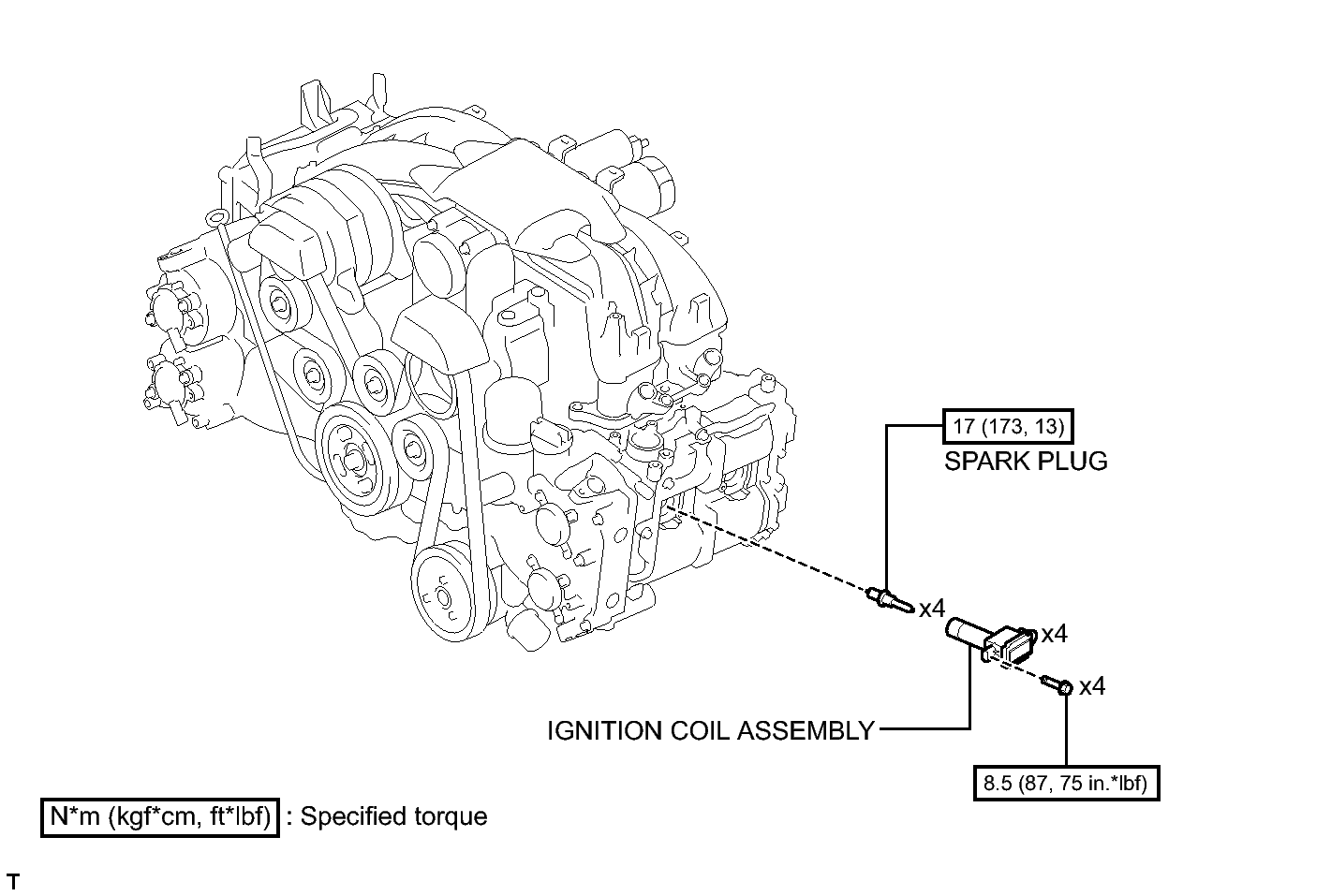

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
