Components [05/2014 - ]: Illustration

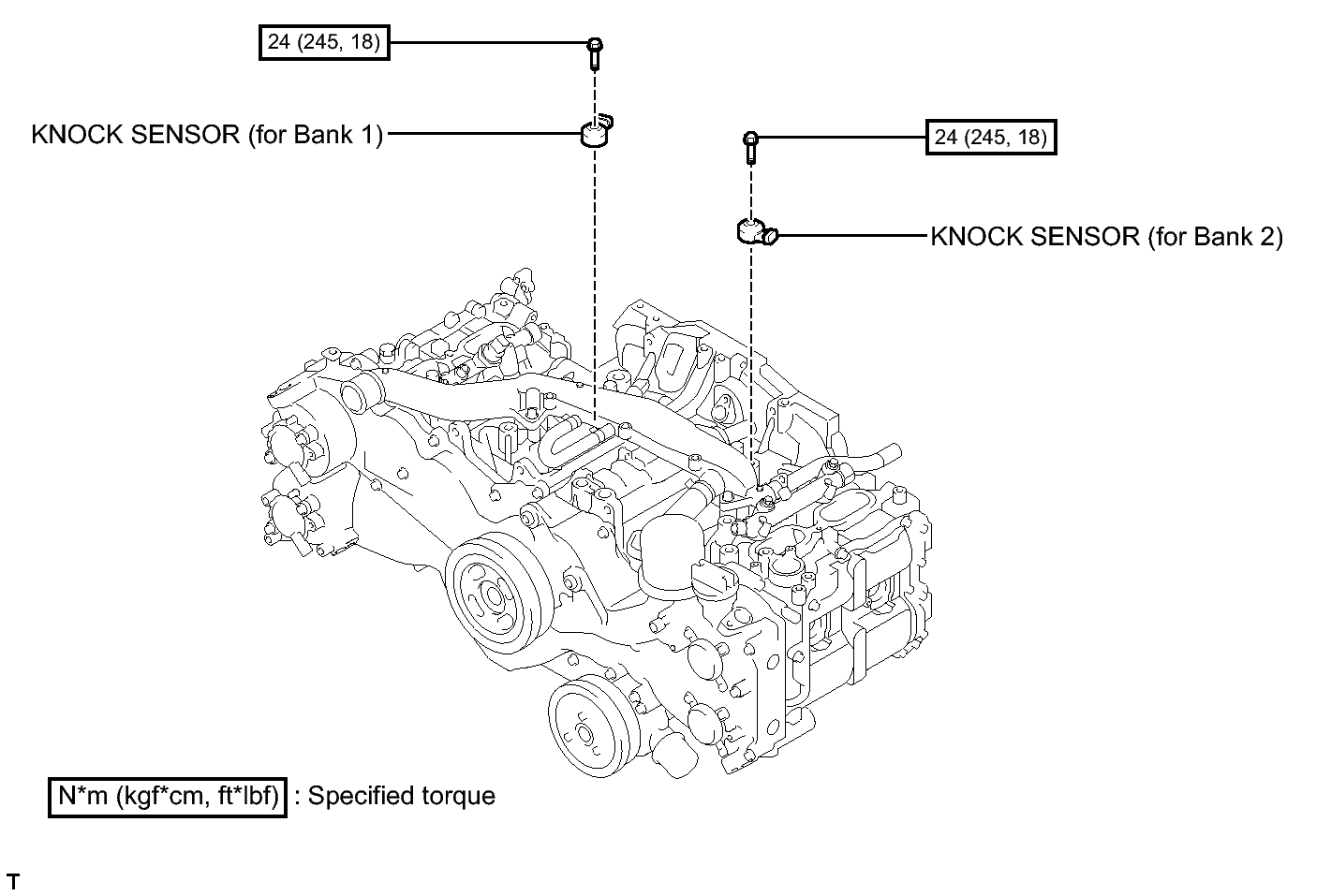

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications
GTY385096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
