Mass Air Flow Meter
›
Components [05/2014 - ]
›
Illustration
Components [05/2014 - ]: Illustration

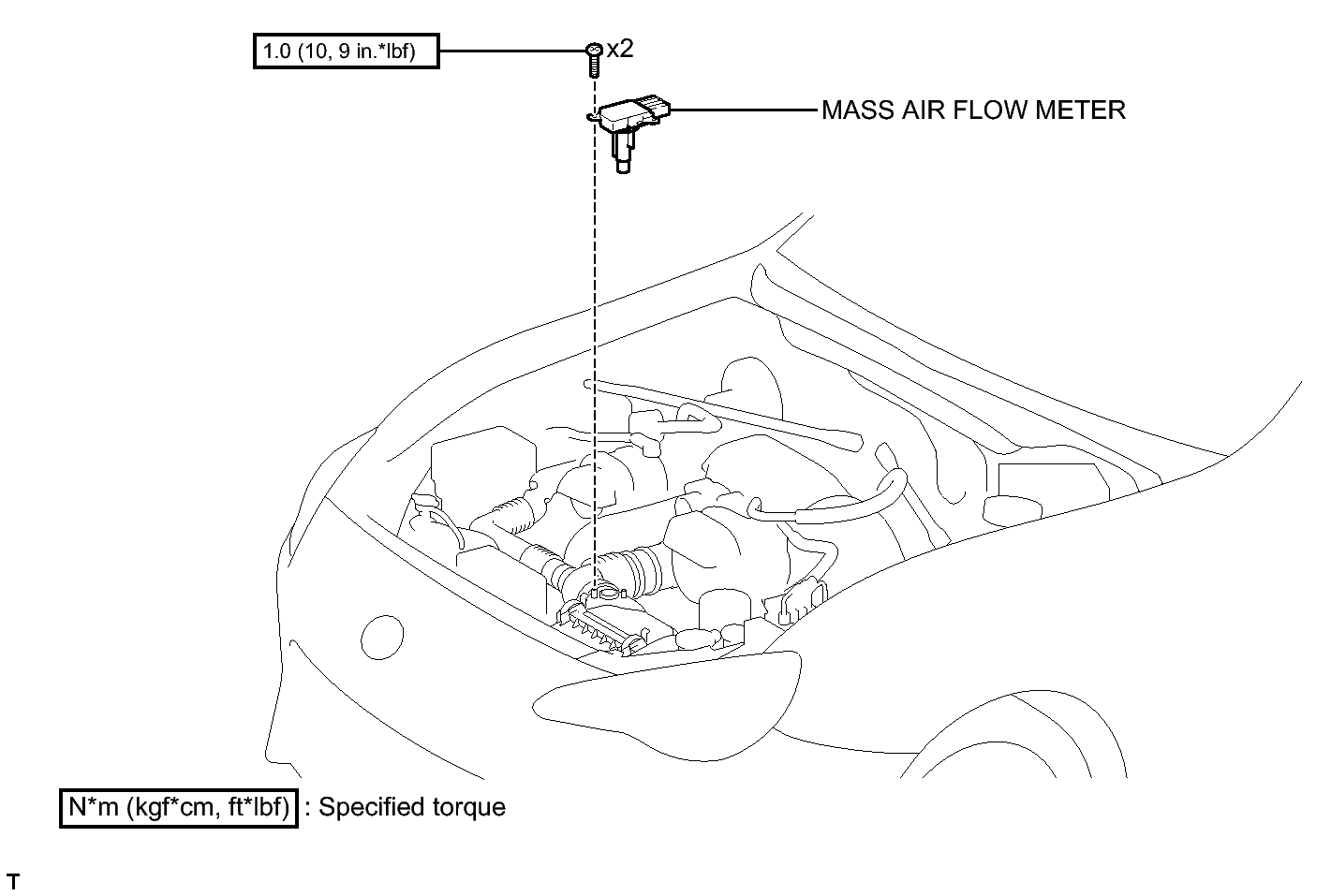

Fig 1: Identifying Mass Air Flow Meter Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
