Components [05/2014 - ]: Illustration

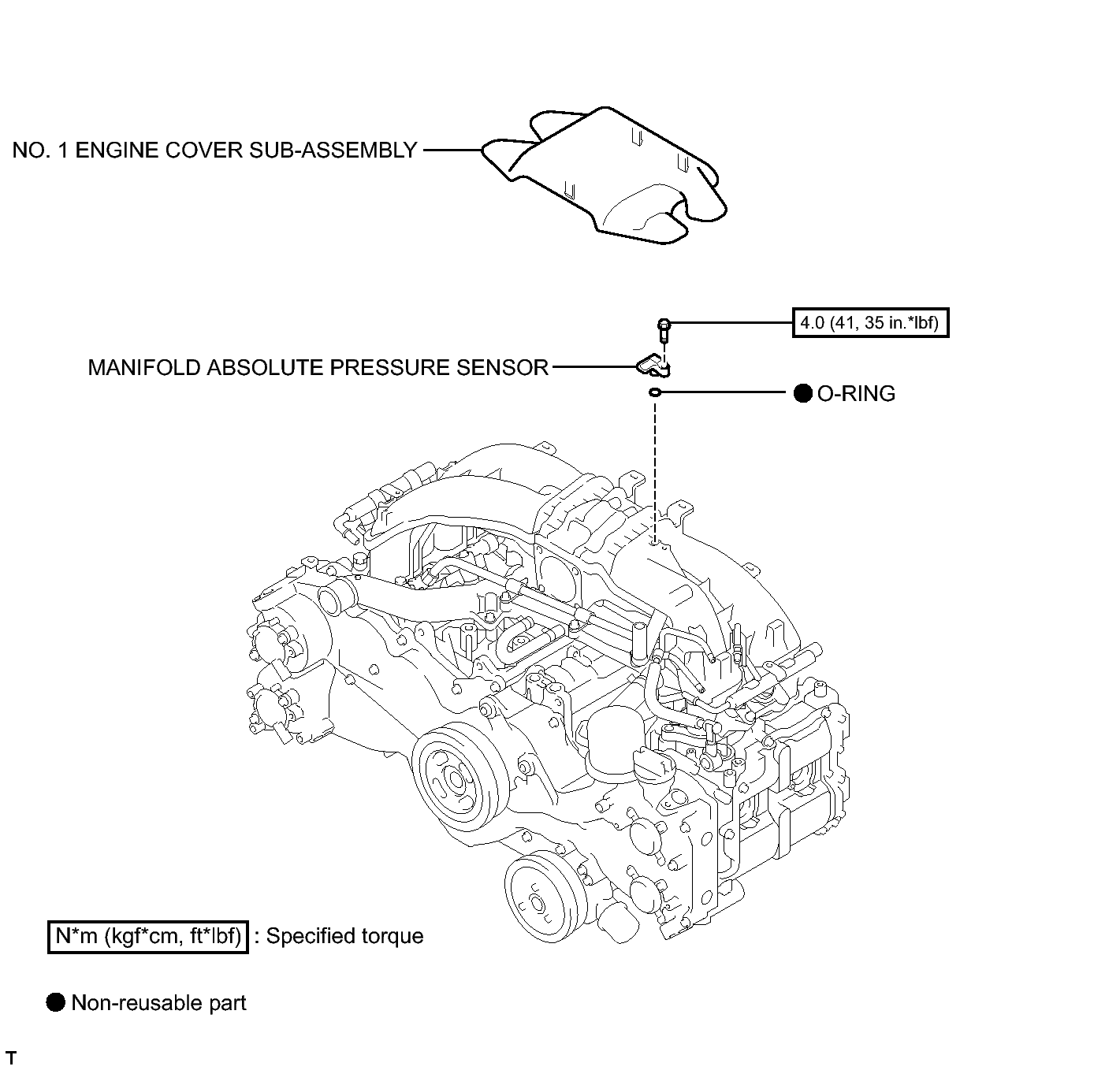

Fig 1: Identifying Vacuum Sensor Replacement Components With Torque Specifications
GTY392673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
