Engine Control System (Service Information)
›
Accelerator Pedal
›
Components [05/2014 - ]
›
Illustration
Components [05/2014 - ]: Illustration

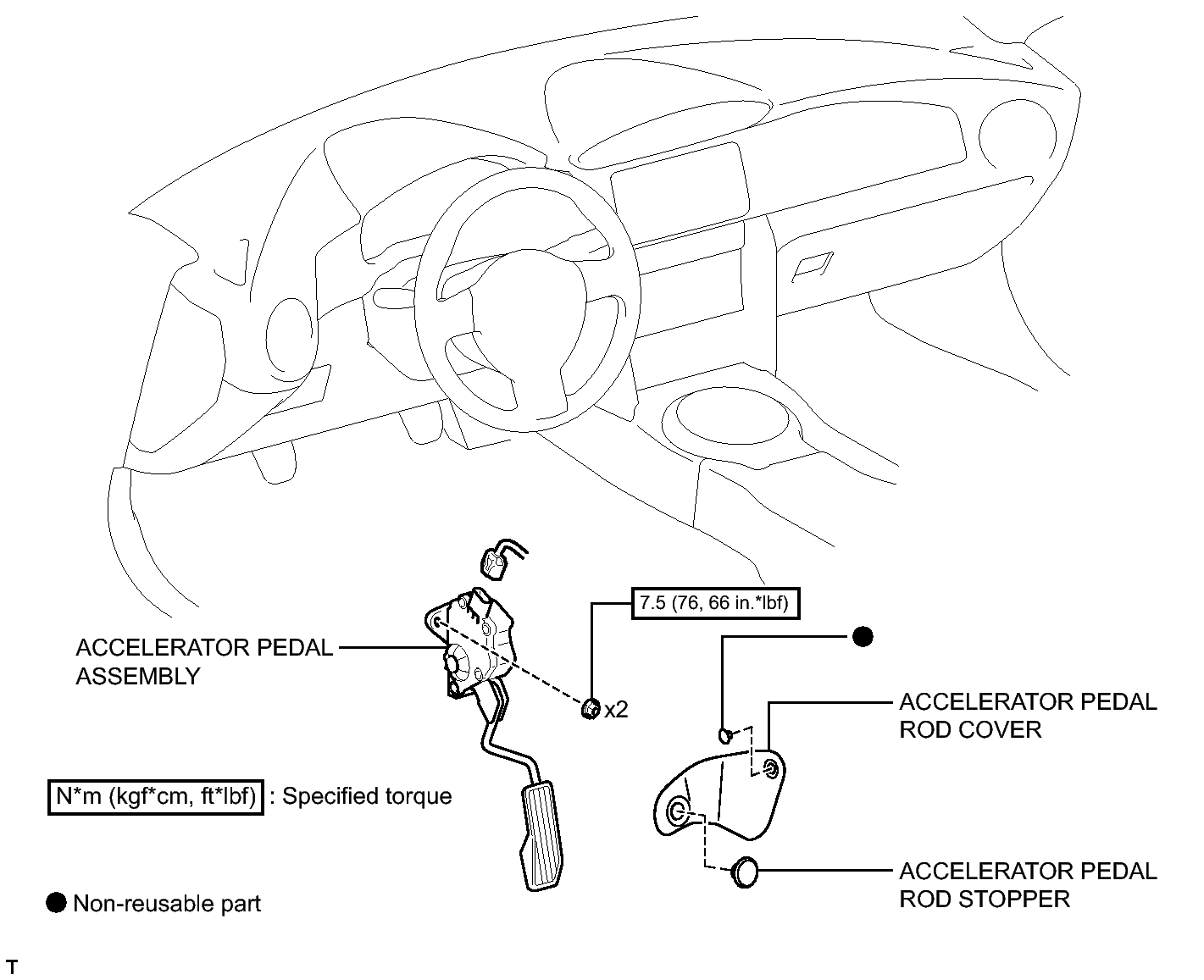

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
