Customize Parameters [07/2015 - ]

  1. CONTROL SYSTEM REPAIR INSTRUCTION SETTING PROCEDURE
    NOTE:
    • The personalization feature may not be set correctly if [Not equipped] is selected in the setting displayed on the Techstream. Do not select [Not equipped] in the setting displayed on the Techstream.

    HINT:

    • Settings of some repair instruction displayed on the Techstream cannot be switched depending on the vehicle specification.
  2. Auto Light-Off System Using Techstream
    1. Connect the Techstream to DLC-2.
    2. After the vehicle is identified, select the following items from the initial screen of the Techstream.
      • Select the "Module Programming".
      • Select "Programmable Parameters".
      • Select menu in the Main body ECU.
    3. Select an item name, and then select option.

      Preference

      Tester Display Description Default Setting ECU
      Auto_LightOff_Timer_Cstmz_Stat The headlight emitted time of the auto light off timer can be changed. 30sec 001:OFF, 010:30sec, 011:60sec, 100:90sec, 101:120sec Main body ECU
  3. Auto Light-Off System Using multi-display
  4. Turn light system Using Techstream
    1. Connect the Techstream to DLC-2.
    2. After the vehicle is identified, select the following items from the initial screen of the Techstream.
      • Select the "Module Programming".
      • Select "Programmable Parameters".
      • Select menu in the Main Body ECU.
    3. Select an item name, and then select option.

      Preference

      Tester Display Description Default Setting ECU
      Smart_Turn_Cstmz_Stat The turn light system can be switched between operable and inoperable. On 01:Off, 10:On Main body ECU
  5. Turn light system Using multi-display
  6. Coming Home Light System Using Techstream
    1. Connect the Techstream to DLC-2.
    2. After the vehicle is identified, select the following items from the initial screen of the Techstream.
      • Select the "Module Programming".
      • Select "Programmable Parameters".
      • Select menu in the Main Body ECU.
    3. Select an item name, and then select option.

      Preference

      Tester Display Description Default Setting ECU
      Coming_Home_Light_Cstmz_Stat The coming home light system operation time can be switched. 30sec 001:OFF, 010:30sec, 011:60sec, 100:90sec, 101:120sec Main body ECU
  7. Coming Home Light System Using multi-display
  8. Leaving Home Light System Using Techstream
    1. Connect the Techstream to DLC-2.
    2. After the vehicle is identified, select the following items from the initial screen of the Techstream.
      • Select the "Module Programming".
      • Select "Programmable Parameters".
      • Select menu in the Main Body ECU.
    3. Select an item name, and then select option.

      Preference

      Tester Display Description Default Setting ECU
      Leaving_Home_Light_Cstmz_Stat The leaving home light system can be switched between operable and inoperable. ON 01:OFF, 10:ON Main body ECU
  9. Leaving Home Light System Using multi-display
  10. Setting method by operation of dimmer switch
  11. Room light control system Using Techstream
    1. Connect the Techstream to DLC-2.
    2. After the vehicle is identified, select the following items from the initial screen of the Techstream.
      • Select the "Module Programming".
      • Select "Programmable Parameters".
      • Select menu in the Main Body ECU.
    3. Select an item name, and then select option.

      Preference

      Tester Display Description Default Setting ECU
      T2_RoomLamp_DoorClosed_Cstmz_Stat The map light illumination time after all doors are closed can be changed. 15sec 001:15sec, 010:7.5sec, 011:30sec, 100:60sec Main body ECU
      T1_RoomLamp_BatterySave_Cstmz_Stat
      • The map light illumination time after a door is opened can be changed.
      • The luggage compartment room light illumination time after the trunk lid is opened can be changed.
      		 30min 01:30min, 10:60min, 11:10min Main body ECU
  12. Room light control system Using multi-display
  13. Power Door Lock System Using Techstream
    1. Connect the Techstream to DLC-2.
    2. After the vehicle is identified, select the following items from the initial screen of the Techstream.
      • Select the "Module Programming".
      • Select "Programmable Parameters".
      • Select menu in the Main Body ECU.
    3. Select an item name, and then select option.

      Preference

      Tester Display Description Default Setting ECU
      Auto_Door_Lock_Cstmz_Stat Auto door lock function can be changed. Mode3 0001:Mode1, 0010:Mode2, 0011:Mode3, 0100:Mode4 (AT Only), 0101:Mode5 (AT Only), 1010:Mode10 (AT Only) Main body ECU
      • Mode1: Off
      • Mode2: Lock When Driving
      • Mode3: Lock When Driving, Unlock IGN Off
      • Mode4 (AT Only): Lock Shifting from Park
      • Mode5 (AT Only): Lock Shifting from Park, Unlock In Park
      • Mode10 (AT Only): Lock When Driving, Unlock In Park
  14. Power Door Lock System Using multi-display
  15. Setting method by operation of door lock control switch
    1. The following setting can be changed by operation of the door lock control switch.

      Preference

      Tester Display Description Default Setting ECU
      Auto_Door_Lock_Cstmz_Stat Auto door lock function can be changed. Mode3 0001:Mode1, 0010:Mode2, 0011:Mode3, 0100:Mode4 (AT Only), 0101:Mode5 (AT Only), 1010:Mode10 (AT Only) Main body ECU
      • Mode1: Off
      • Mode2: Lock When Driving
      • Mode3: Lock When Driving, Unlock IGN Off
      • Mode4 (AT Only): Lock Shifting from Park
      • Mode5 (AT Only): Lock Shifting from Park, Unlock In Park
      • Mode10 (AT Only): Lock When Driving, Unlock In Park
      • Change the setting for the auto door lock referring to the following procedure:

        HINT:

        • If any of the following conditions is met during procedure, the setting change for the auto door lock is stopped.
          • Lock side of the door lock control switch is pressed while in the personalization mode.
          • Unlock side of the door lock control switch is pressed 7 times while in the personalization mode. (ATX)
          • Unlock side of the door lock control switch is pressed 4 times while in the personalization mode. (MTX)

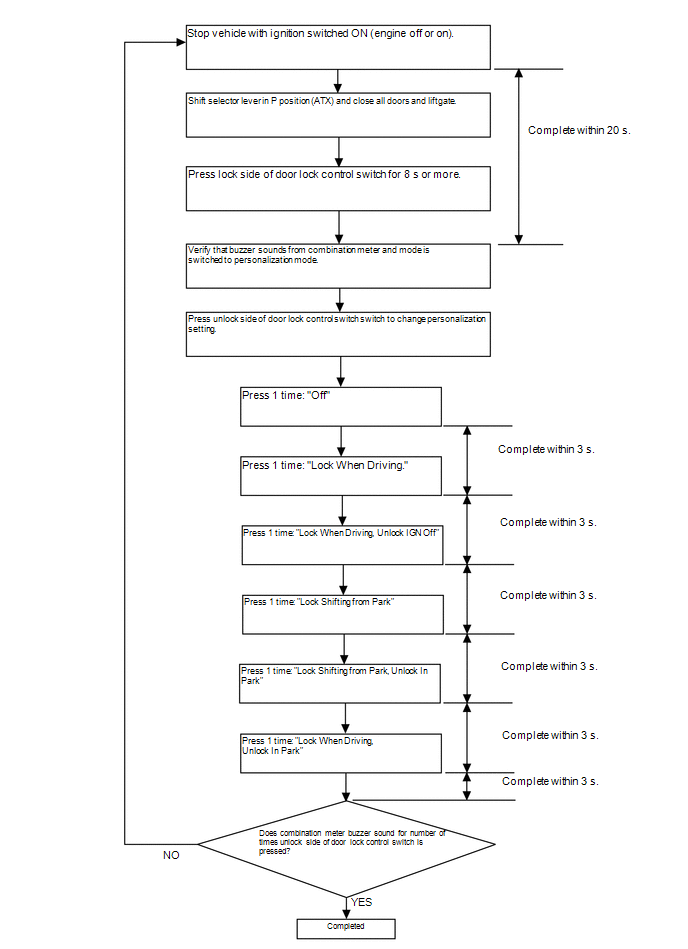

      Fig 1: Door Lock Control Switch Setting Method Chart
      GTY490354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
