Removal [07/2015 - ]: Procedure

  1. REMOVE OCCUPANT DETECTION SENSOR
    1. Switch the ignition off.
    2. Disconnect the negative battery cable and wait for 1 min or more.

      Refer to PROCEDURE - Step 1

    3. Remove the passenger-side front seat.

      Refer to PROCEDURE - Step 1

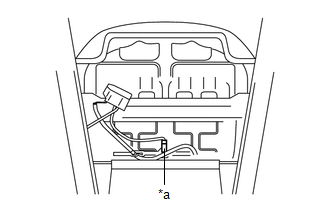

    4. Disconnect the occupancy sensor connector.
      GTY486350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Occupancy Sensor Connector
