On-Vehicle Inspection [06/2015 - ]: Procedure

HINT:

Perform Inspection After Repair after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [06/2015 - ]

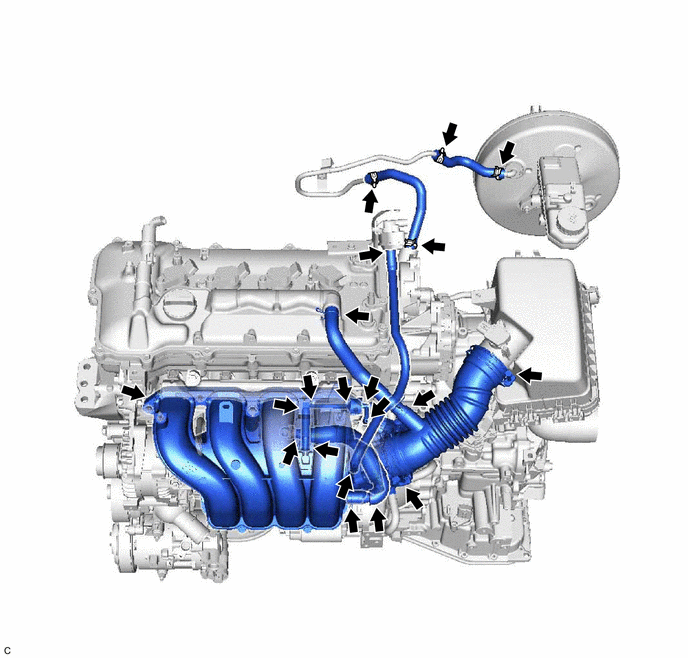

1. Check that there are no vacuum leaks at the points shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.

   Refer to INITIALIZATION [06/2015 - ]
