Components [06/2015 - ]: Illustration

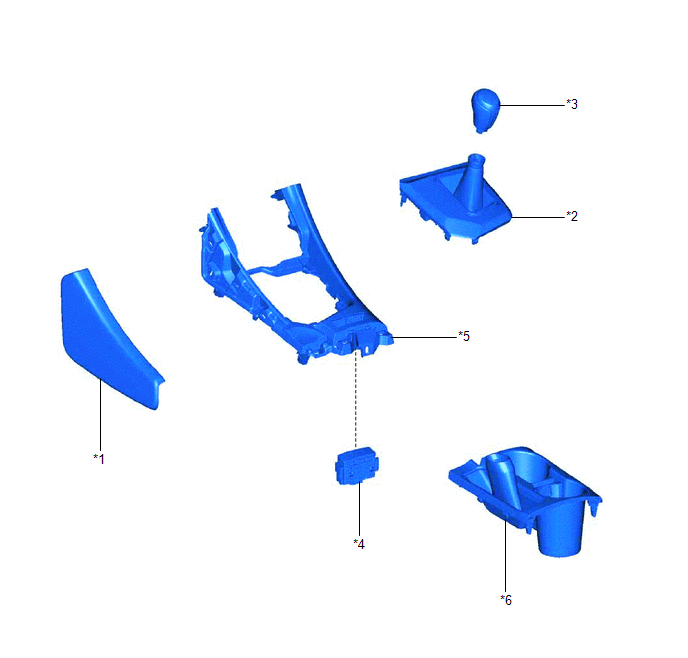

Fig 1: Pattern Select Switch Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL	*2	POSITION INDICATOR HOUSING ASSEMBLY
*3	SHIFT LEVER KNOB SUB-ASSEMBLY	*4	SPORT SWITCH (COMBINATION SWITCH ASSEMBLY)
*5	UPPER CONSOLE PANEL	*6	UPPER CONSOLE PANEL SUB-ASSEMBLY
