Components Location [06/2015 - ]: Illustration

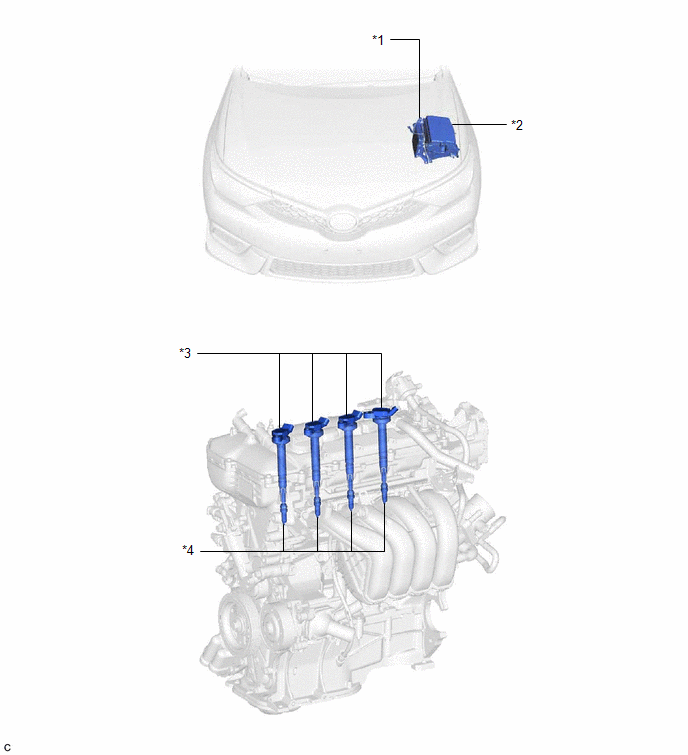

Fig 1: IGNITION SYSTEM COMPONENTS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ECM	*2	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - INJ RELAY - INJ FUSE
*3	IGNITION COIL ASSEMBLY	*4	SPARK PLUG
