Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 15

  2. REMOVE CAMSHAFT POSITION SENSOR (NO. 1 CRANK POSITION SENSOR)
    1. for Exhaust Side:
      1. Disconnect the camshaft position sensor (No. 1 crank position sensor) connector.

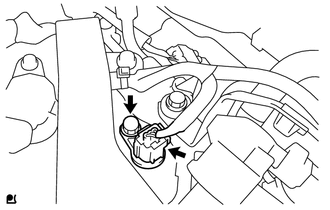

        GTY433571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the bolt and camshaft position sensor (No. 1 crank position sensor) from the cylinder head cover sub-assembly.
        NOTE:

        If the camshaft position sensor (No. 1 crank position sensor) has been struck or dropped, replace it.

    2. for Intake Side:
      1. Disconnect the camshaft position sensor (No. 1 crank position sensor) connector.

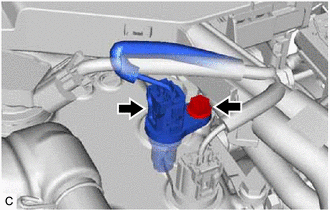

        GTY436645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the bolt and camshaft position sensor (No. 1 crank position sensor) from the cylinder head cover sub-assembly.
        NOTE:

        If the camshaft position sensor (No. 1 crank position sensor) has been struck or dropped, replace it.
