Components [06/2015 - ]: Illustration

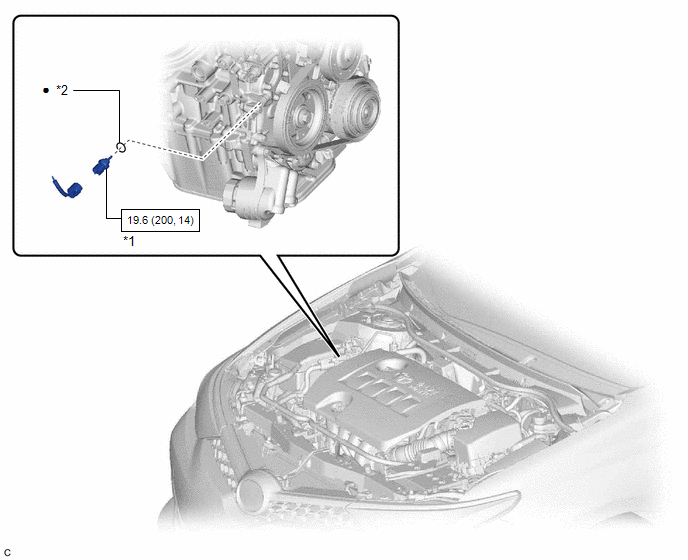

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE OIL TEMPERATURE SENSOR	*2	GASKET
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
