Wiring Diagrams: Wiring Diagram

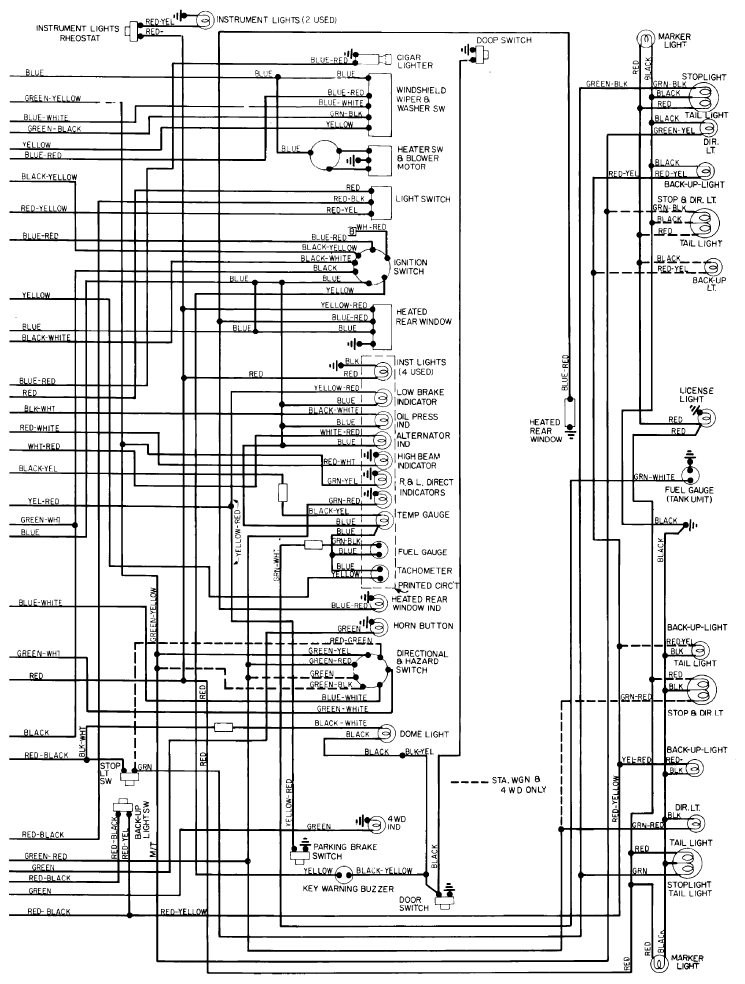

Fig 1: Wiring Diagram - 1400 and 1600 (1 of 2)

Courtesy of SUBARU OF AMERICA, INC.

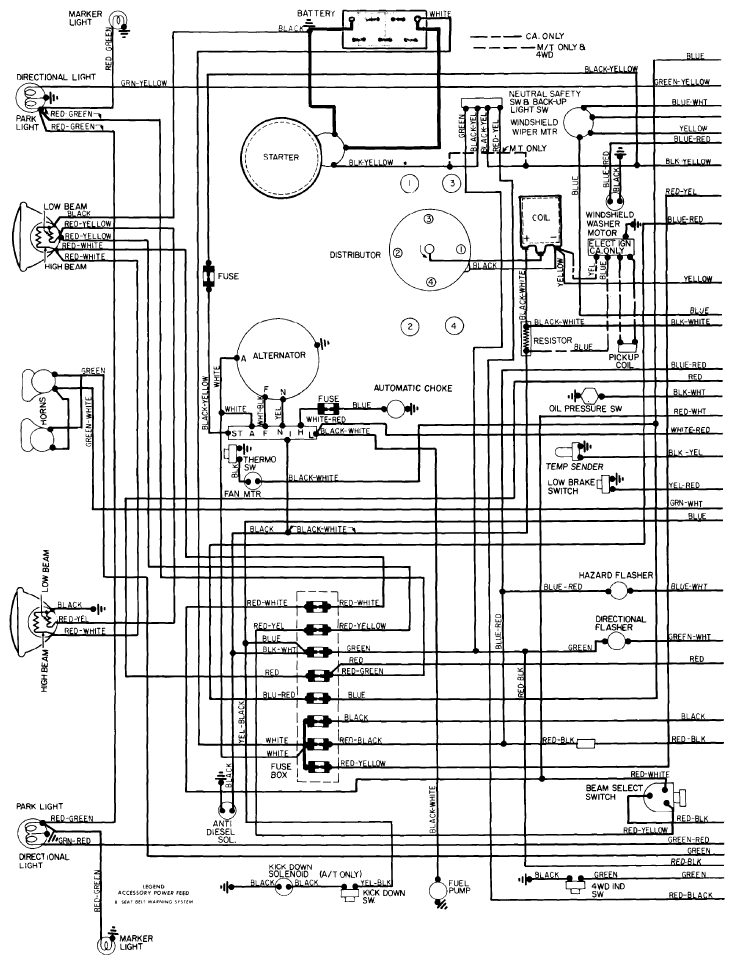

Fig 2: Wiring Diagram - 1400 and 1600 (2 of 2)

Courtesy of SUBARU OF AMERICA, INC.
