KICKDOWN Relay Circuit Check (Auto. Trans.)
KICKDOWN Relay Circuit Check (Auto. Trans.)

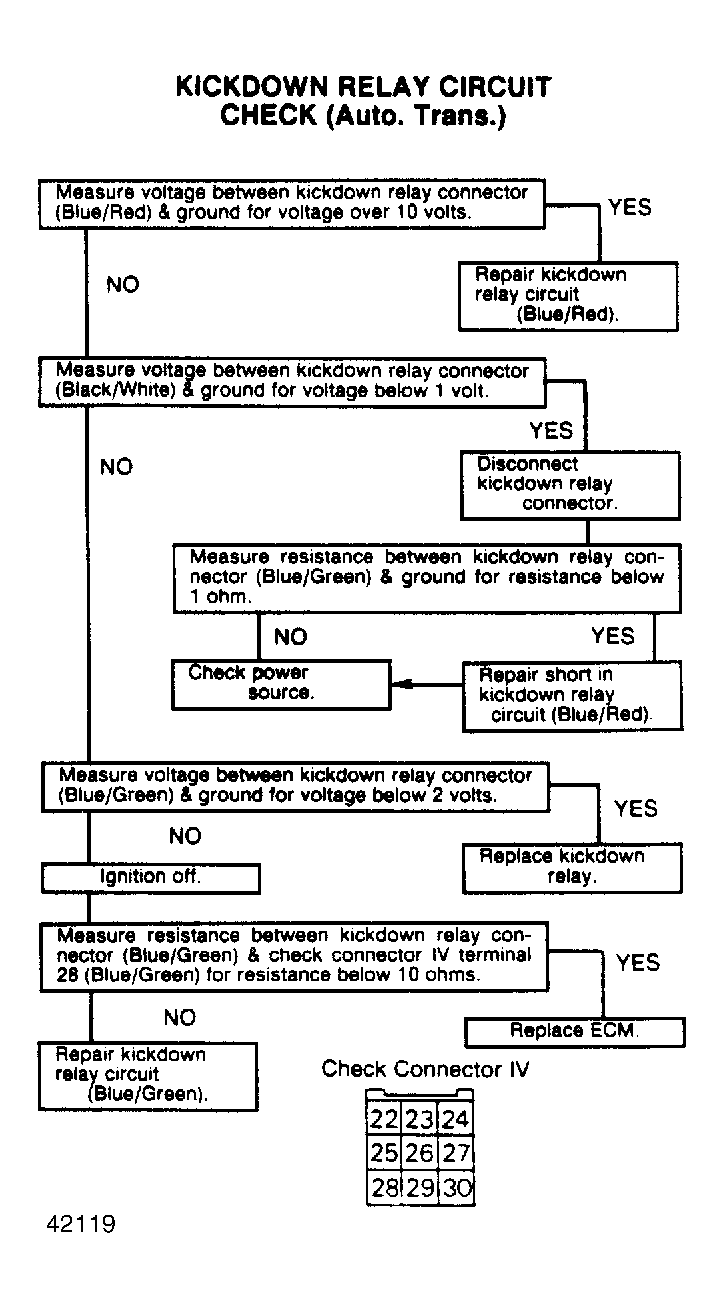

Fig 1: Kickdown Relay Circuit Check (Auto. Trans.)
