Feedback Carburetor System
›
Testing
›
Circuit Check II
Circuit Check II

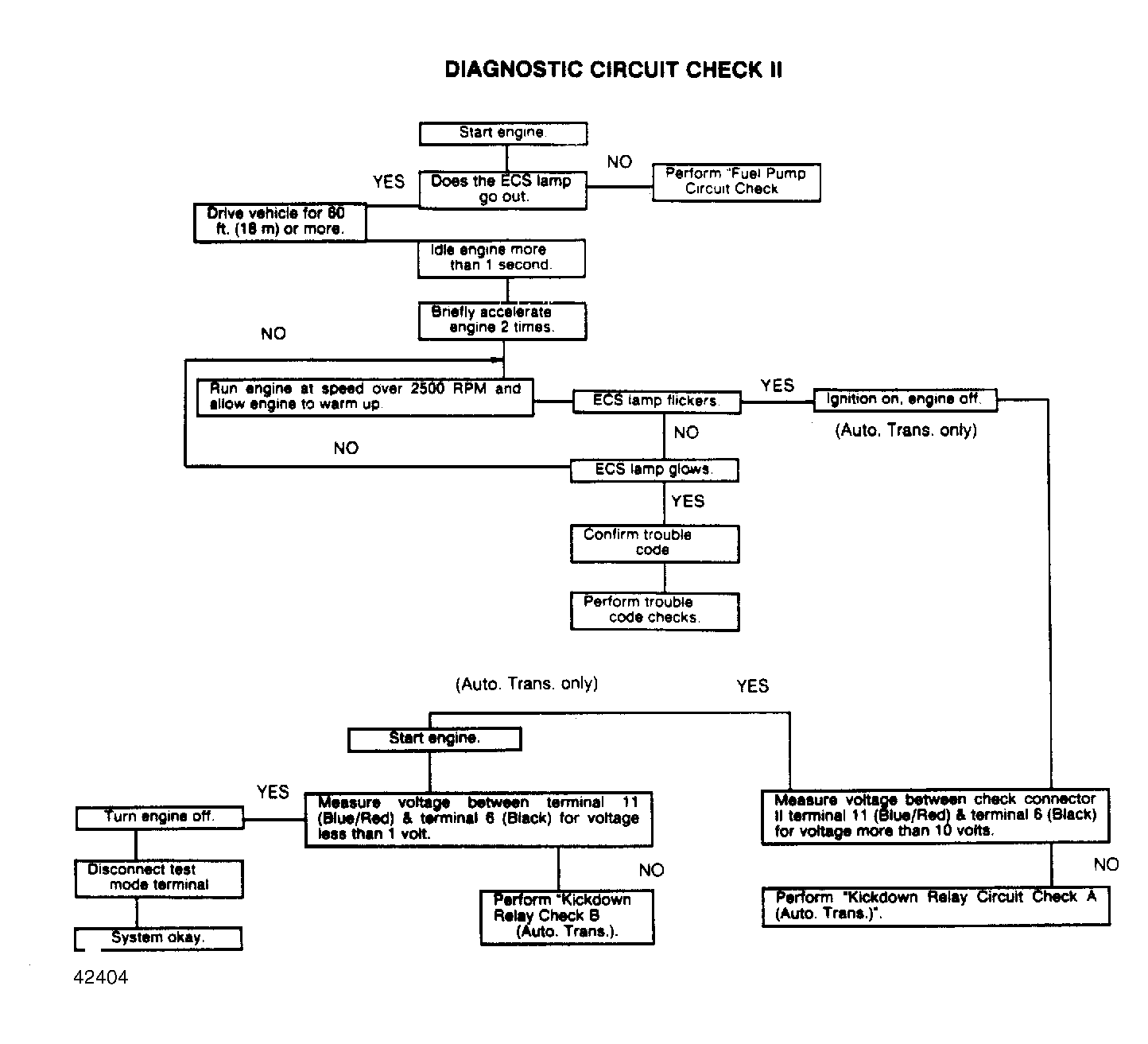

Fig 1: Diagnostic Circuit Check II
