Float Drop

After checking float level, gently lift float until float stop contacts air horn projection. Hold float up in this position.
Measure clearance between float tab and needle valve. Adjust by bending float stop. See Fig 1 .

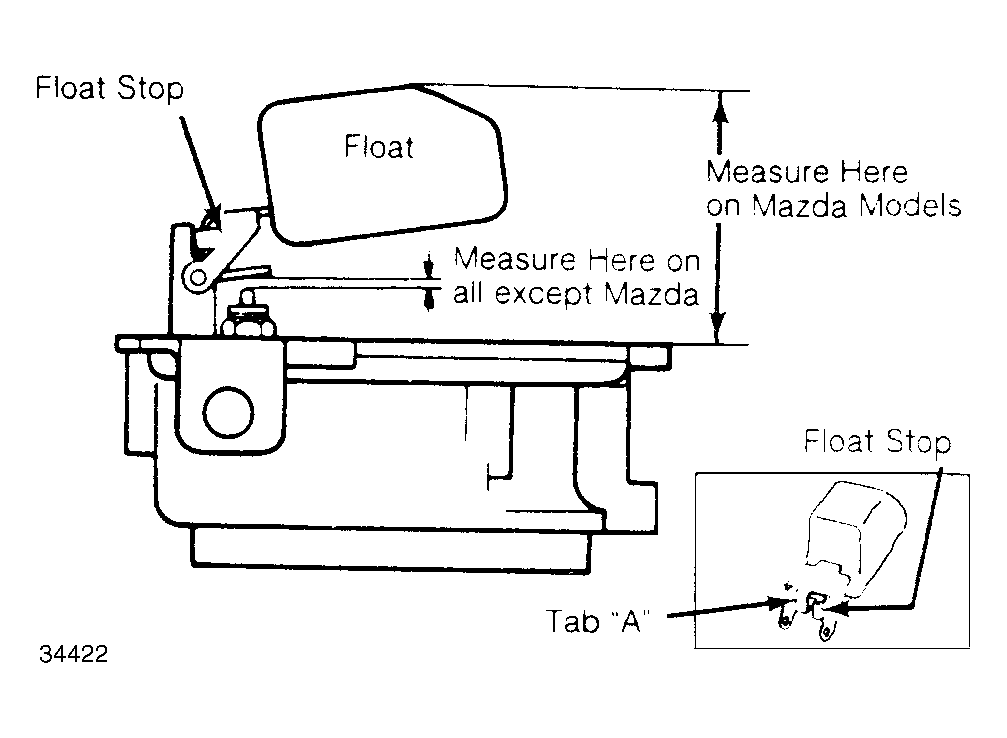

Fig 1: Float Drop Adjustment Bend float stop to adjust.

G34422
