Carburetor - HITACHI 2-Bbl: Overhaul: Reassembly

To reassemble, reverse disassembly procedure using all new gaskets, taking care not to mistake primary and secondary barrel parts. Install piston return spring with hook portion facing downward.

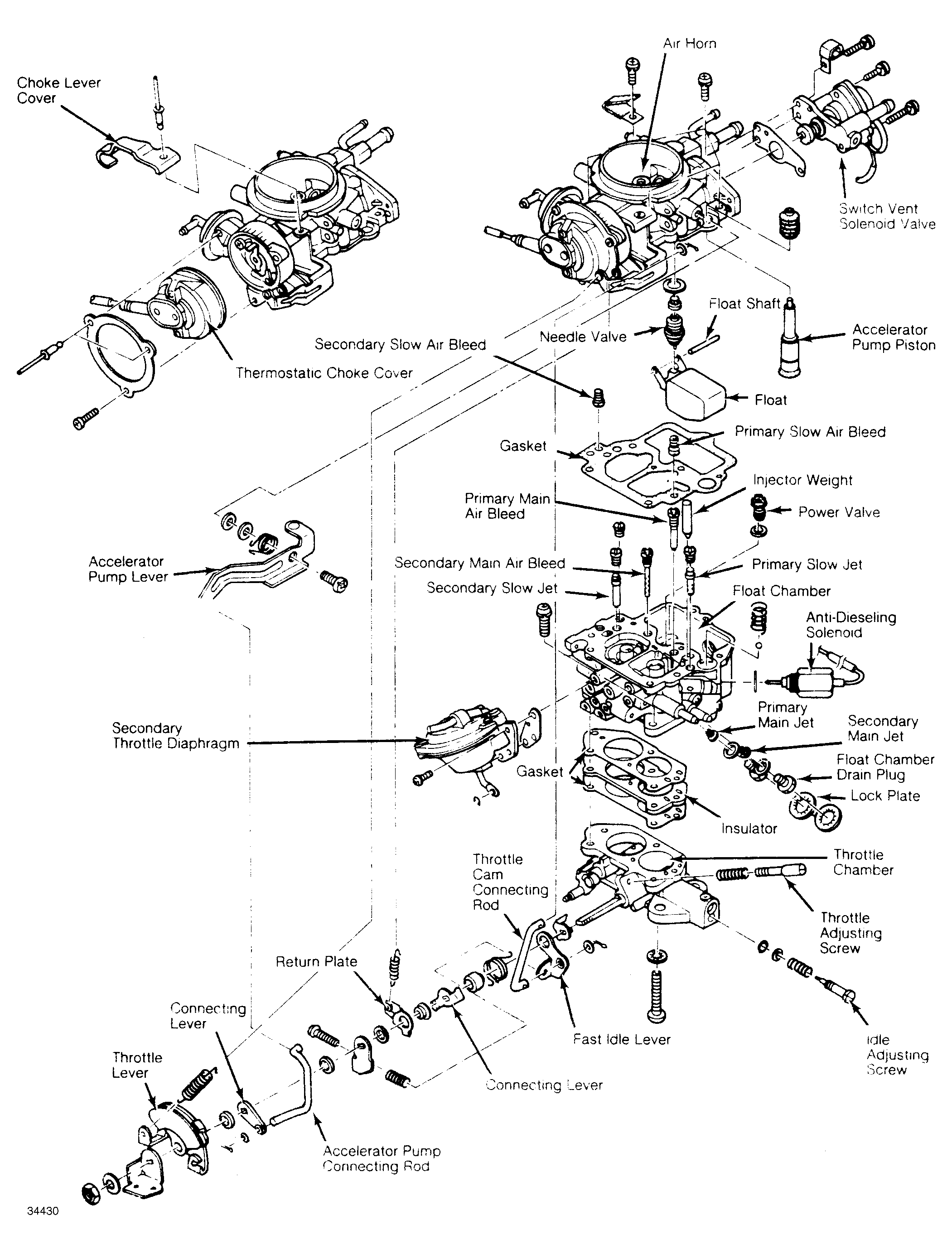

Fig 1: Exploded View of Subaru Carburetor
G34430
