Self-Diagnostic System
›
Initial Trouble Shooting Code Charts
Initial Trouble Shooting Code Charts

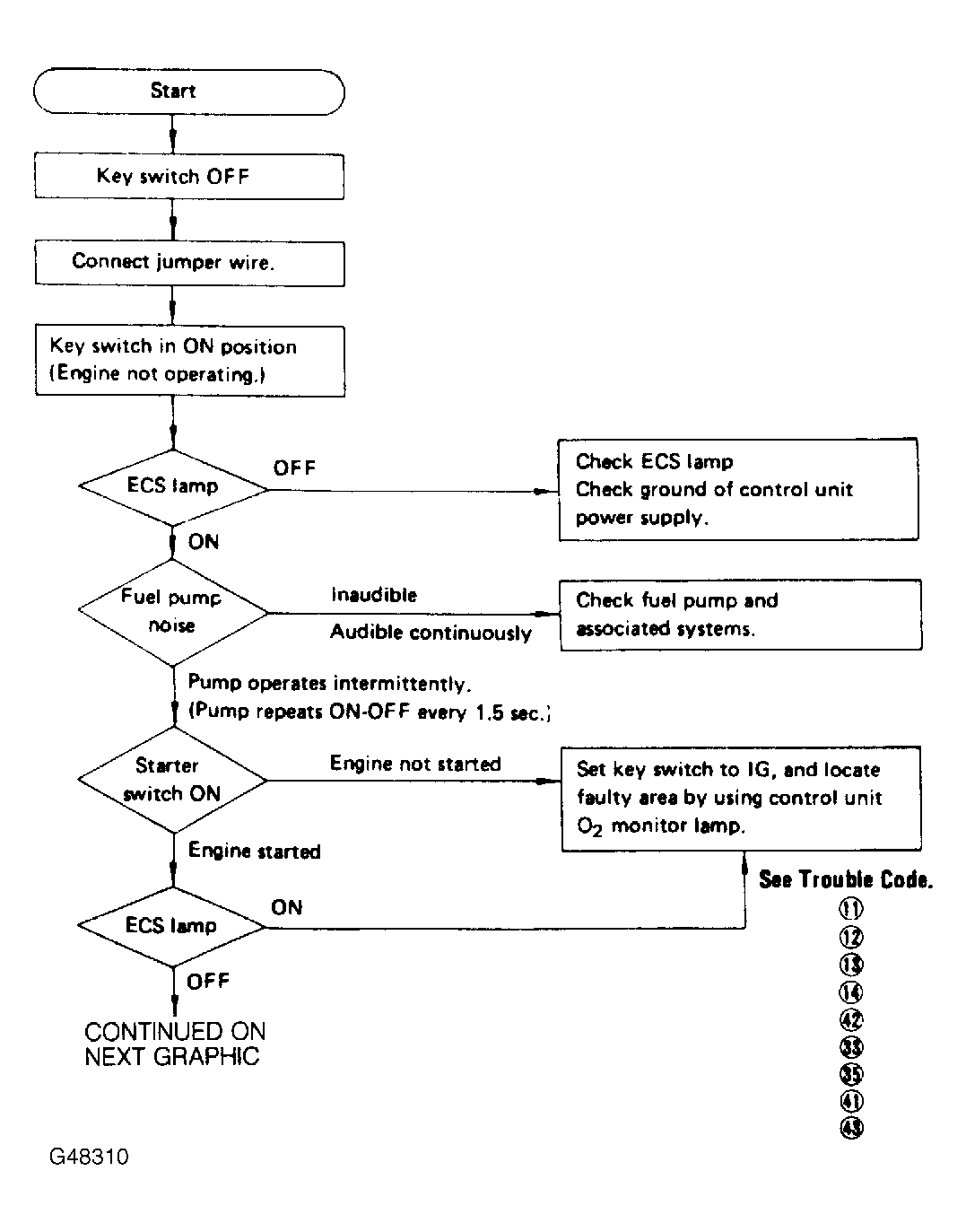

Fig 1: Initial Trouble Shooting Code Charts (Part 1 of 2)

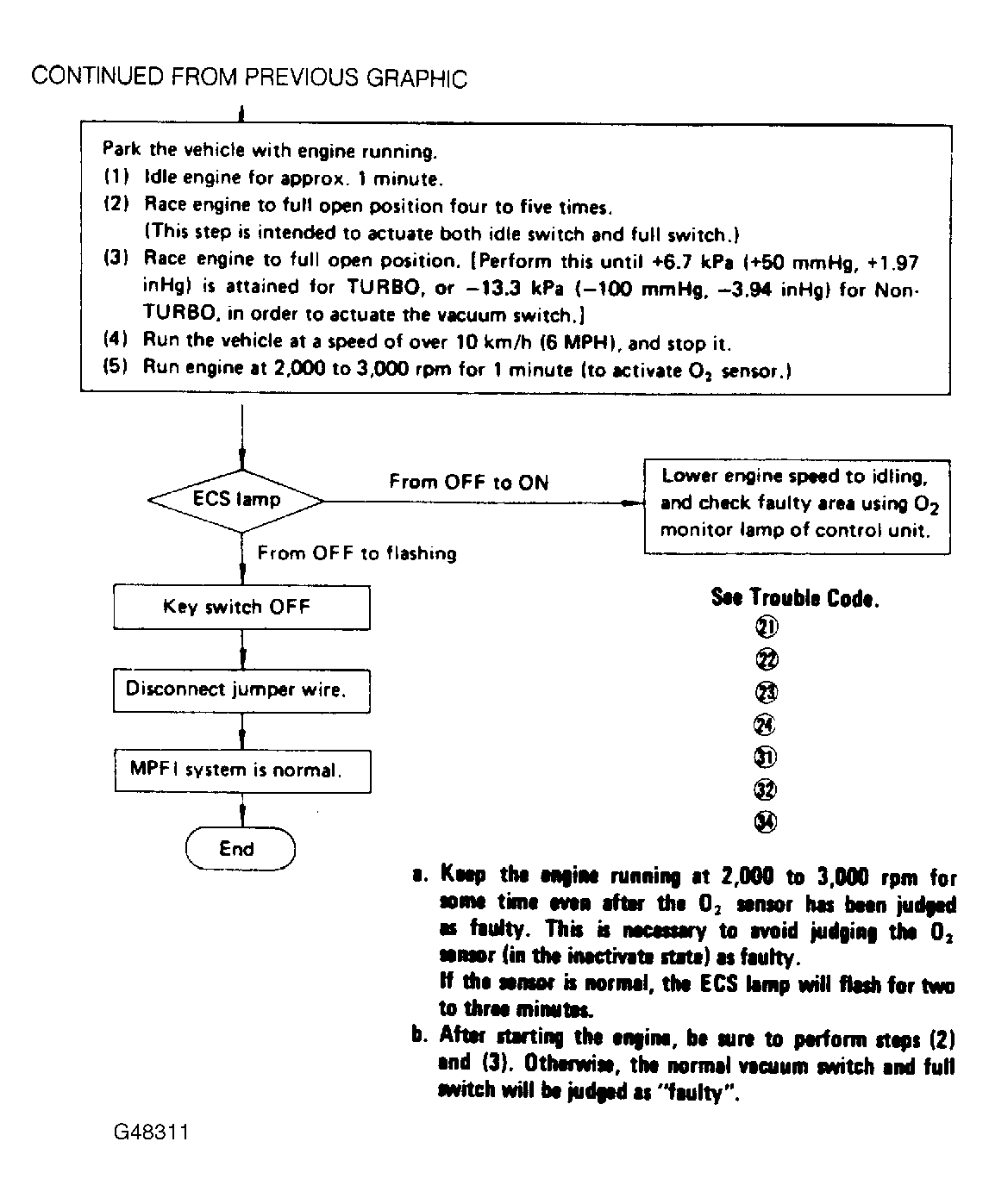

Fig 2: Initial Trouble Shooting Code Charts (Part 2 of 2)
