Fuel Injection System - BOSCH AFC: Wiring Diagram

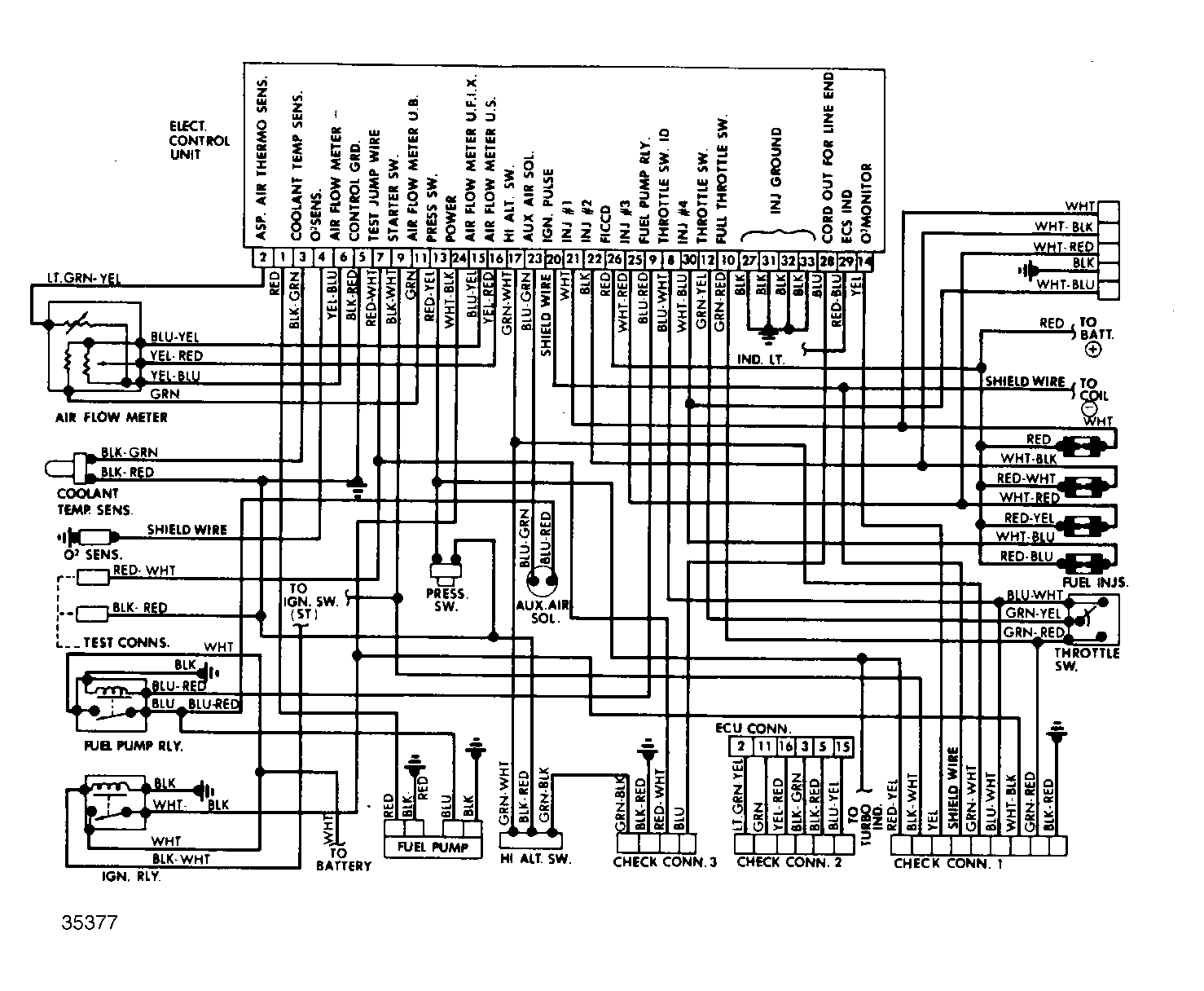

Fig 1: Fuel Injection Wiring Diagram (1.8L Turbo)
G35377
