Service Point Locations

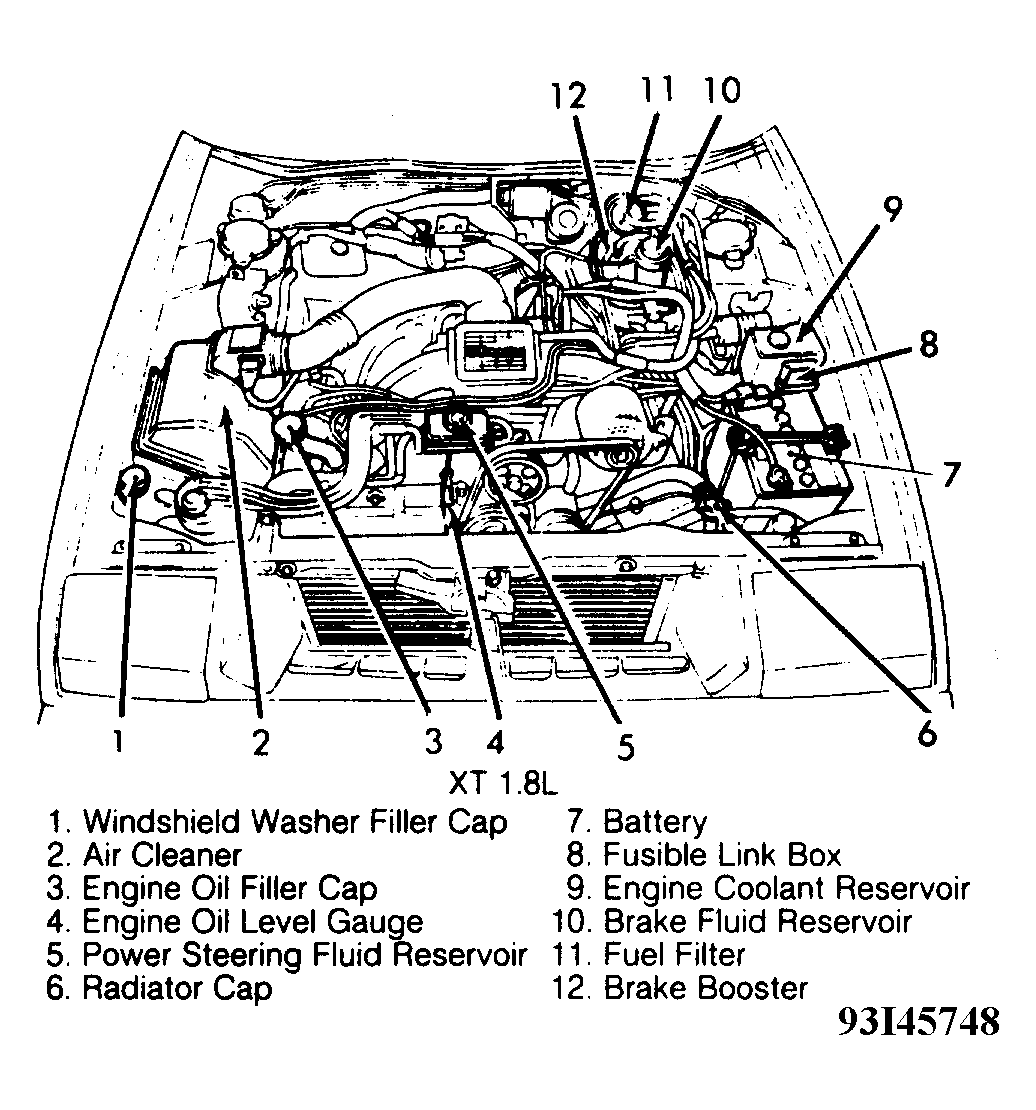

Fig 1: Service Point Locations (1.8L 4-Cylinder)
G93I45748Courtesy of SUBARU AMERICA, INC.

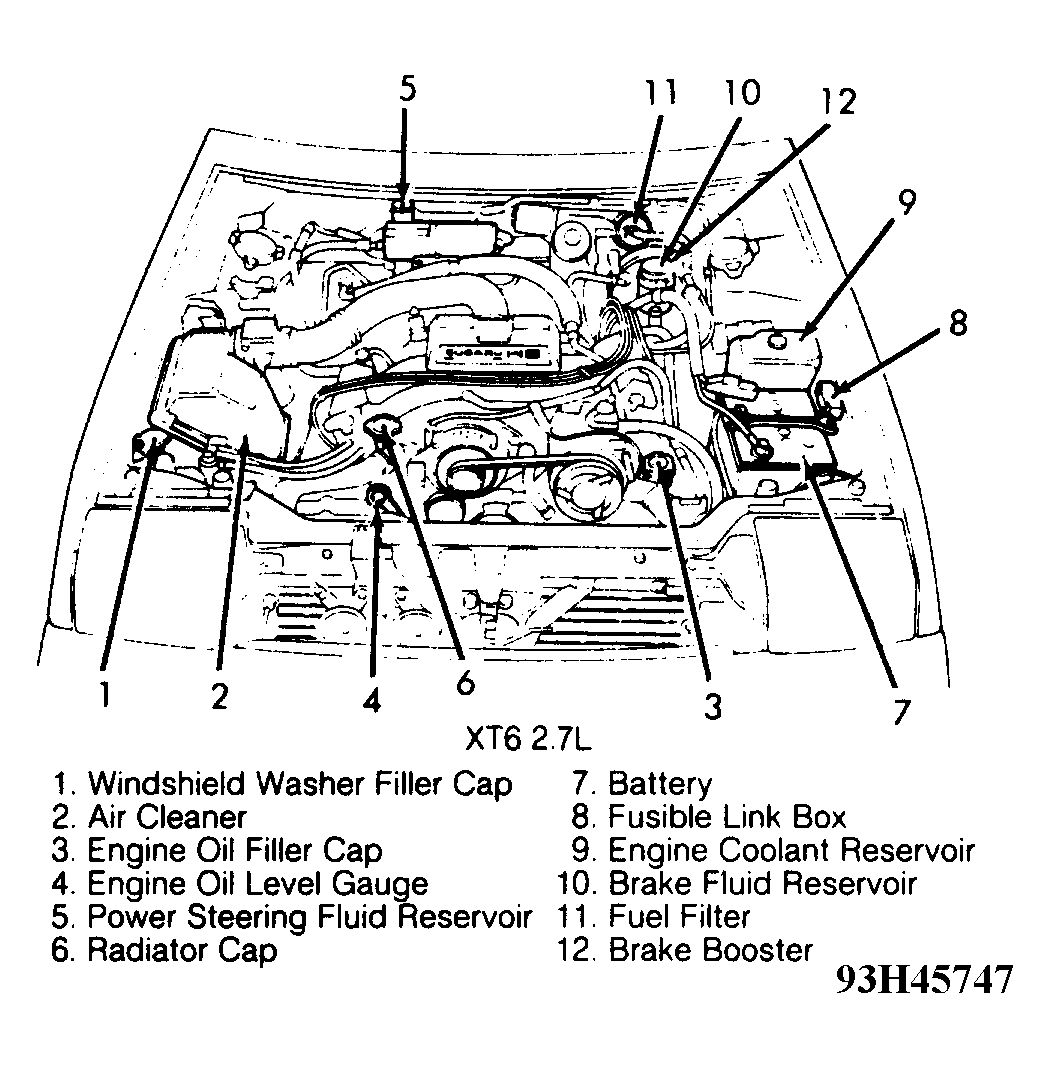

Fig 2: Service Point Locations (2.7L 6-Cylinder)
G93H45747Courtesy of SUBARU AMERICA, INC.
