Flow Chart - Trouble Code 25

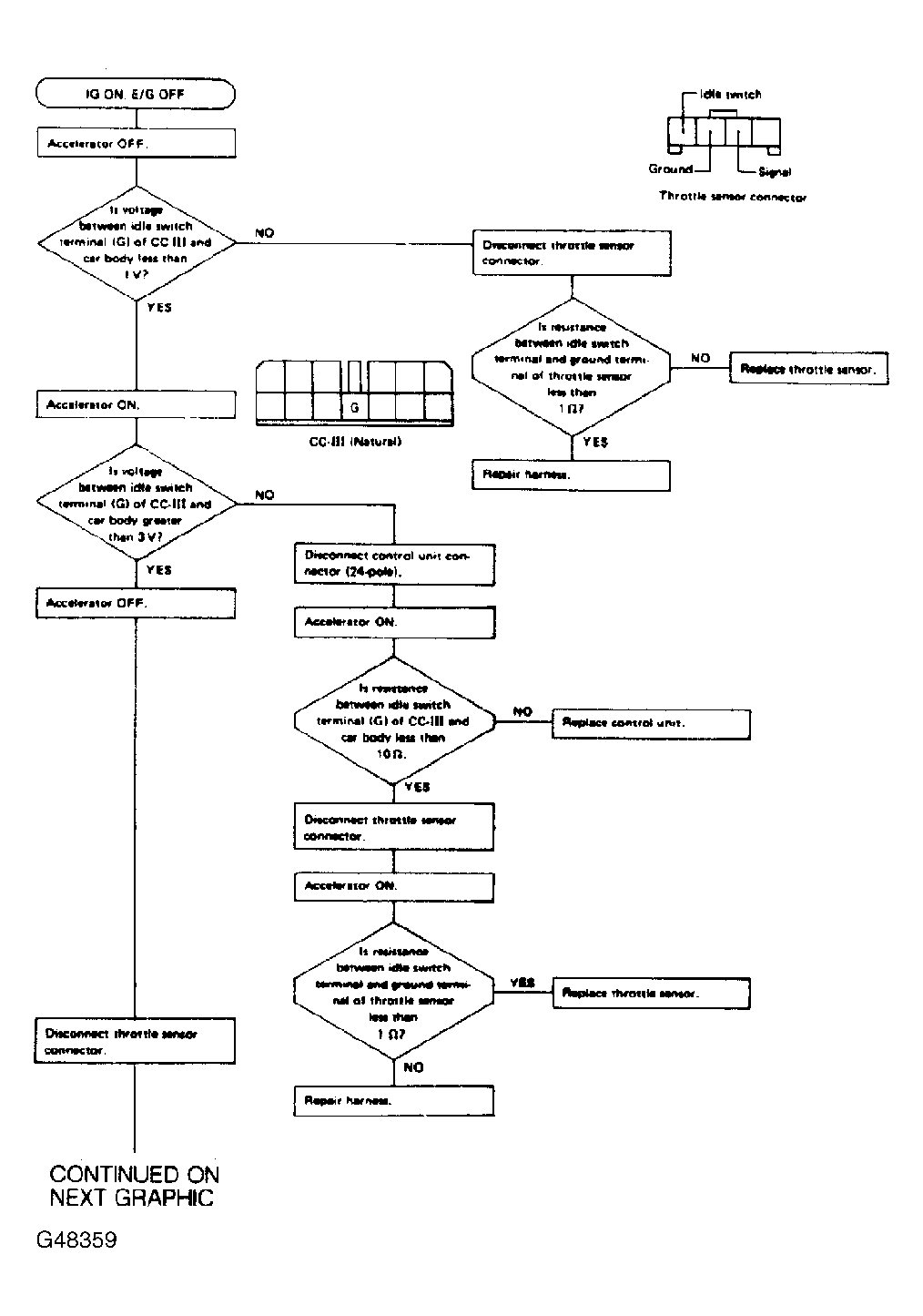

Fig 1: Trouble Code 25 (1 of 2)

G48359

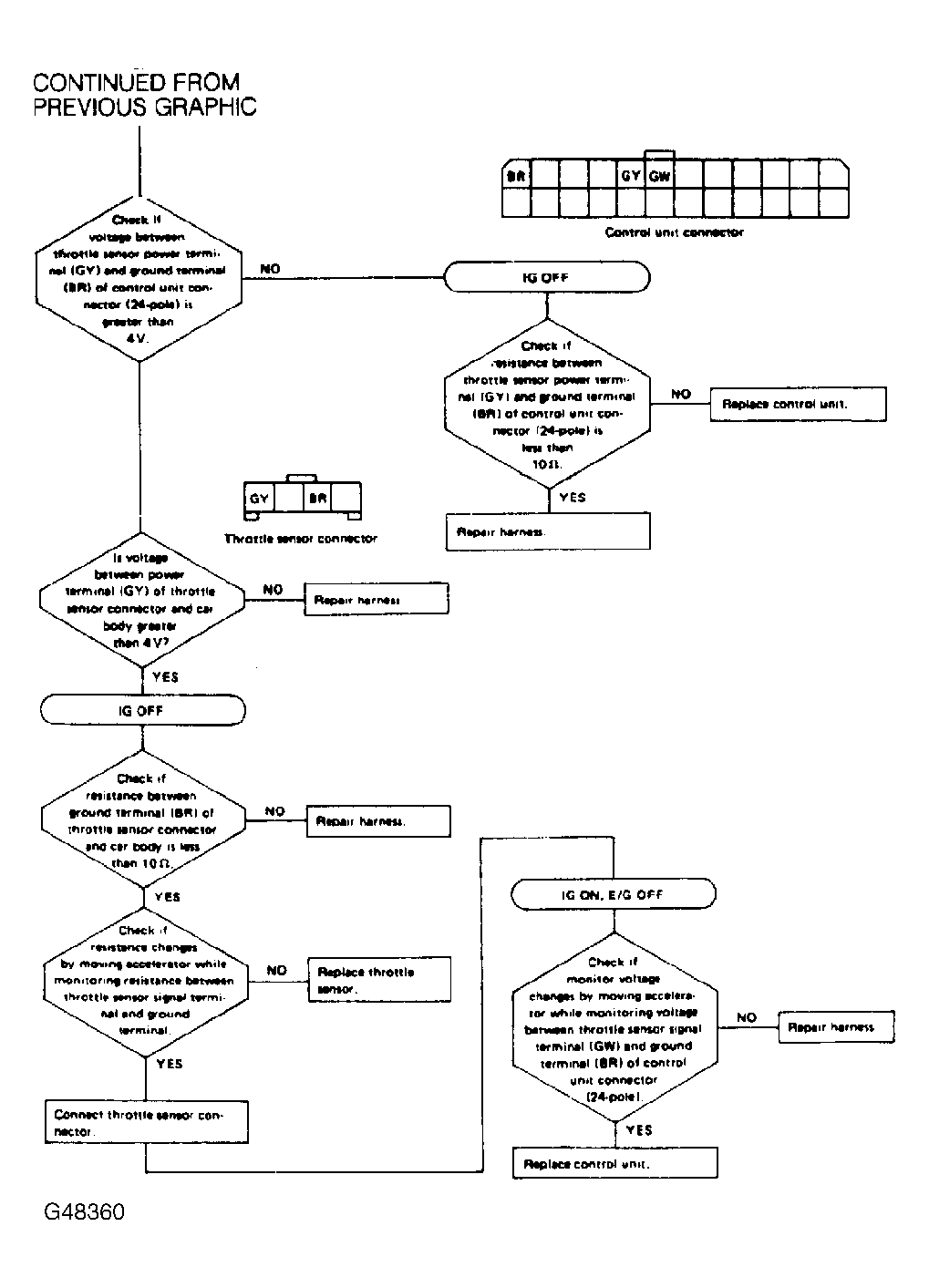

Fig 2: Trouble Code 25 (2 of 2)

G48360
