Fuel INJ System - SPFI
›
Trouble Shooting
›
Flow Chart - Trouble Code 46
Flow Chart - Trouble Code 46

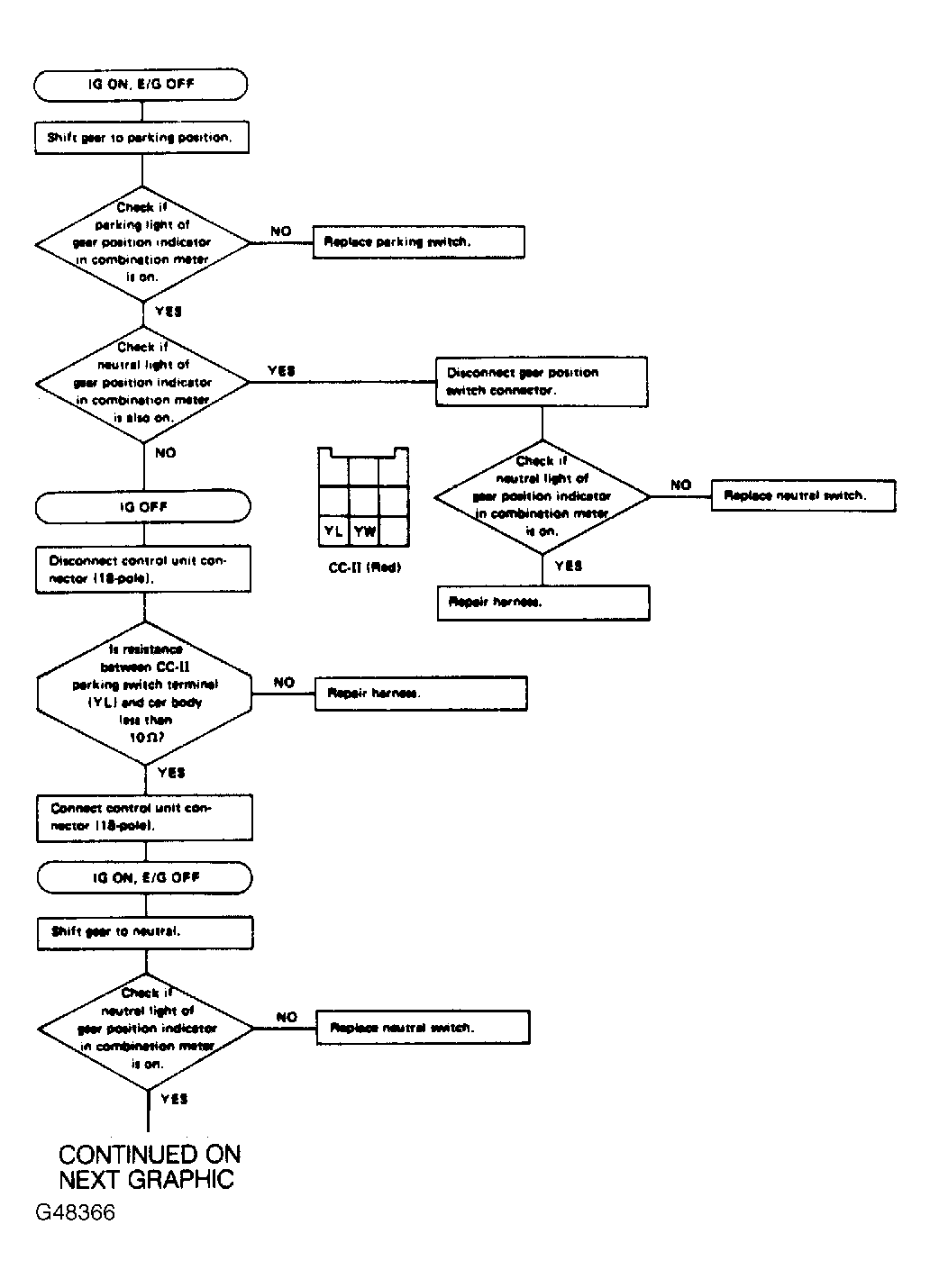

Fig 1: Trouble Code 46 (1 of 2)
Fig 2: Trouble Code 46 (2 of 2)
