Flow Chart - No Start

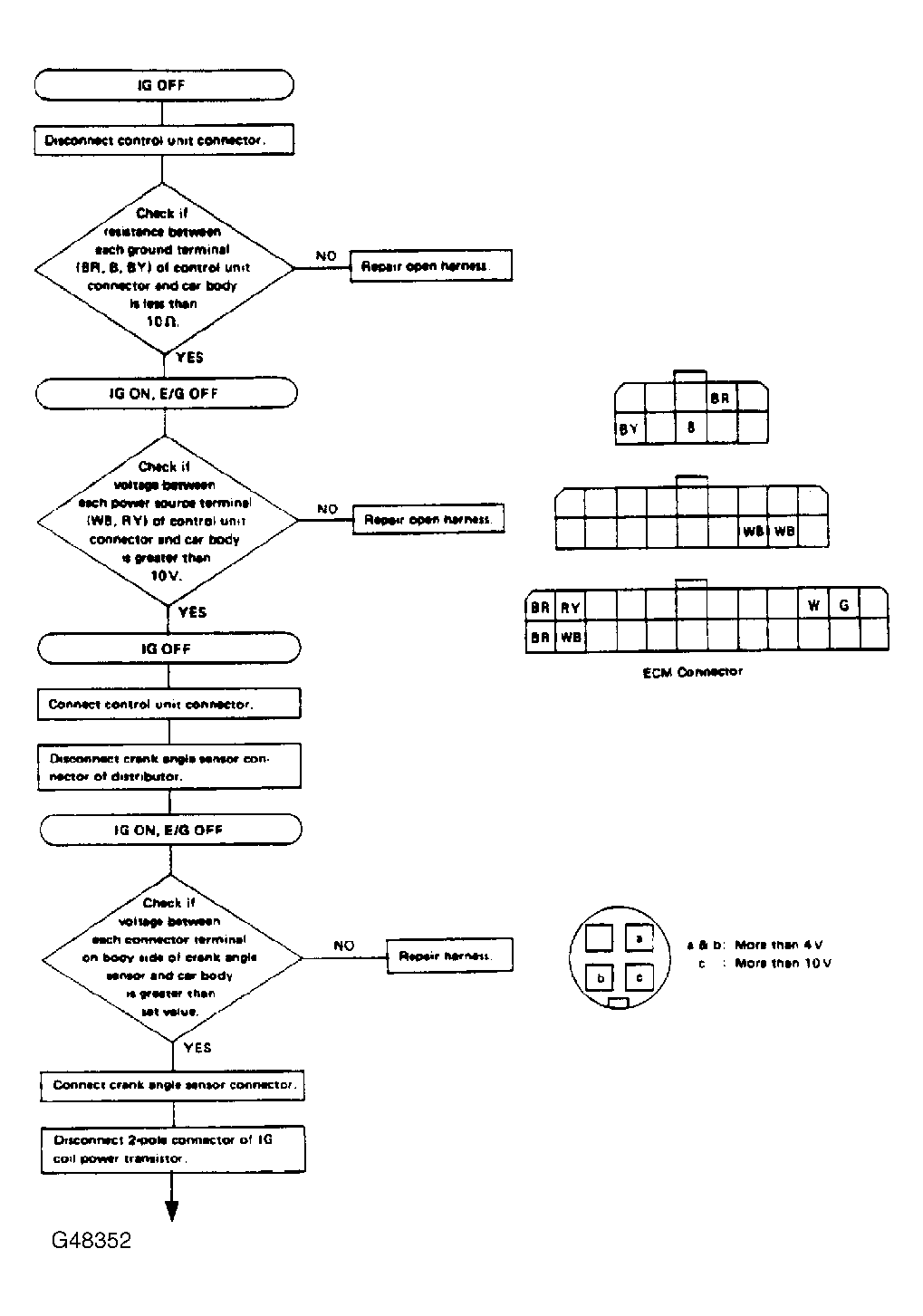

Fig 1: No Start (1 of 4)

G48352

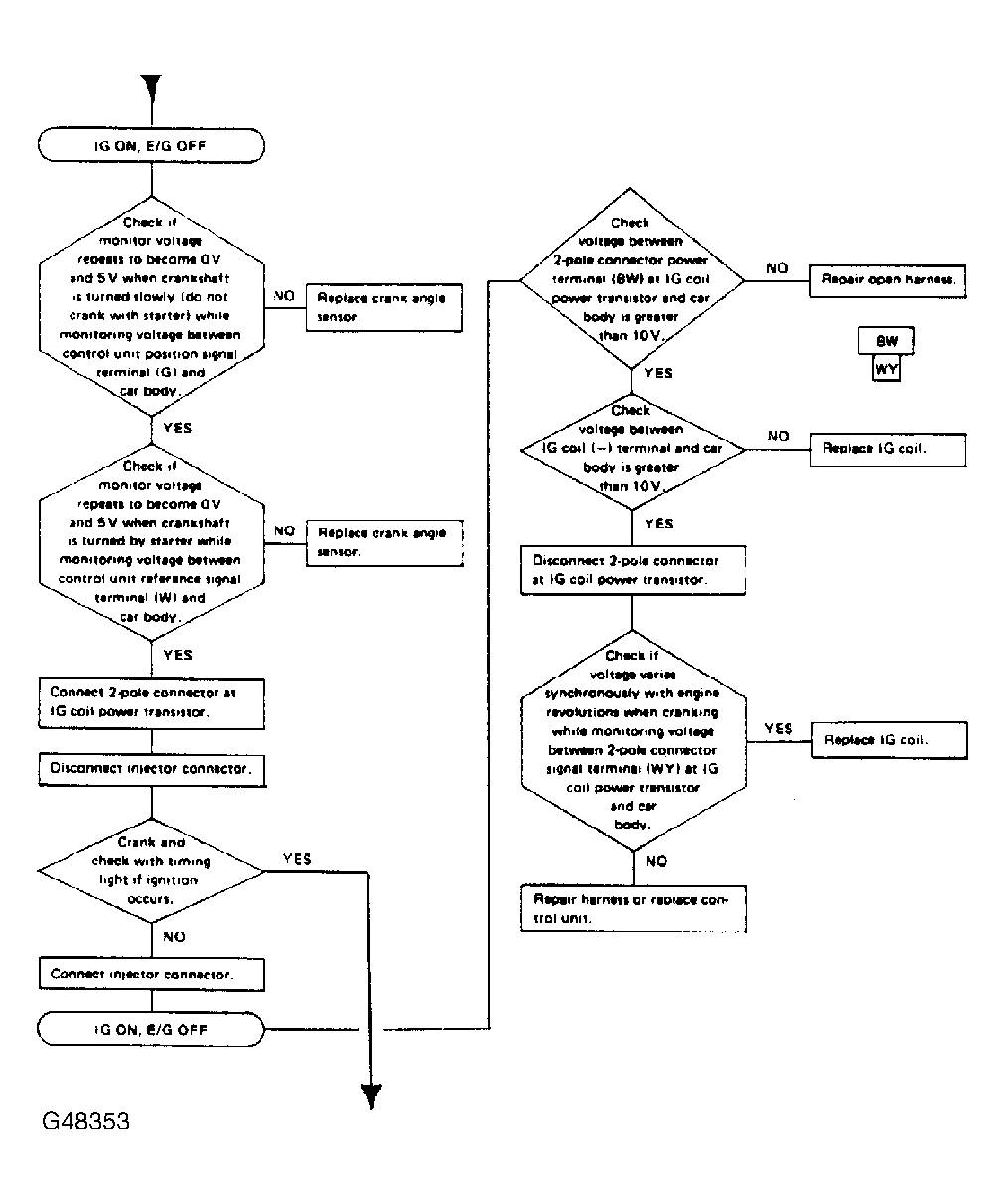

Fig 2: No Start (2 of 4)

G48353

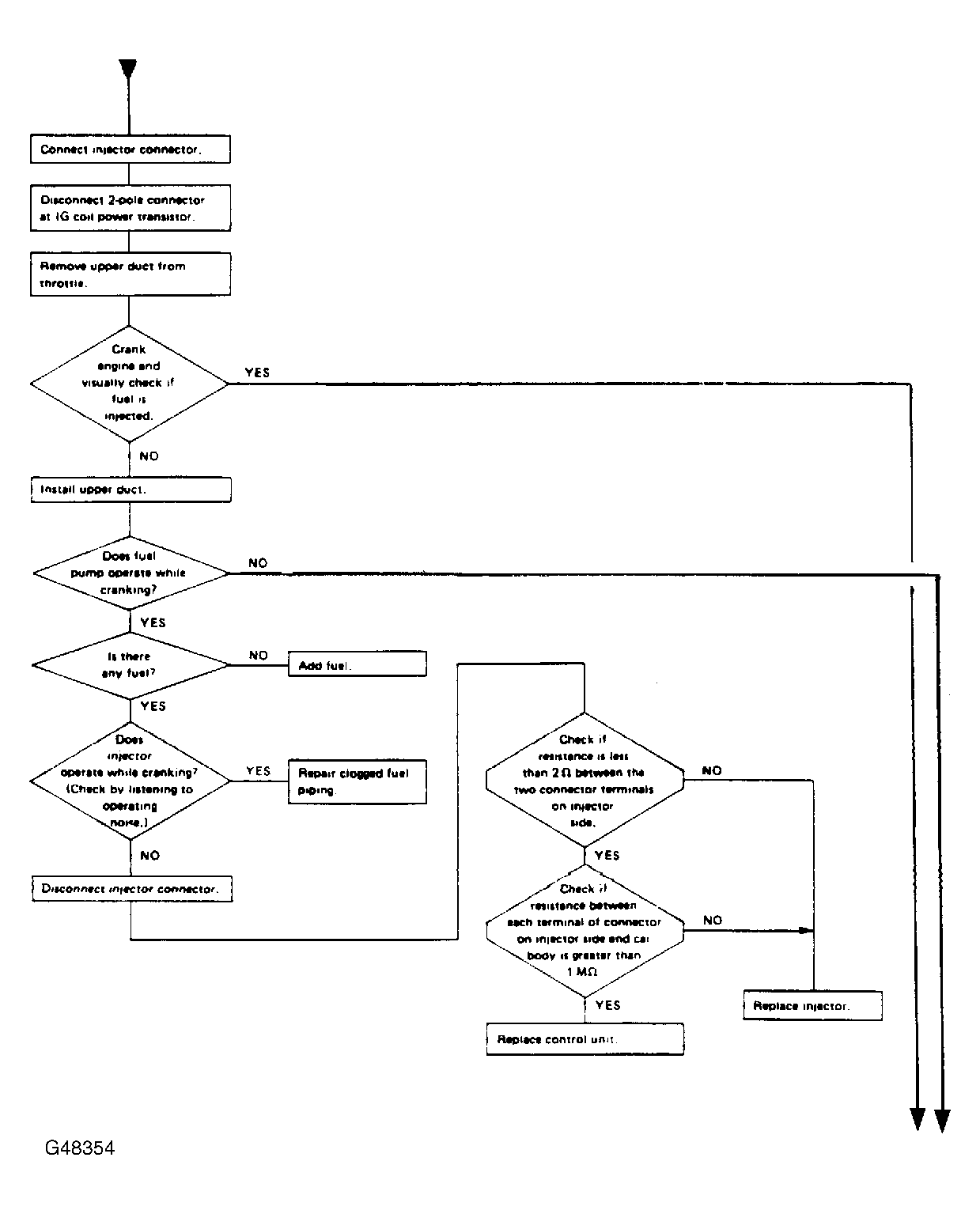

Fig 3: No Start (3 of 4)

G48354

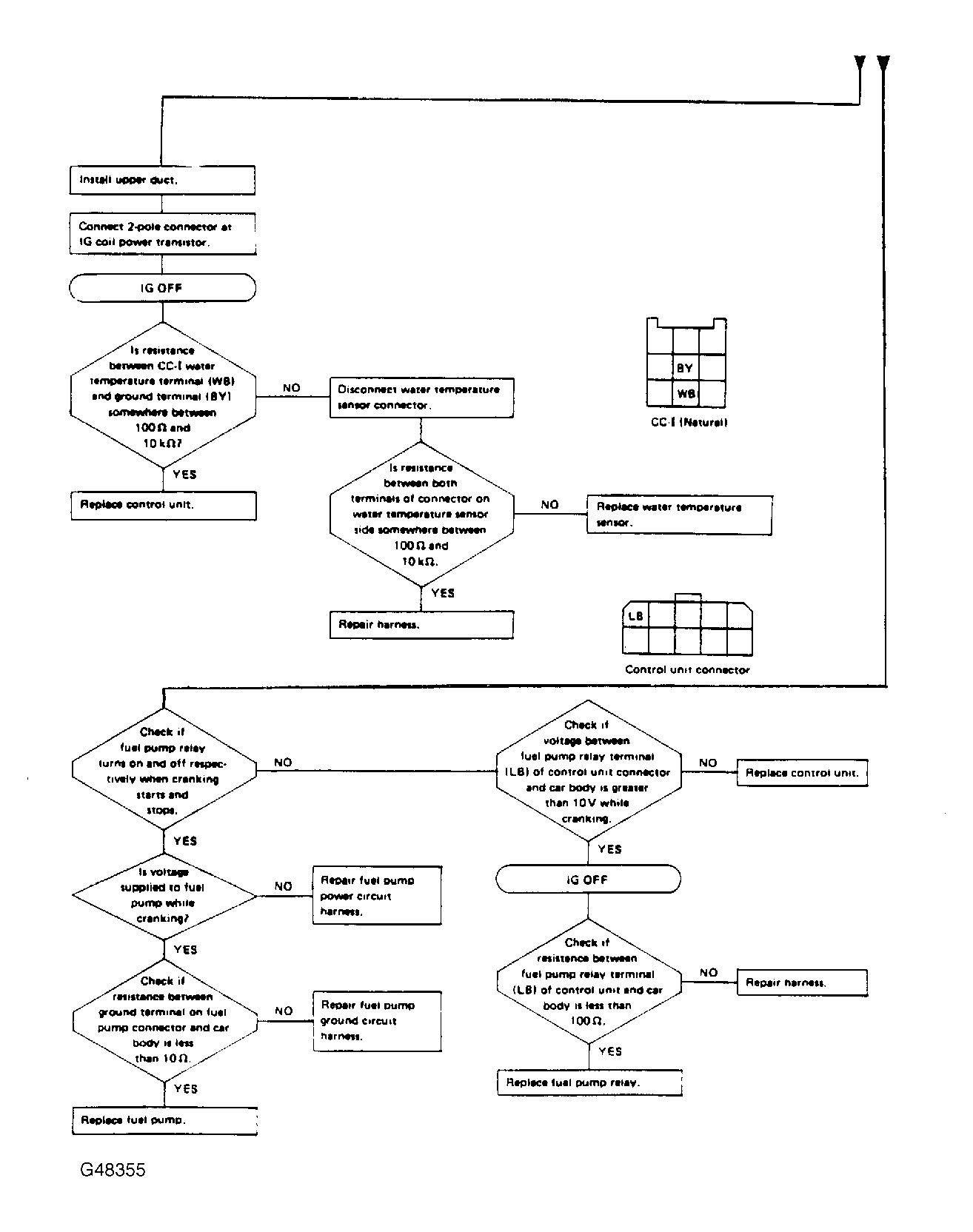

Fig 4: No Start (4 of 4)

G48355
