Carburetor - HITACHI 2-Bbl: Overhaul: Reassembly

1. To reassemble, reverse the disassembly procedure using all new gaskets, taking care not to mistake primary and secondary barrel parts.
2. Install piston return spring with hook portion facing downward.

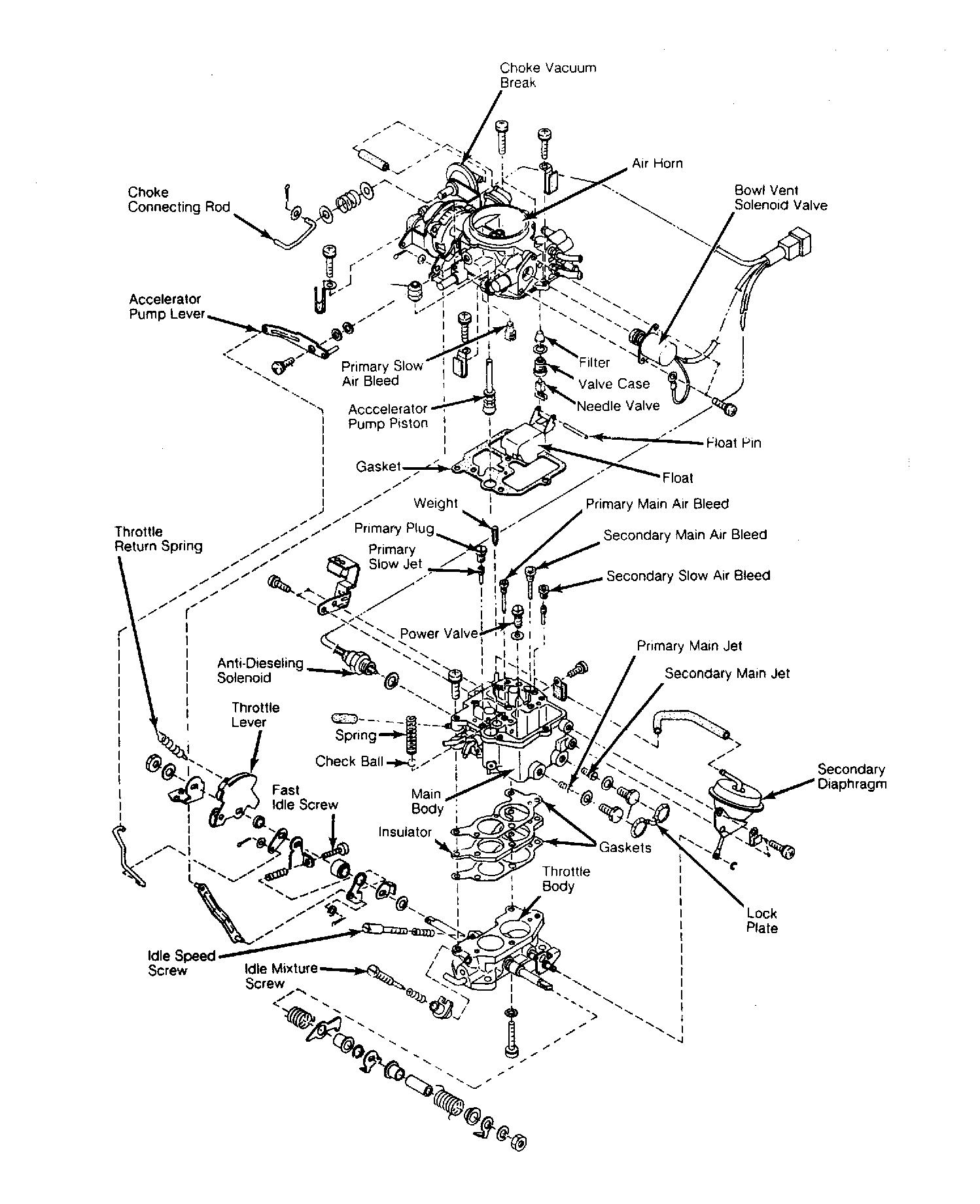

Fig 1: Exploded View of Carburetor (Except Justy)

Courtesy of SUBARU OF AMERICA, INC.
