D-Check Mode & Clear Memory Mode

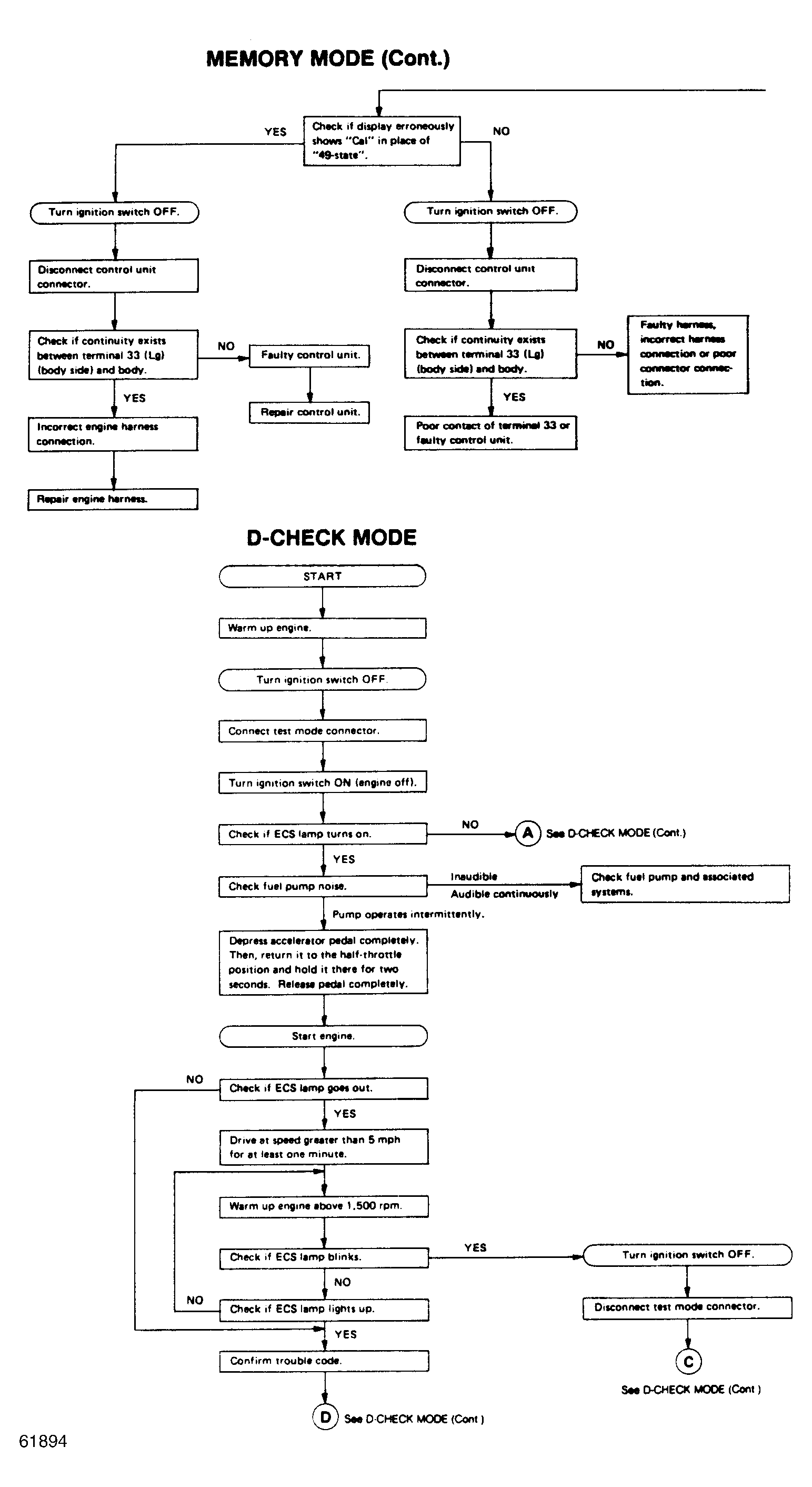

Fig 1: Memory Mode & D-Check Mode (1 Of 2)

G61894

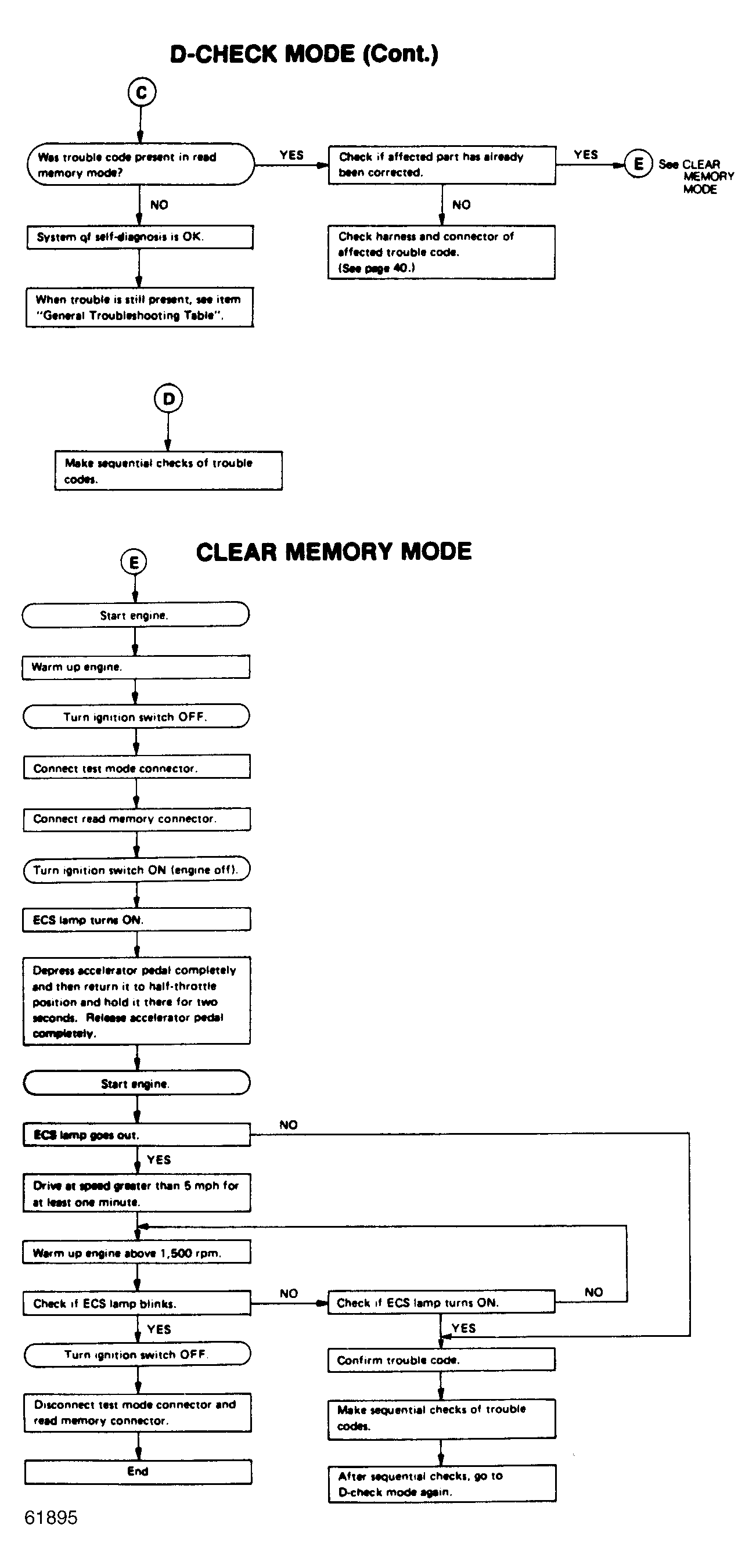

Fig 2: D-Check Mode & Clear Memory Mode (2 Of 2)

G61895
