Trouble Code 12, Back-Up System

Fig 1: Trouble Code 12, Back-Up System (1 of 2)

G61827

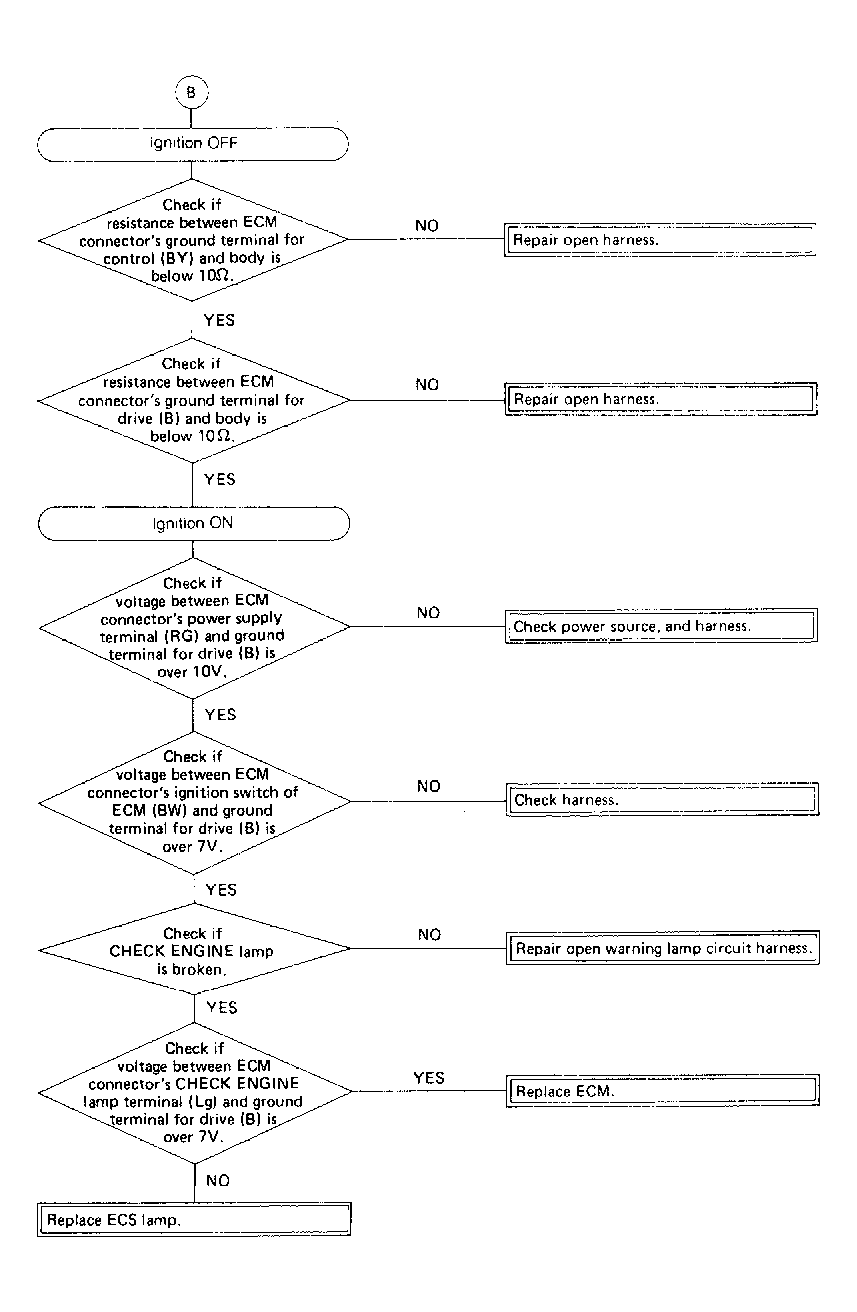

Fig 2: Trouble Code 12, Back-Up System (2 of 2)

G61828
