Wiring Diagrams

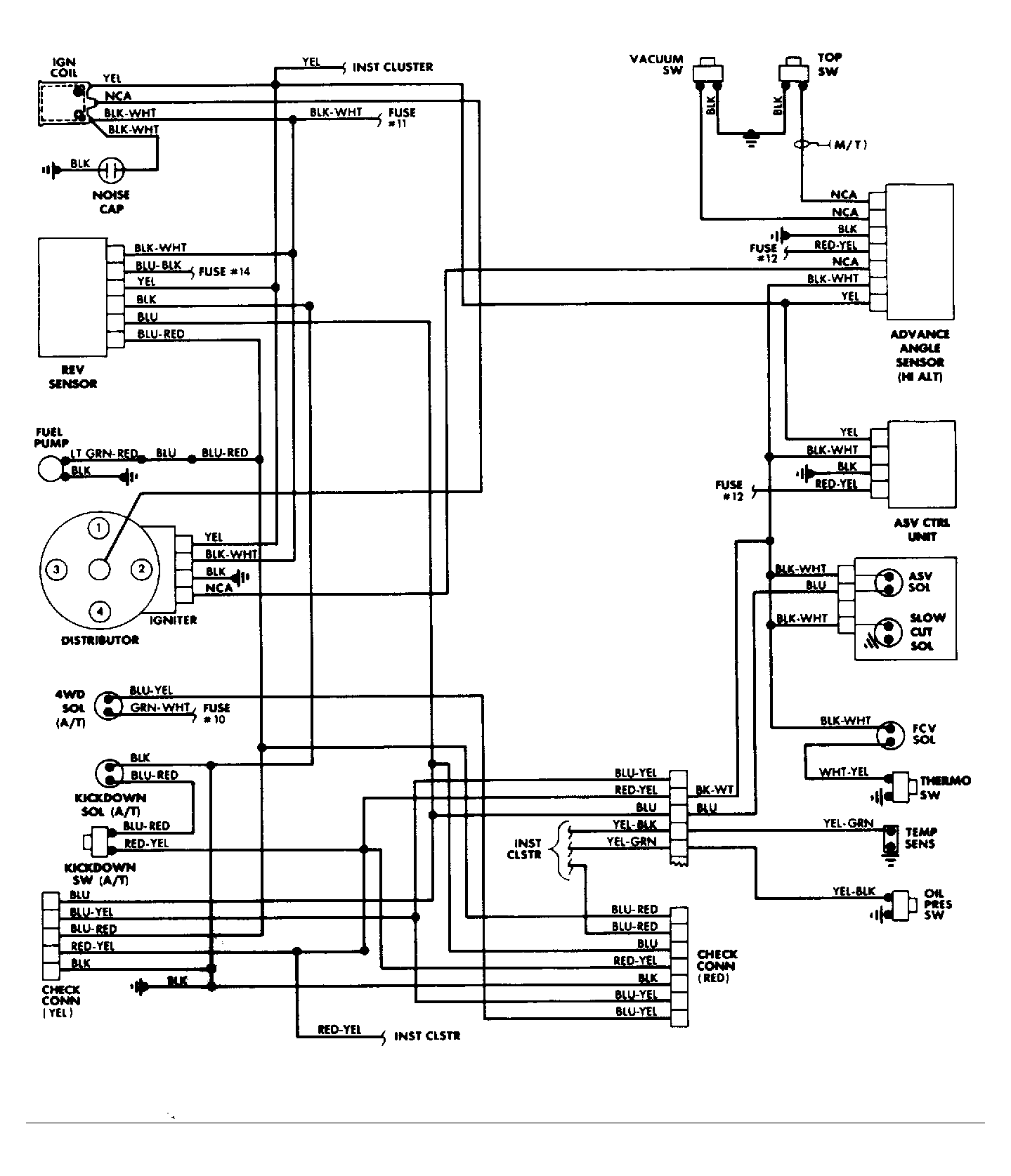

Fig 1: Wiring Diagram For All Carbureted Models Except Justy
G61847

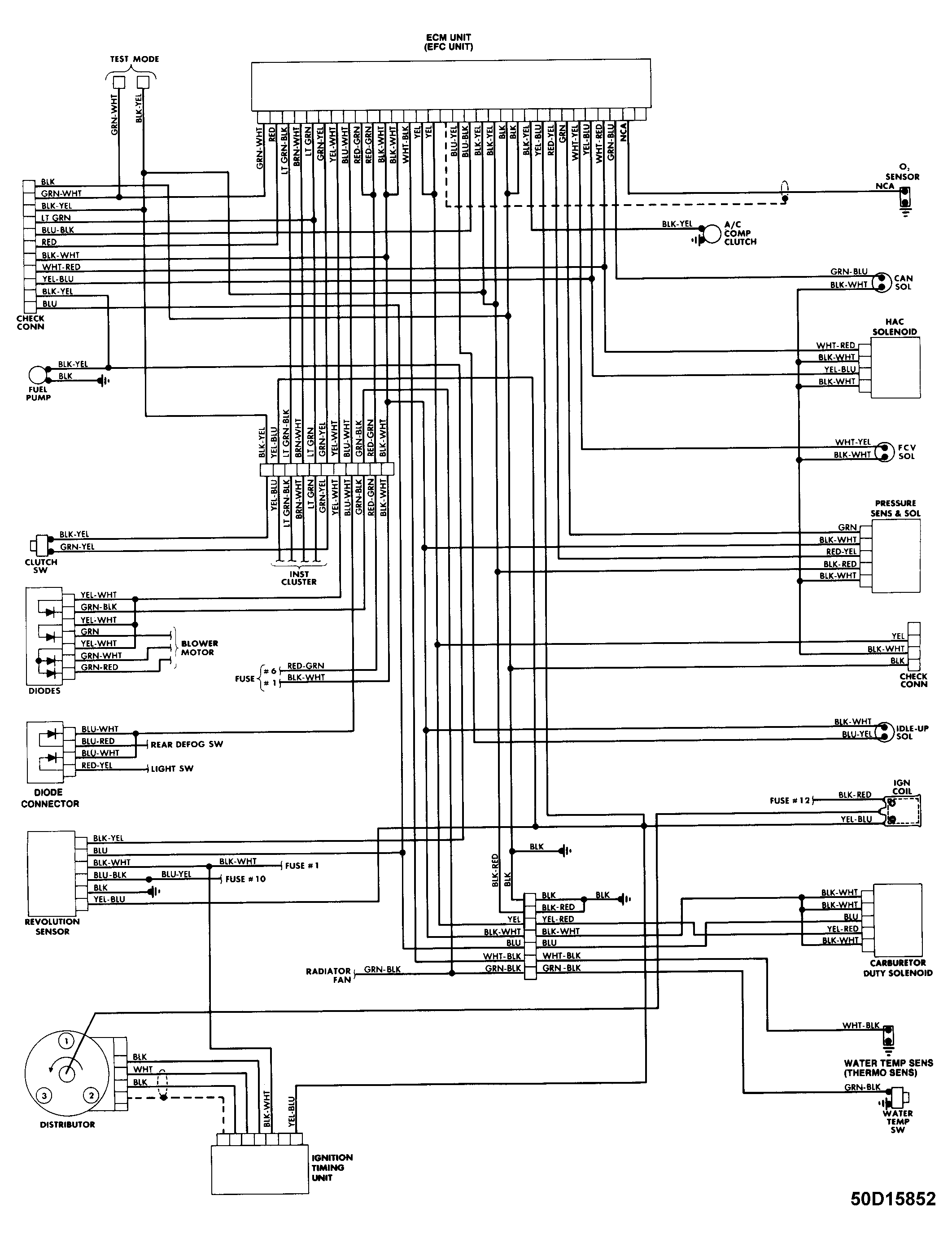

Fig 2: Wiring Diagram For Justy
G50D15852
