Wiring Diagrams

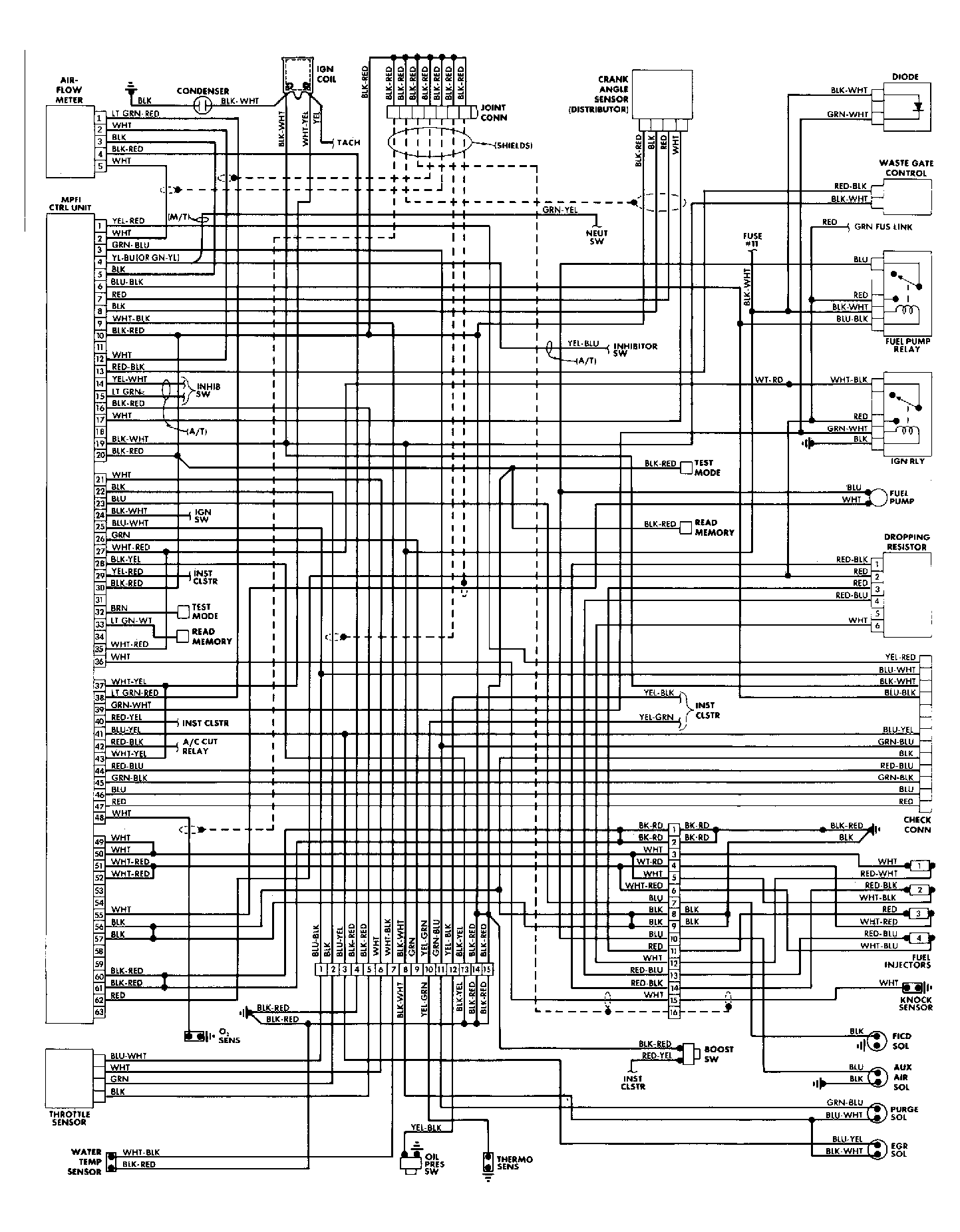

Fig 1: MPFI Wiring Diagram (X/T)

G61885

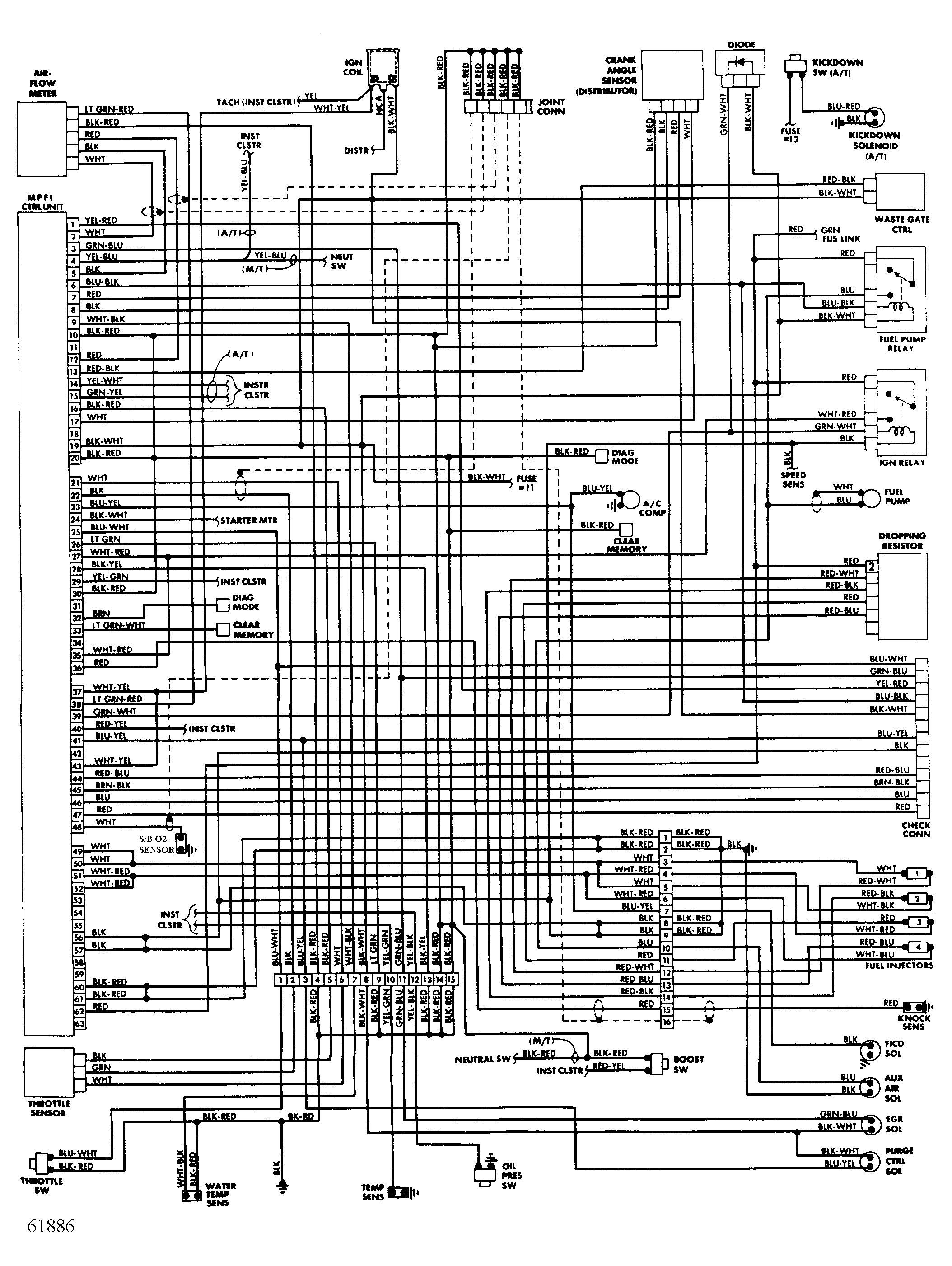

Fig 2: MPFI Wiring Diagram (Except X/T)

G61886
