Wiring Diagrams

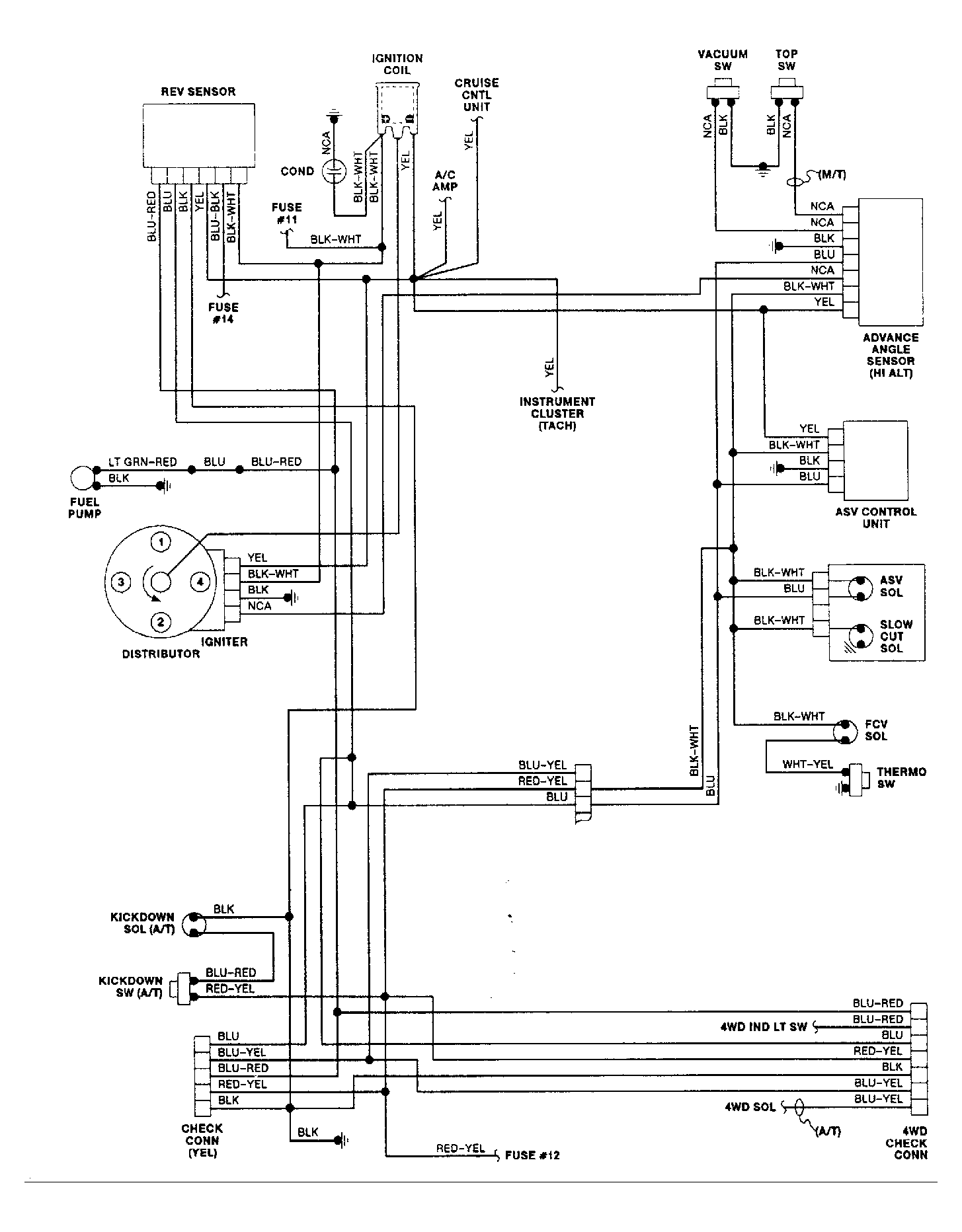

Fig 1: Wiring Diagram For Hatchback

G95086

Fig 2: Wiring Diagram (XT Model)

G95138

Fig 3: Wiring Diagram (Exc. XT Model)

G95139
