Control Unit Wiring Harness

The ignition control unit is located behind the driver's side kick panel. To test wiring to ignition coil and primary circuit, use diagnostic flow chart. See Fig 1.

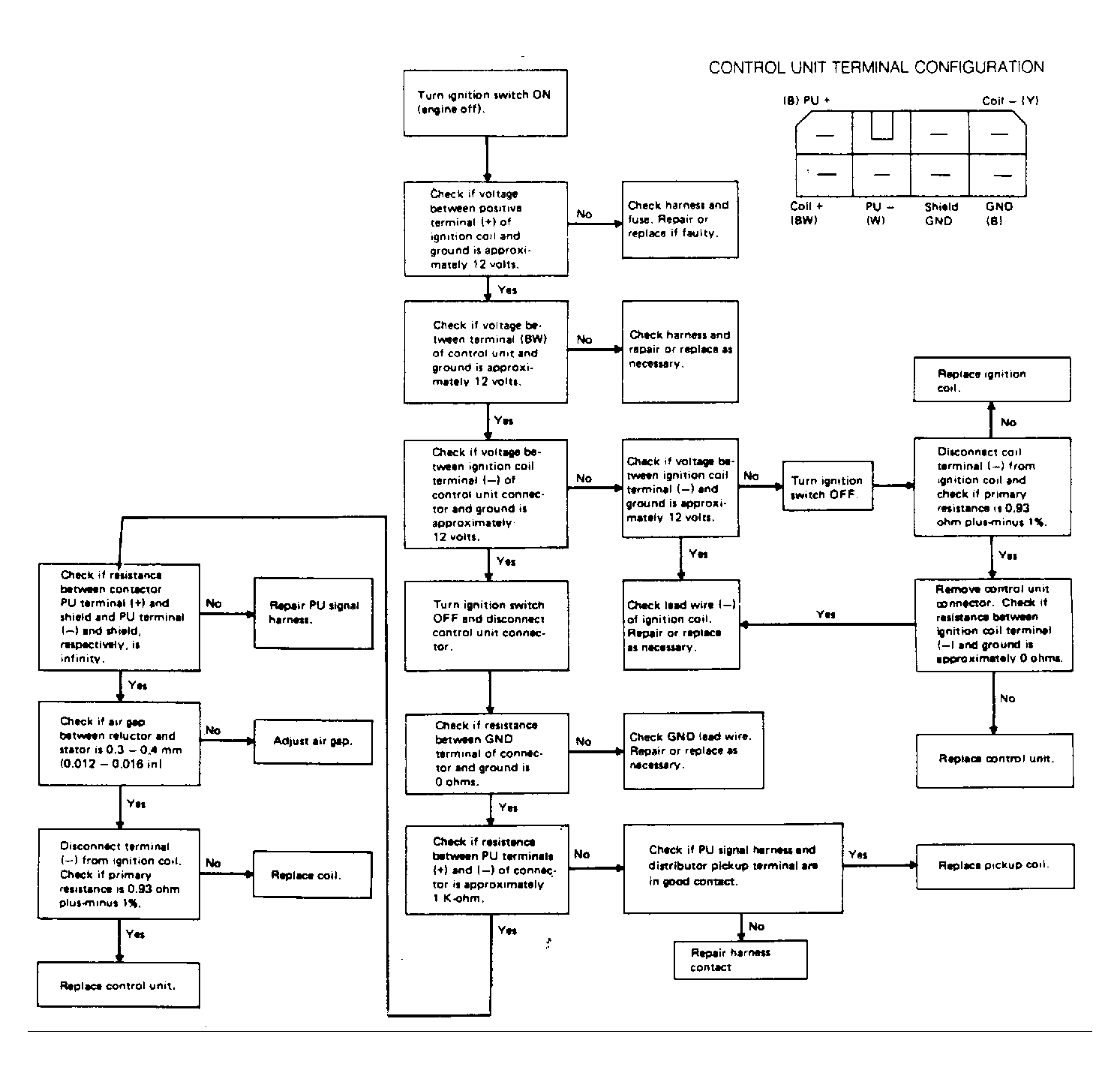

Fig 1: Testing Justy Control Unit Wiring & Ignition Coil Primary Circuit

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Exploded View of Justy Distributor

Courtesy of SUBARU OF AMERICA, INC.
