Trouble Shooting For Engine Starting Failure
›
Trouble Code 24, Bypass Air Control Valve (XT Model)
Trouble Code 24, Bypass Air Control Valve (XT Model)

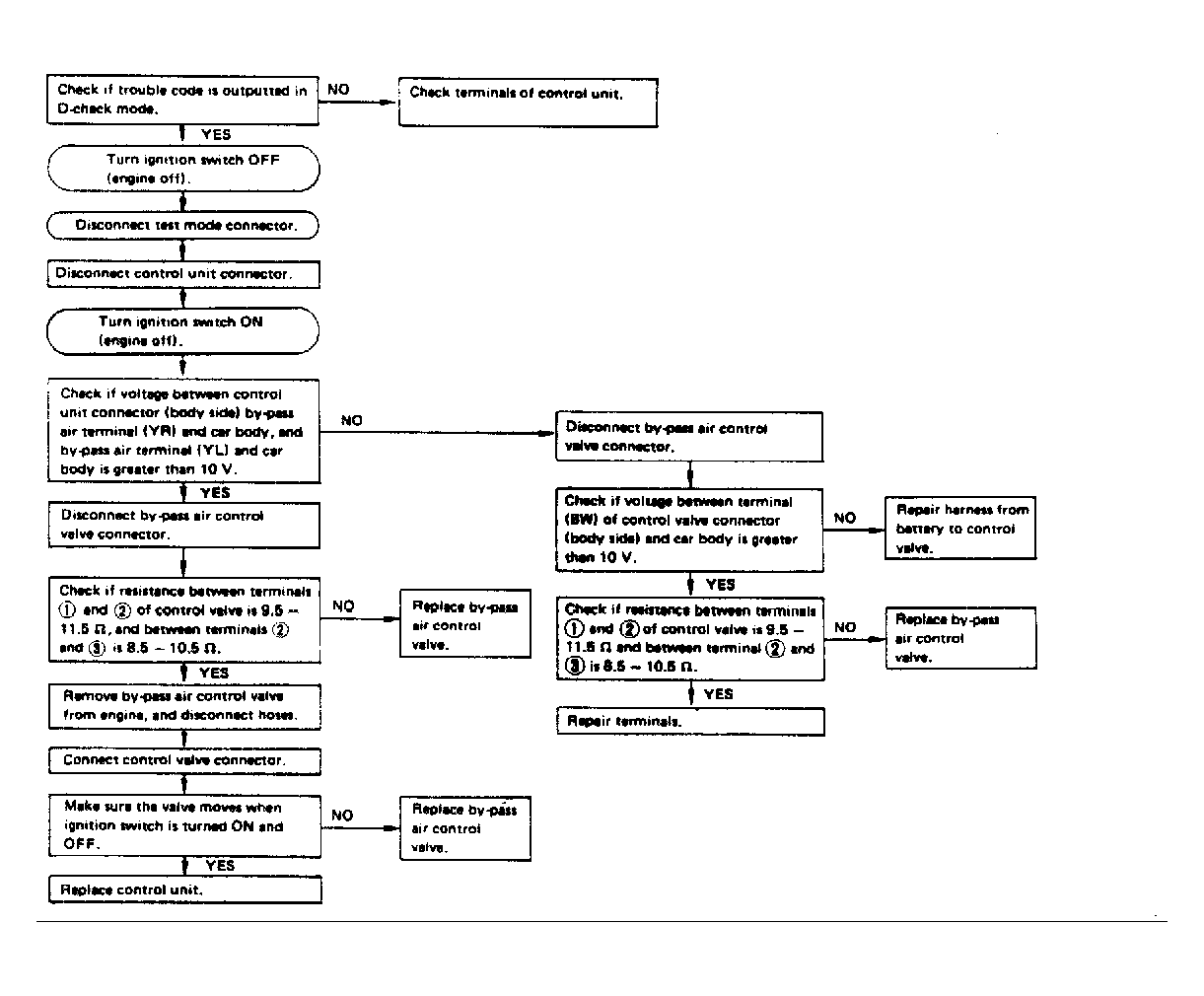

Fig 1: Trouble Code 24, Bypass Air Control Valve (XT Model)
