New Trouble Code 44 For MPI Fuel System (11-29-88)
Publication date: 1988-01-14Reference number: 11-29-88
NEW TROUBLE CODE 44 FOR MPI FUEL SYSTEM
TECHNICAL SERVICE BULLETIN
Reference Number(s): 11-29-88, Date of Issue:
January 14, 1988
TROUBLE CODE 44 MPI FUEL SYSTEM
APPLICATION
Model(s): 1988 "L" Series
Group: Emission Systems
Bulletin No.: 11-29-88
Date: January 14, 1988
SERVICE INFORMATION

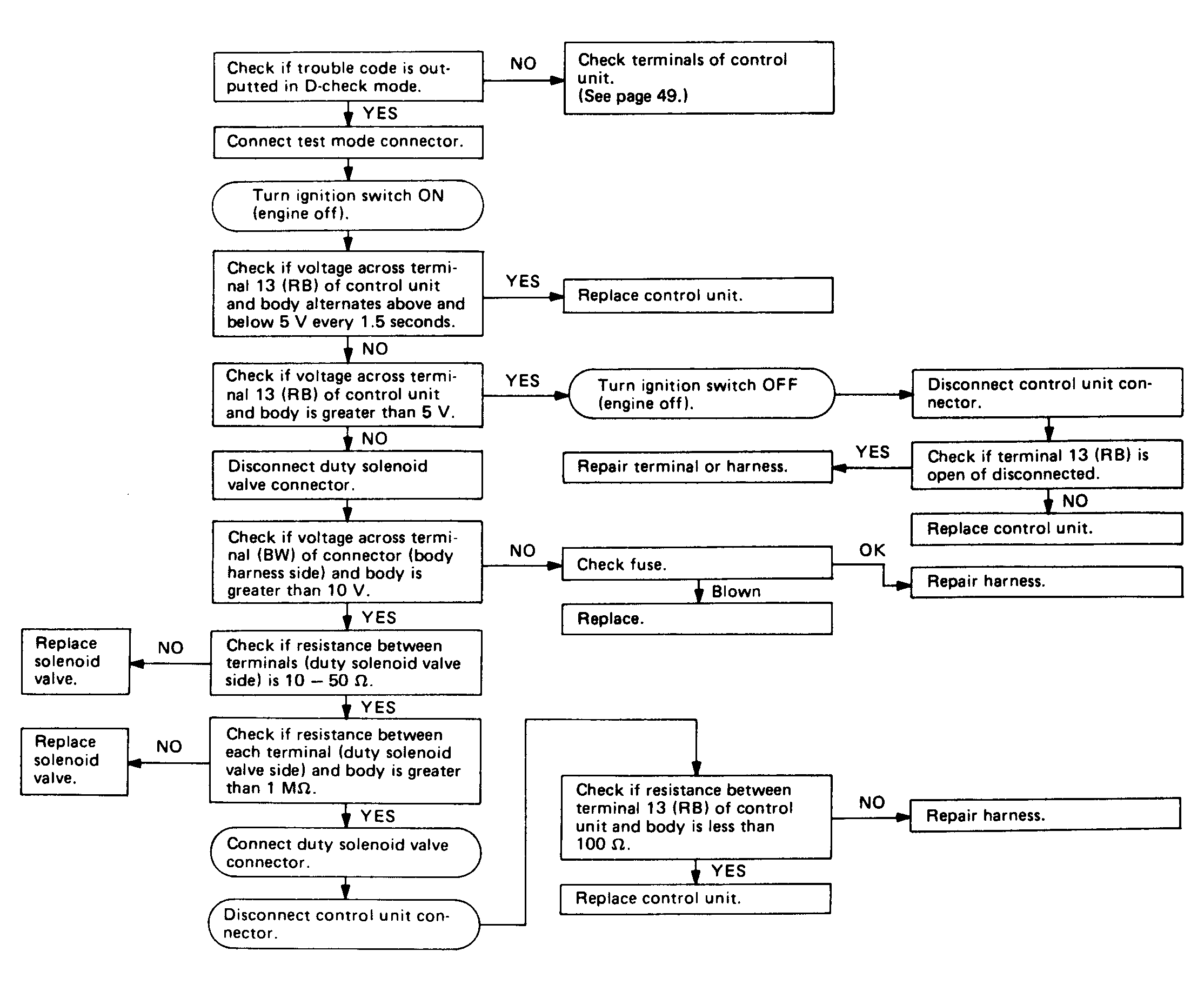

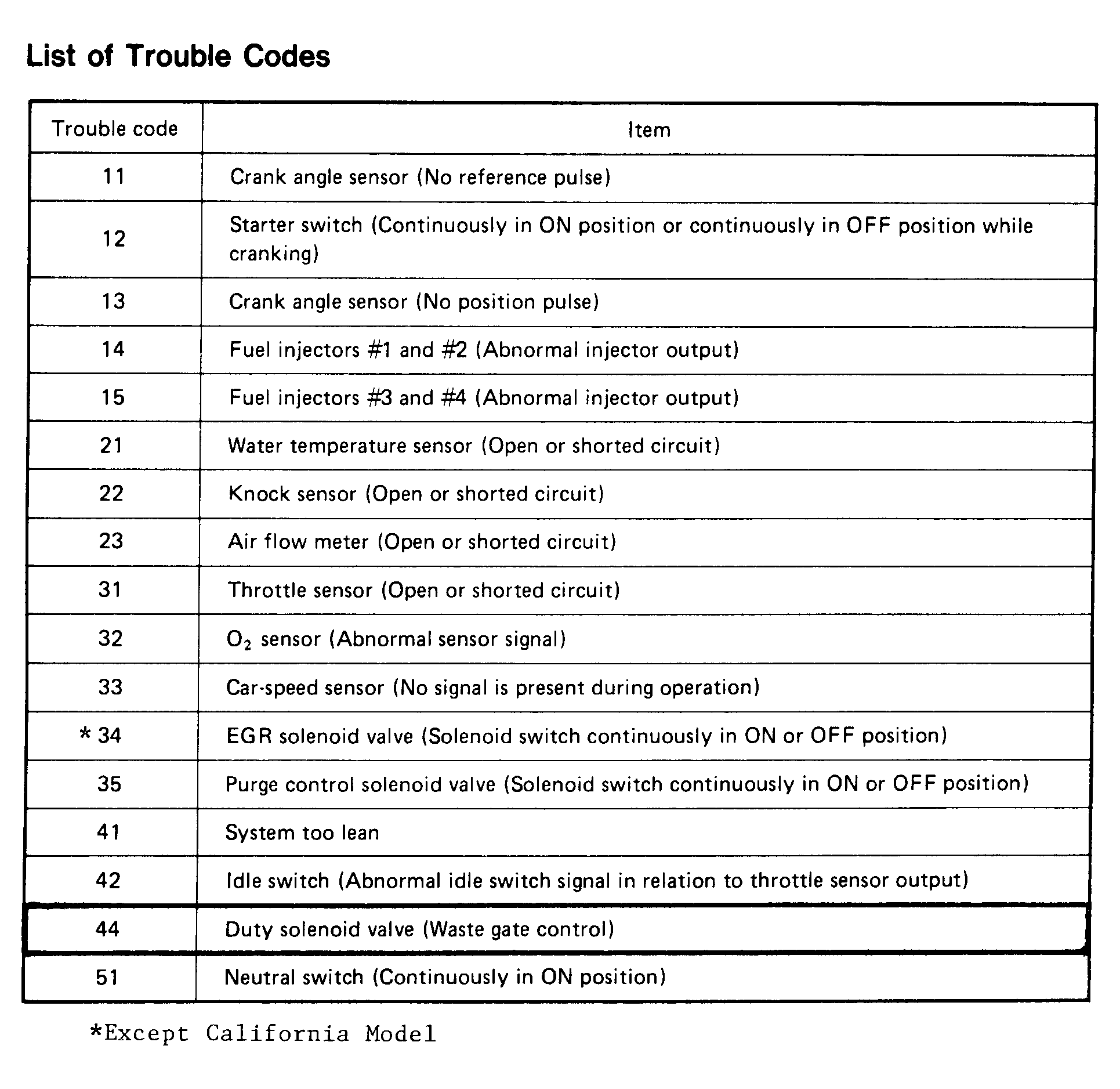

The list of trouble codes for the 1988 "L" Series vehicles has been updated to include Code 44. Fig 1 has the updated list of codes and Fig 2 and Fig 3 illustrate the wiring schematic and diagnostic flow chart.
