Basic Trouble Shooting
Basic Trouble Shooting

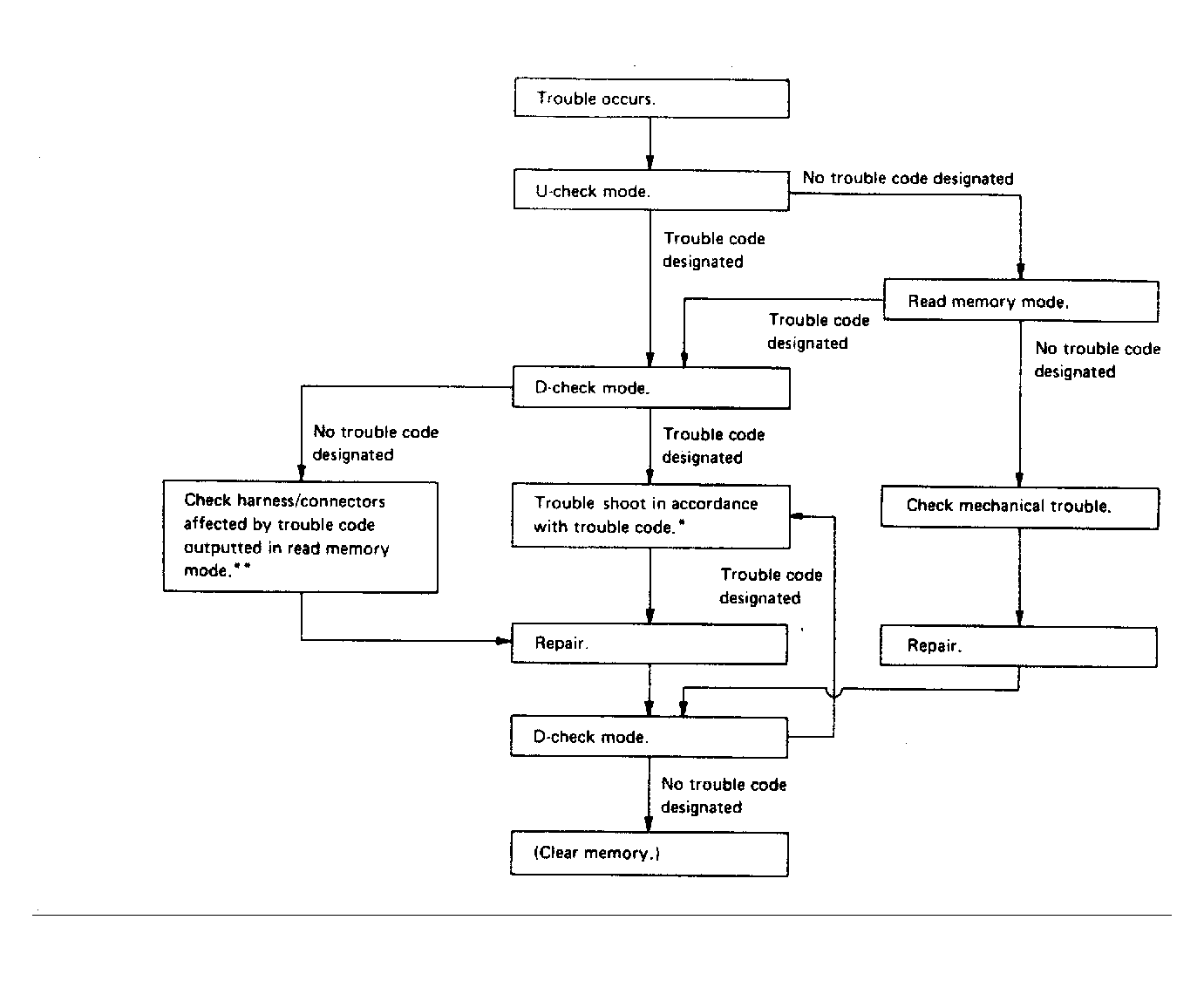

Fig 1: Flow Chart - Basic Trouble Shooting Procedures
Courtesy of SUBARU OF AMERICA
Courtesy of SUBARU OF AMERICA
