Code 15 - CFC System
Code 15 - CFC System

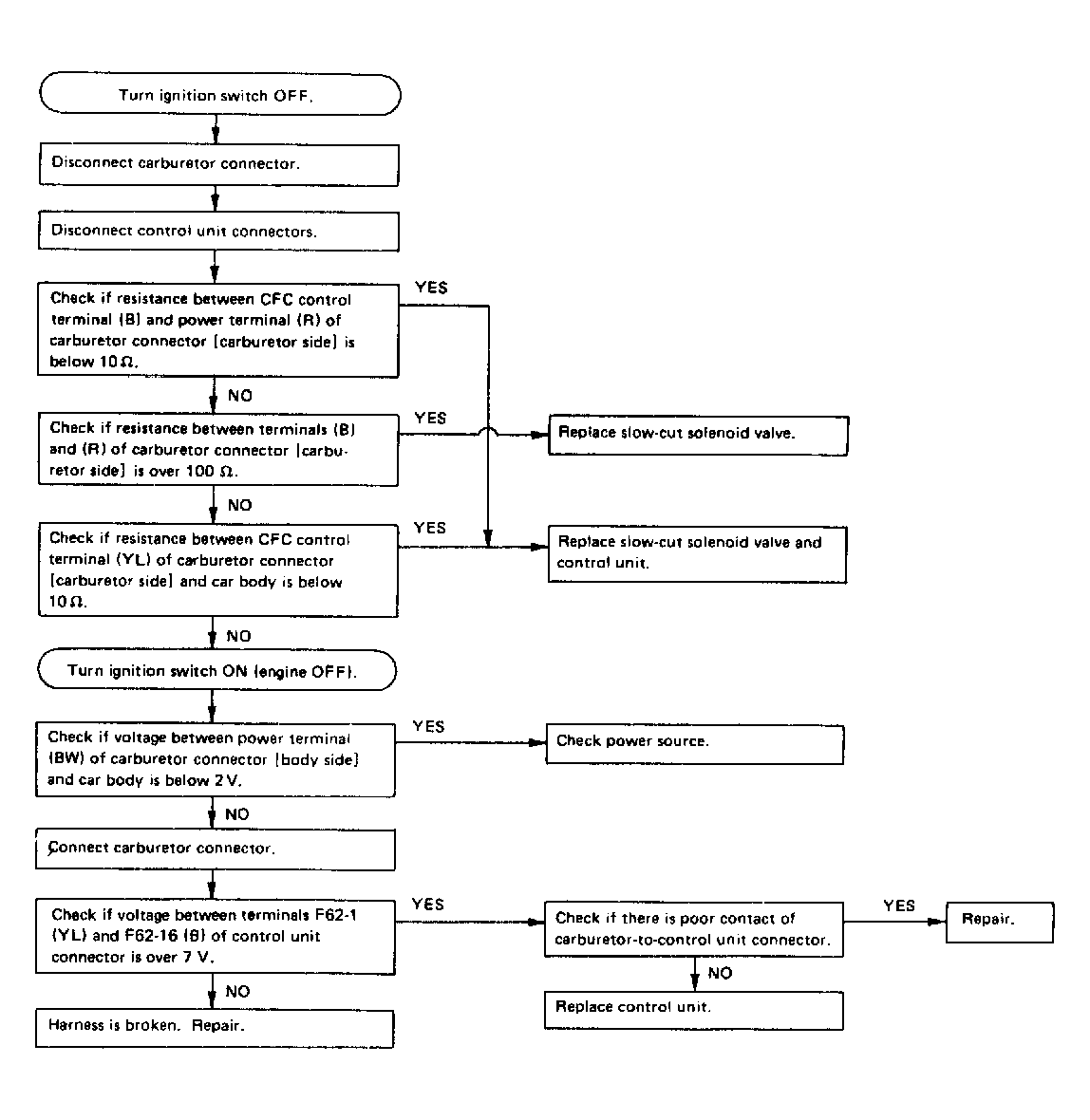

Fig 1: Flow Chart - Trouble Code 15: CFC System
Courtesy of SUBARU OF AMERICA
Fig 2: Wiring Schematic - Trouble Code 15: CFC System
Courtesy of SUBARU OF AMERICA
Courtesy of SUBARU OF AMERICA
Courtesy of SUBARU OF AMERICA
