Component Location

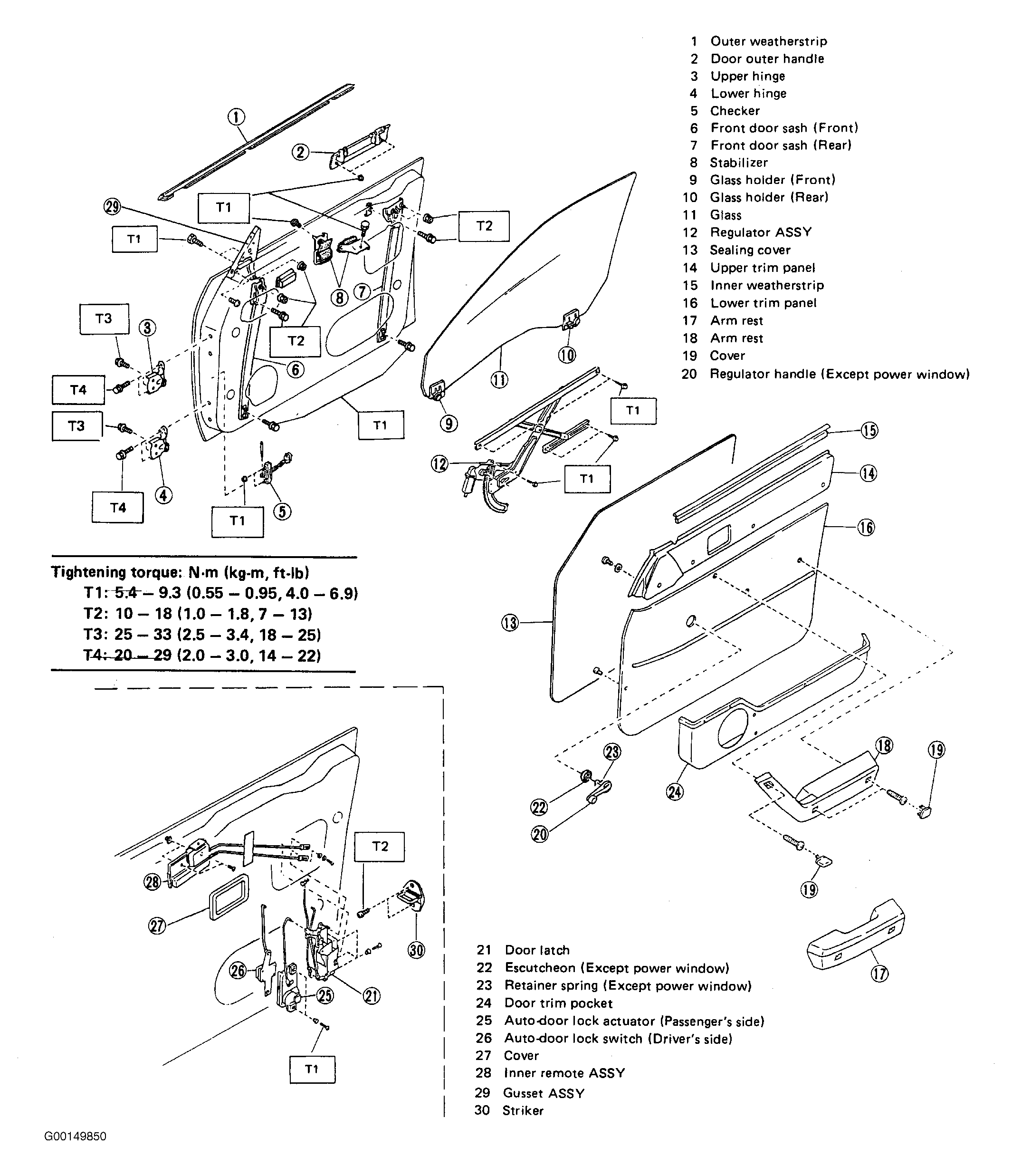

Fig 1: Exploded View Of Front Door

Courtesy of SUBARU OF AMERICA, INC.

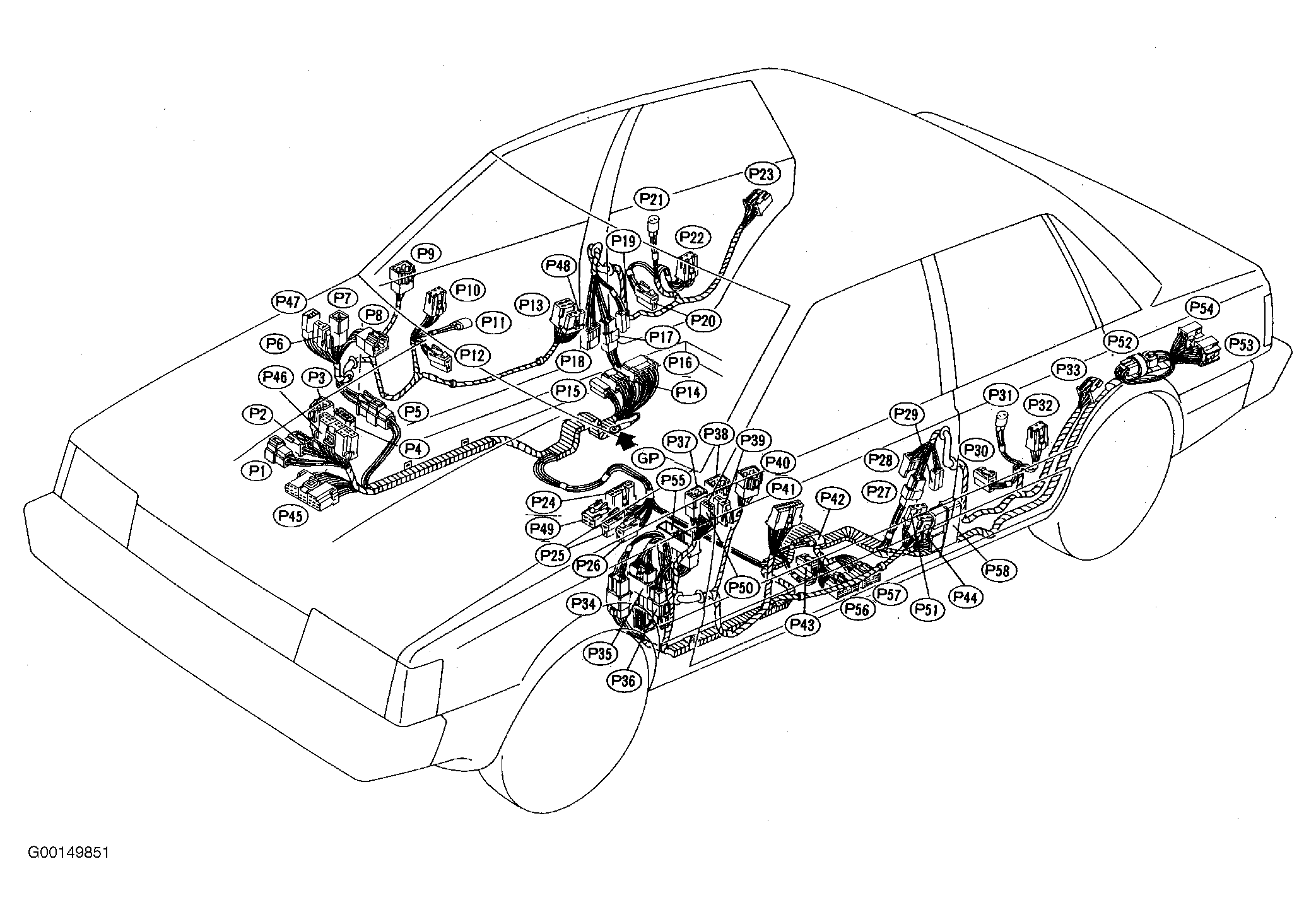

Fig 2: Power Window Main Wiring Harness & Connectors (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

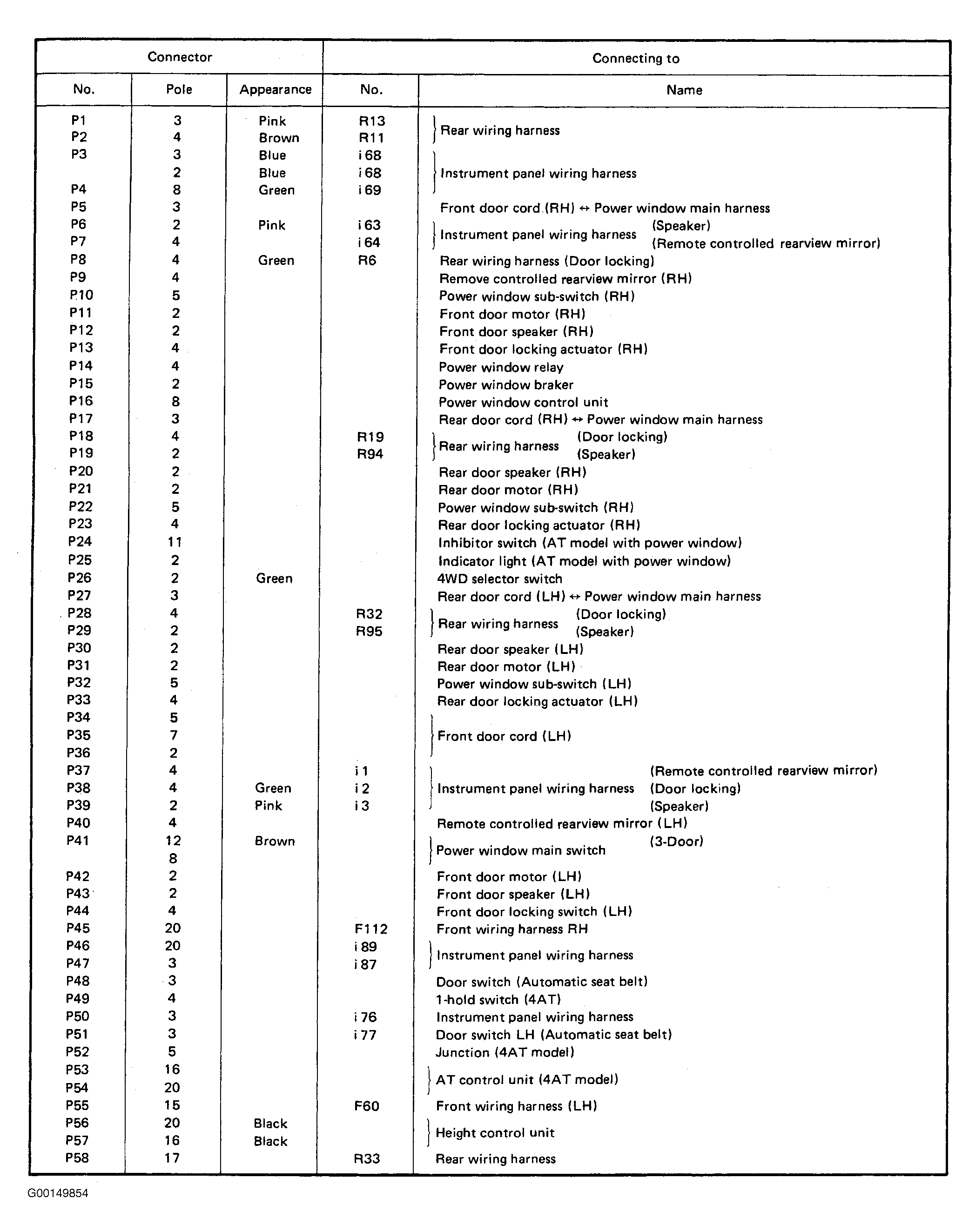

Fig 3: Power Window Main Wiring Harness & Connectors - Legend (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
