Code 15

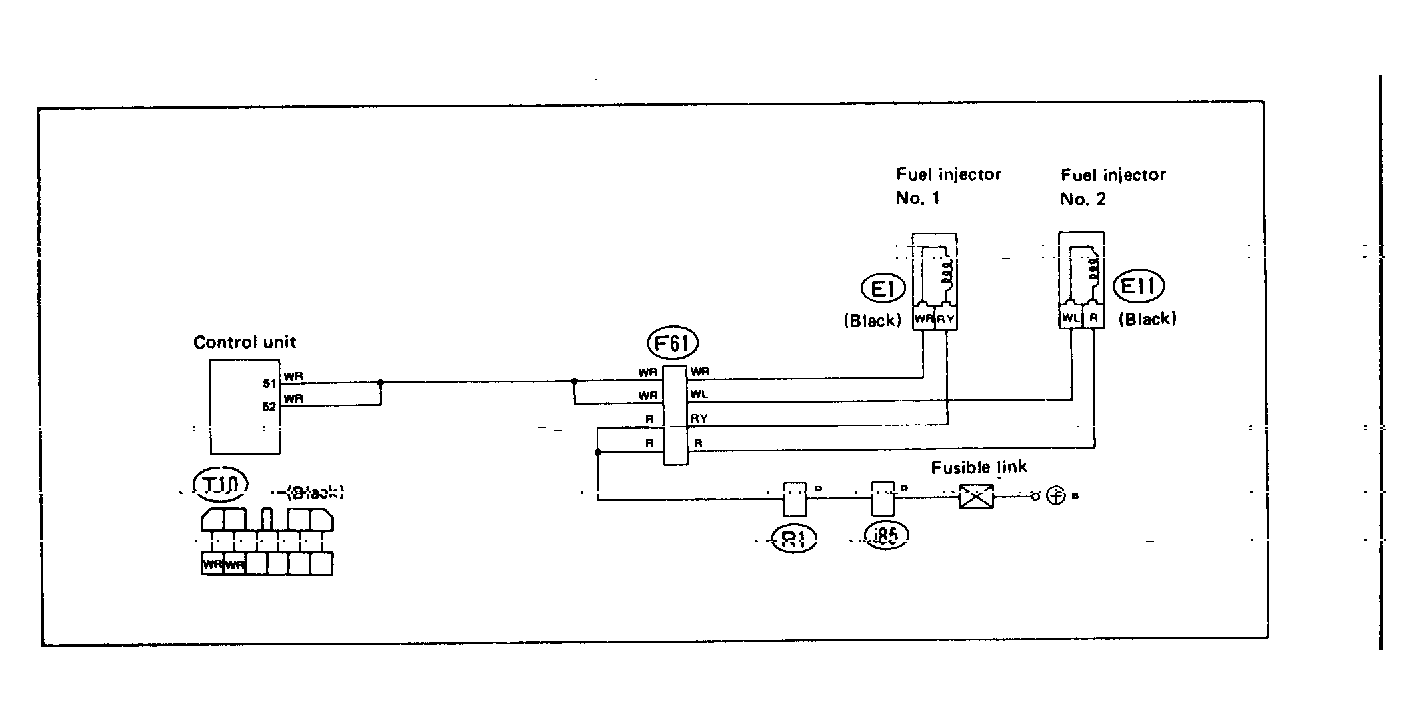

Fig 1: Trouble Code 15: Fuel Injector 1.8L Motor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

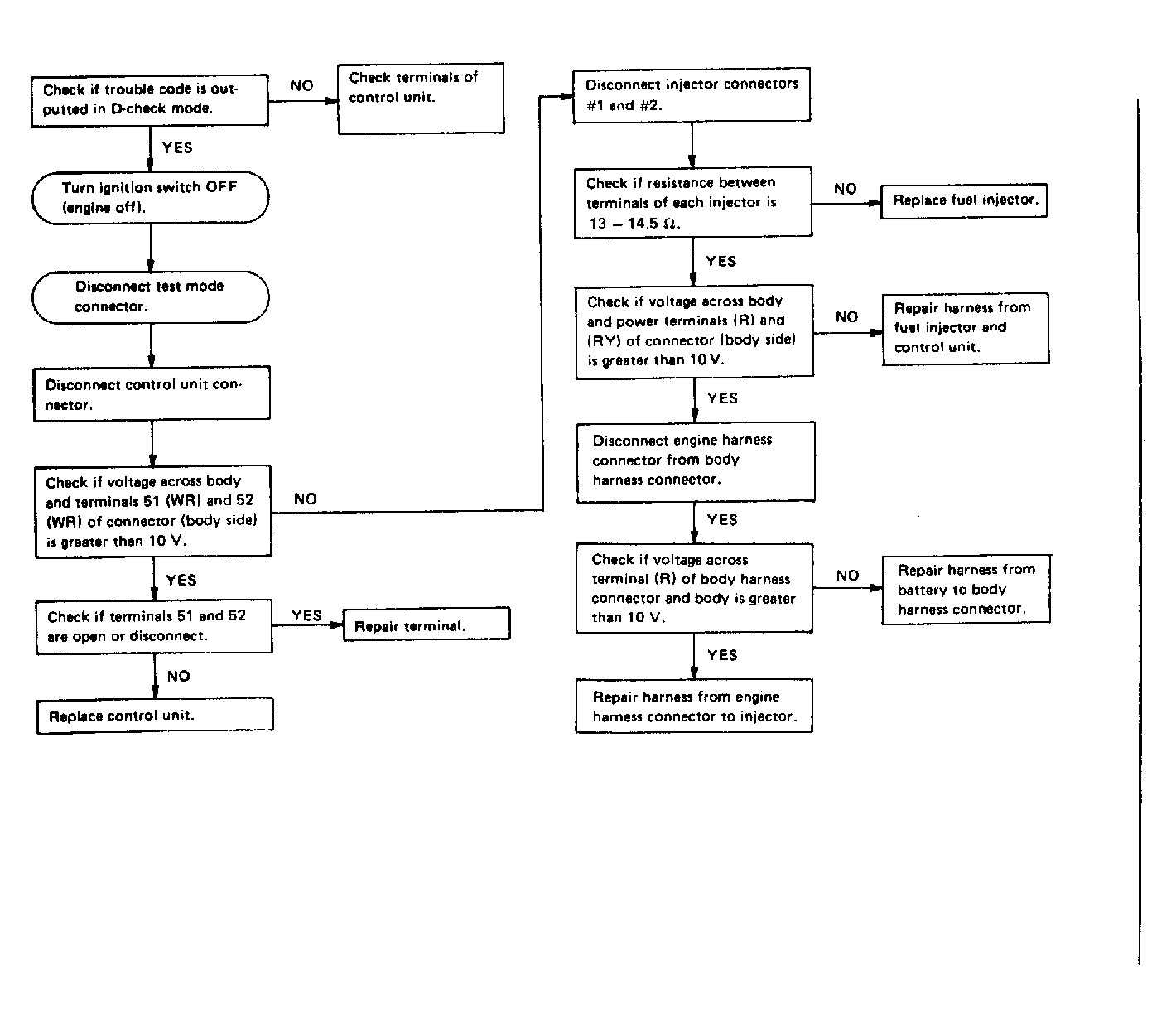

Fig 2: Trouble Code 15: Fuel Injector 1.8L Motor - Flow Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Trouble Code 15: Fuel Injector 2.7L Motor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

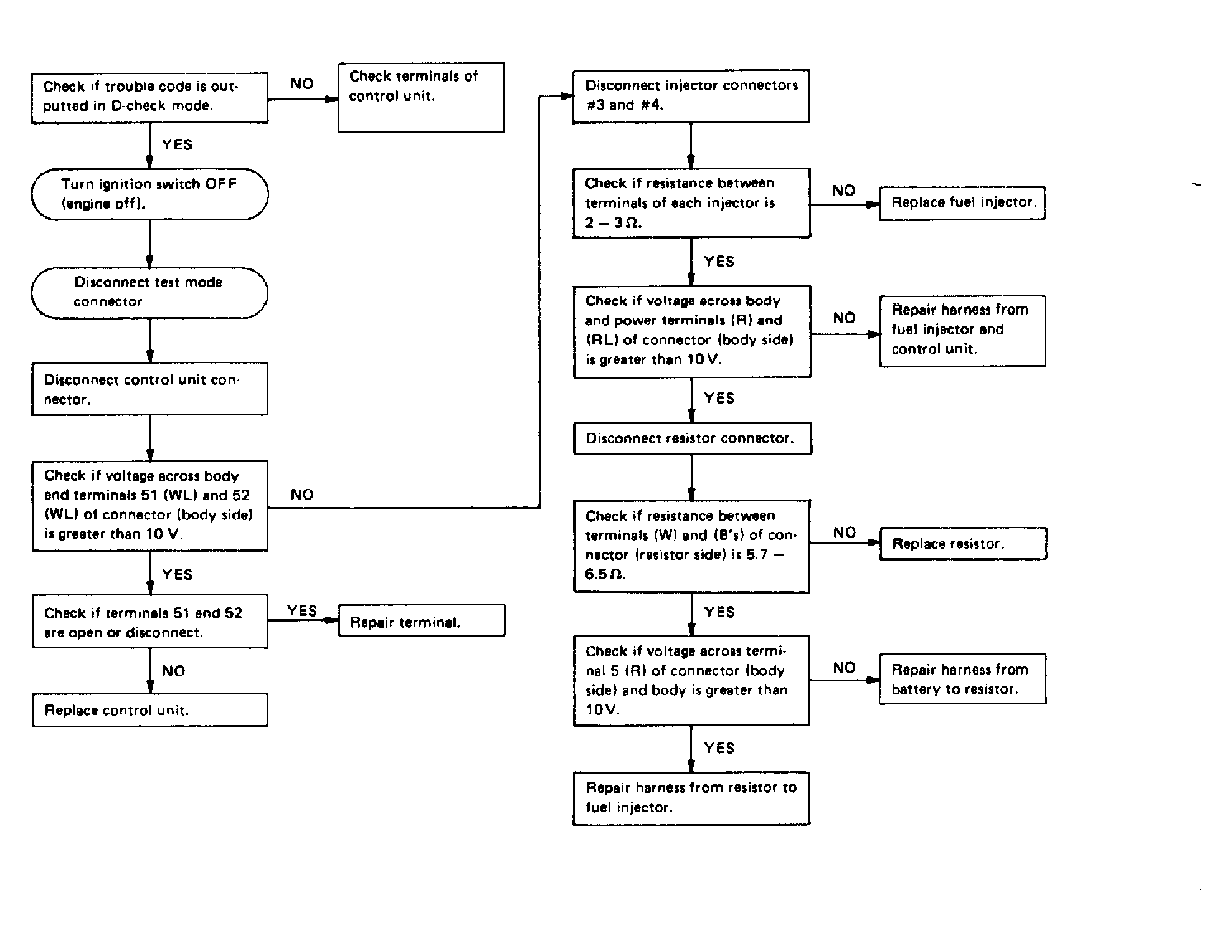

Fig 4: Trouble Code 15: Fuel Injector 2.7L Motor - Flow Chart

Courtesy of SUBARU OF AMERICA, INC.
