Code 21
Code 21
Fig 1: Trouble Code 21: Water Temperature Sensor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

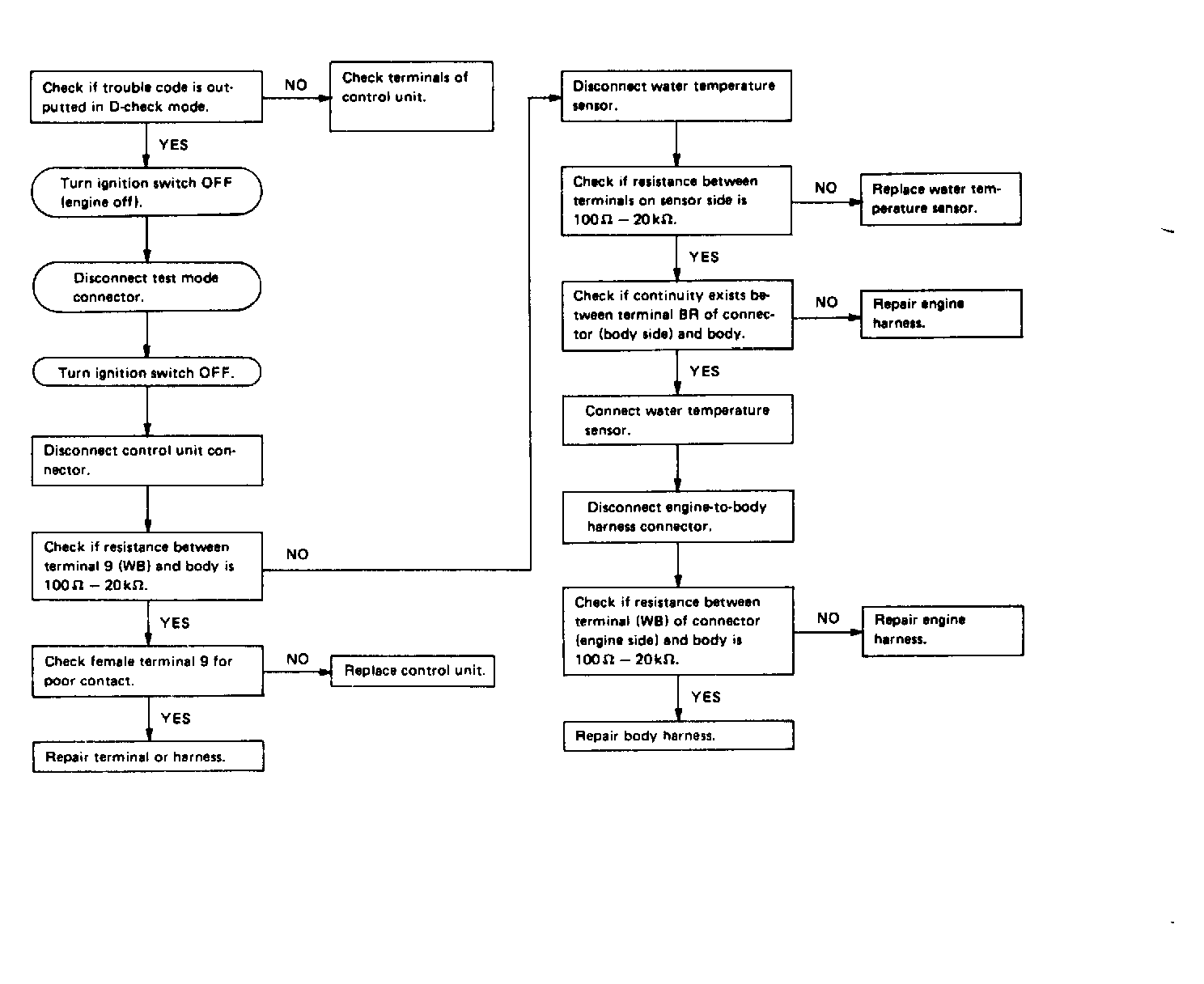

Fig 2: Trouble Code 21: Water Temperature Sensor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
