Code 23
Code 23
Fig 1: Trouble Code 23: Airflow Meter - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

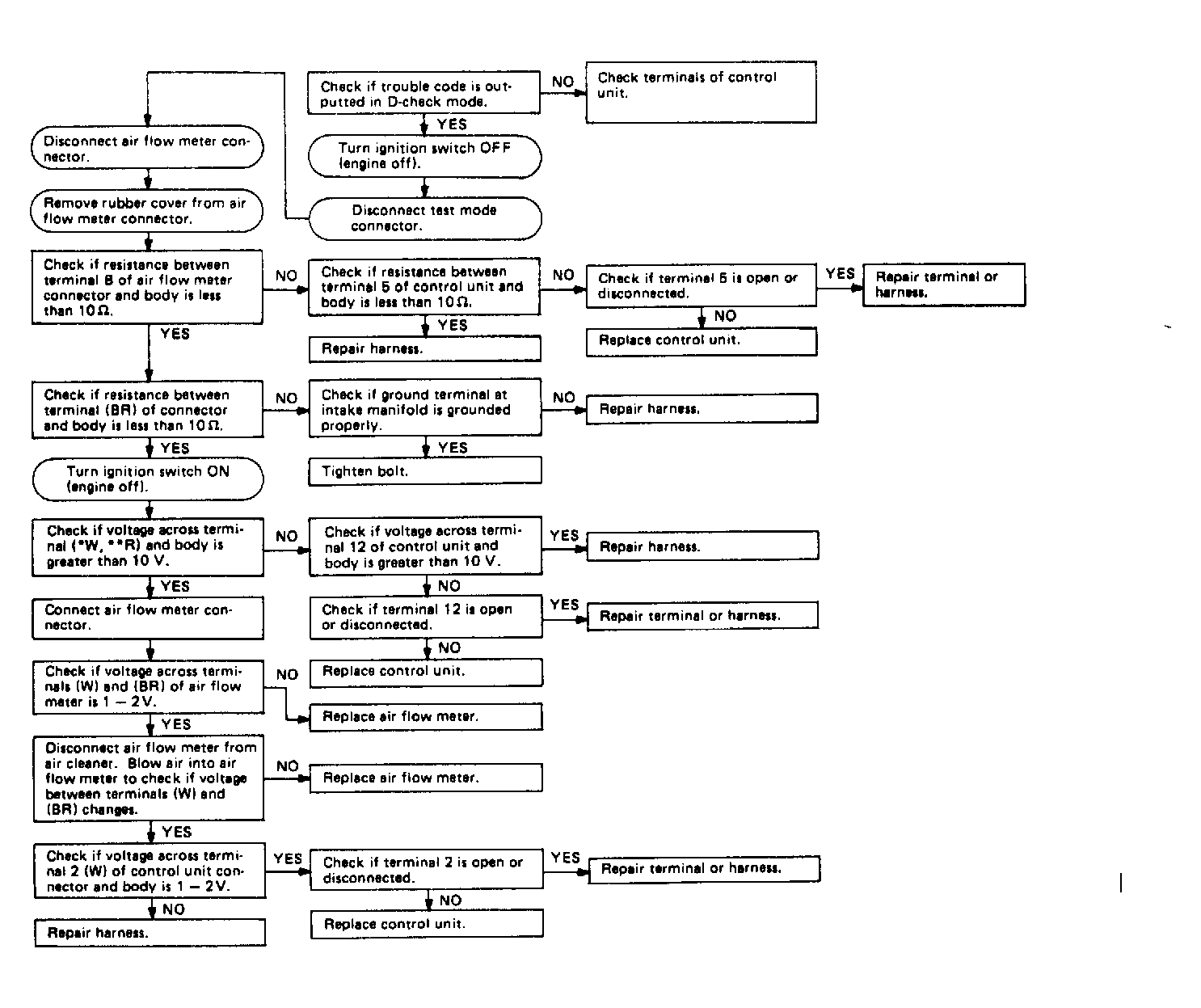

Fig 2: Trouble Code 23: Airflow Meter - Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
